Connecting Your Ultra5000
Grounding Your Ultra5000
We recommend that all equipment and components of a machine or
process system have a common earth ground point connected to their
chassis. A grounded system provides a safety ground path for short
circuit protection. Grounding your modules and panels minimize
shock hazard to personnel and damage to equipment caused by short
circuits, transient overvoltages, and accidental connection of
energized conductors to the equipment chassis. For CE grounding
requirements, refer to Appendix B.
Grounding Your System to the Subpanel

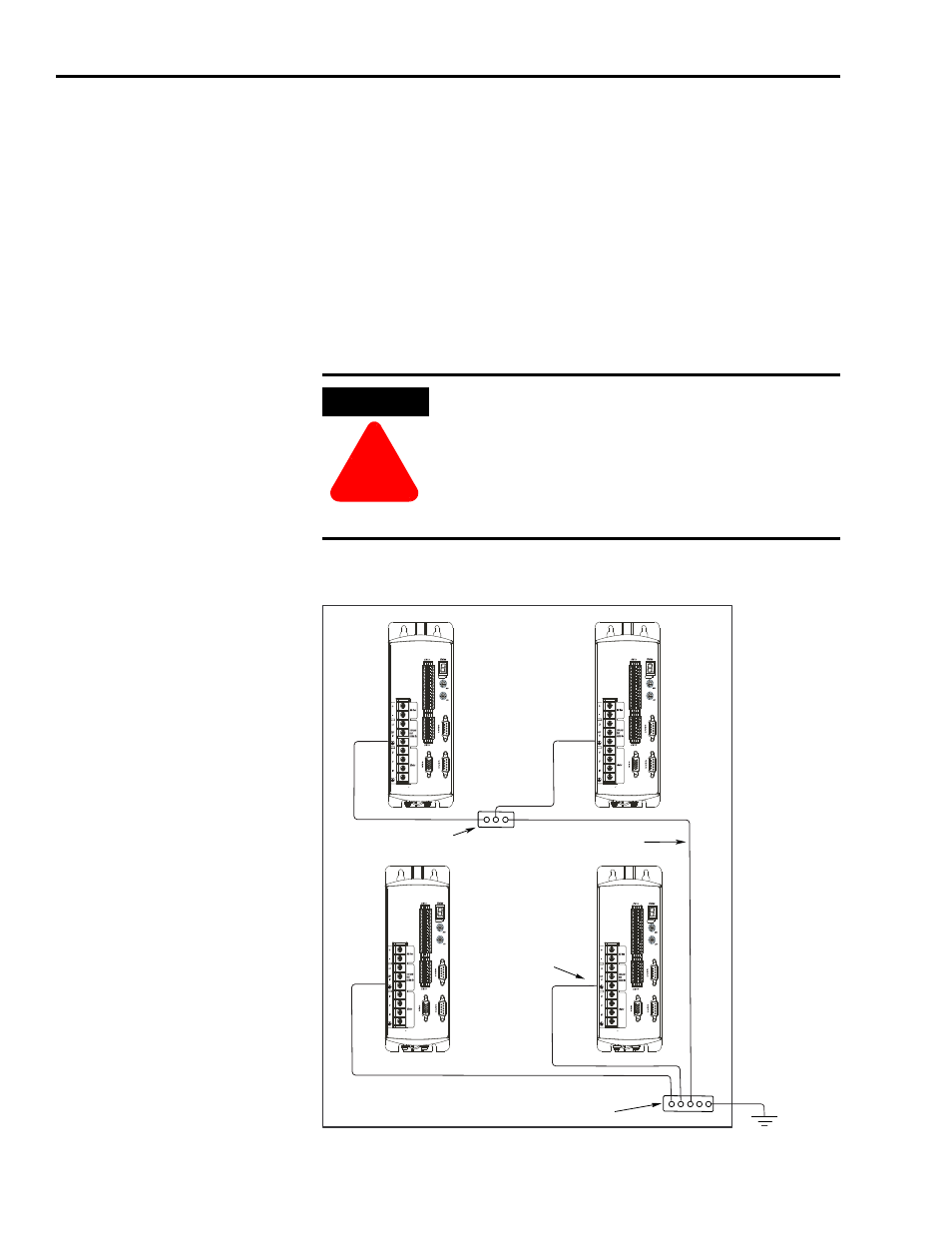

Figure 3.4
Safety Ground Configuration with Multiple Ultra5000 Systems on One Panel
ATTENTION
!
The National Electrical Code contains grounding
requirements, conventions, and definitions. Follow
all applicable local codes and regulations to safely
ground your system. Refer to the illustration below
for details on grounding your Ultra5000. Refer to
Appendix B for the power wiring diagram for your
Ultra5000 drive.
PWR
PWR
PWR
PWR
Bonded ground bar
(optional)
Safety ground
(terminal 5)
Bonded cabinet ground bus
All ground wiring must
comply with local codes
Ground grid or
power distribution
ground
Always follow
NEC and
applicable local
codes
Ultra5000 Intelligent
Positioning Drives
