Publication 2098-IN001E-EN-P — April 2002
Catalog Numbers and Accessories C-5
300 Watt Active Shunt Ferrites
Ferrites are used at both ends of the DC Bus wires for CE radiated
emissions compliance. Use the following table to select a ferrite
assembly.
2090 Series Passive Shunts
2090-Series of Passive Shunts compatible with 460V Ultra5000 drives
(i.e., -HV) are shown in the following table:

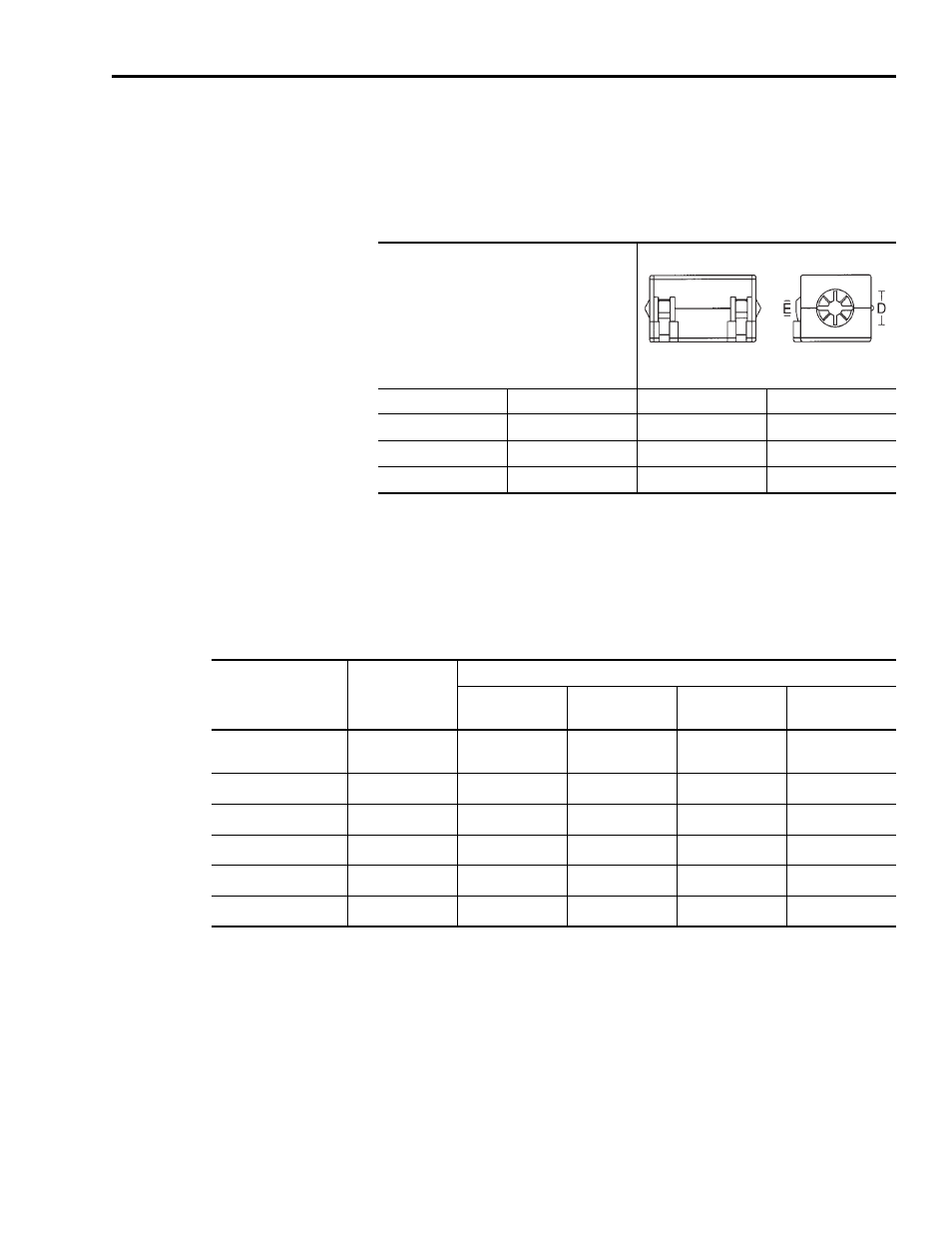

Box shaped ferrite assembly in fully
enclosed nylon case. End ports are
surrounded with flexible spring flutes to
grip a range of cable diameters from.125
to.500” (3.2 to 12.7mm).
FerriShield, Inc.
350 Fifth Avenue, Suite 7310
New York, NY 10118-7591
Mfg. Part/No. D E Impedance
SS28B2034 0.250 0.120 125
Ω
SS28B2037 0.350 0.200 154
Ω
SS28B2032 0.500 0.200 230
Ω
Applicable Drives Shunt
Catalog No.
Shunt Ratings:
Resistance 1 Peak Power @
460V
Peak Power @
230V
Power
Continuous
2098-IPD-HV030- xx
2098-IPD-HV050-
xx
2090-SR120-09 120 – 148 Ohms 5.3 kW
1.33 kW
2 900W
2098-IPD-HV100- xx 2090-SR040-09 40 – 51 Ohms 16.0 kW
4.0 kW
2 900W
2098-IPD-HV100-
xx
2090-SR040-18 40 – 49 Ohms 16.0 kW
4.0 kW
2 1800W
2098-IPD-HV150- xx 2090-SR025-09 25 – 32 Ohms 25.6 kW
6.4 kW
2 900W
2098-IPD-HV150- xx 2090-SR025-18 25 – 31 Ohms 25.6 kW
6.4 kW
2 1800W
2098-IPD-HV220-
xx
2090-SR020-36 20 – 25 Ohms 32.0 kW
8.0 kW
2 3600W
1 Tolerance = +20%, - 0%
2
Replacement of the 460V fuse with the supplied 230V fuse kit is required to convert these shunts for use with Ultra Series HV drives operating on
230V input power.
