Ultra5000 Connector Information
2-15
3 kW, 7.5 kW, and 15 kW Ultra5000
(2098-IPD-005-DN, -010-DN, and -020-DN)
Use the figure below to locate the front panel connections on the
230V Ultra5000 with DeviceNet drives (3 kW, 7.5 kW, and 15 kW).
Detailed descriptions of the connections are provided. Detailed
descriptions of the digital connections are provided on pages
. Power connections are provided on page
DeviceNet connections are provided on page

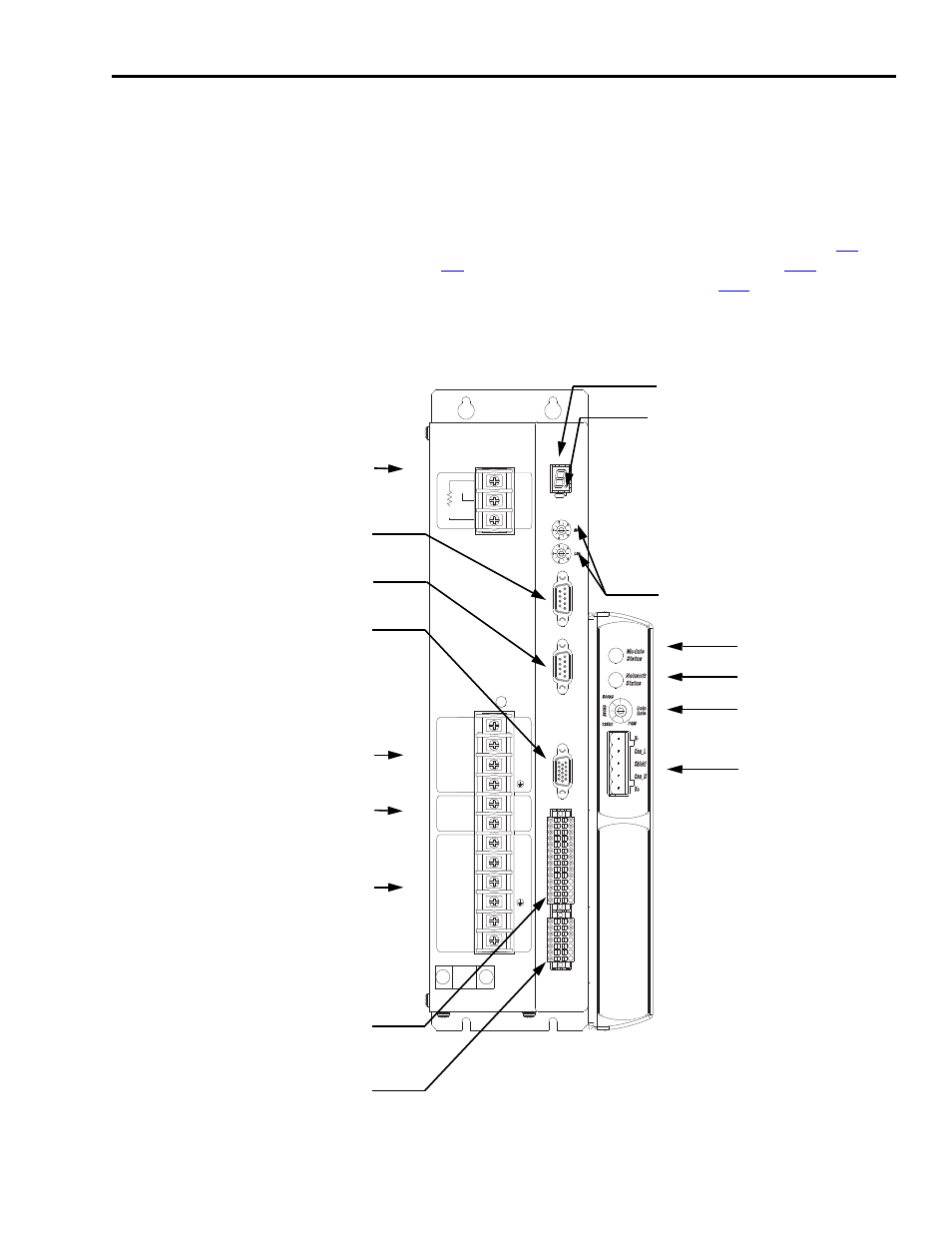

Figure 2.6
Ultra5000 with DeviceNet Front Panel Connections
for 2098-IPD-030-DN, -075-DN, and -150-DN
U
V
W
+
-
L1
L1
L2
L2
L1
L1
AUX
AUX
L2/N
L2/N
AUX
AUX
Motor
Motor
DC Bus
DC Bus
100-240 VAC
100-240 VAC
50/60 Hz
50/60 Hz
1
2
3
Internal
Internal
External
External
Shunt
Shunt
L3
L3
DC Bus
DC Bus
C
N
3
A
C
N
3
B
C
N
2
CN1A
CN1A
CN1B
CN1B
TB1
TB1
Status
Status
PWR
PWR
Node Address
Node Address
(00-63, PGM)
(00-63, PGM)
AUTOBAUD
AUTOBAUD
DeviceNet
DeviceNet
DeviceNet Interface
Data Rate
Switch
Module Status LED
Network Status LED
AC Input Power Terminals
Motor Power Terminals
DC Bus Terminals for
Shunt Resistor
Seven Segment
Status LED
Logic Power LED
CN3A 9-pin
Main Serial Port
Node Address
Selector Switches
CN3B 9-pin
Auxiliary Serial Port
DC Bus Terminals
CN2 15-pin
Motor Encoder
CN1A 28-pin
Digital I/O
CN1B 14-pin
Auxiliary Encoder
and Analog I/O
ote: 2098-IPD-030-DN
oes not have
3 power terminal.
