Ultra5000 shunt module information, 300 watt active shunt module, 200 watt passive shunt module – Rockwell Automation 2098-IPD-xxx Ultra5000 Intelligent Positioning Drives Installation Manual User Manual

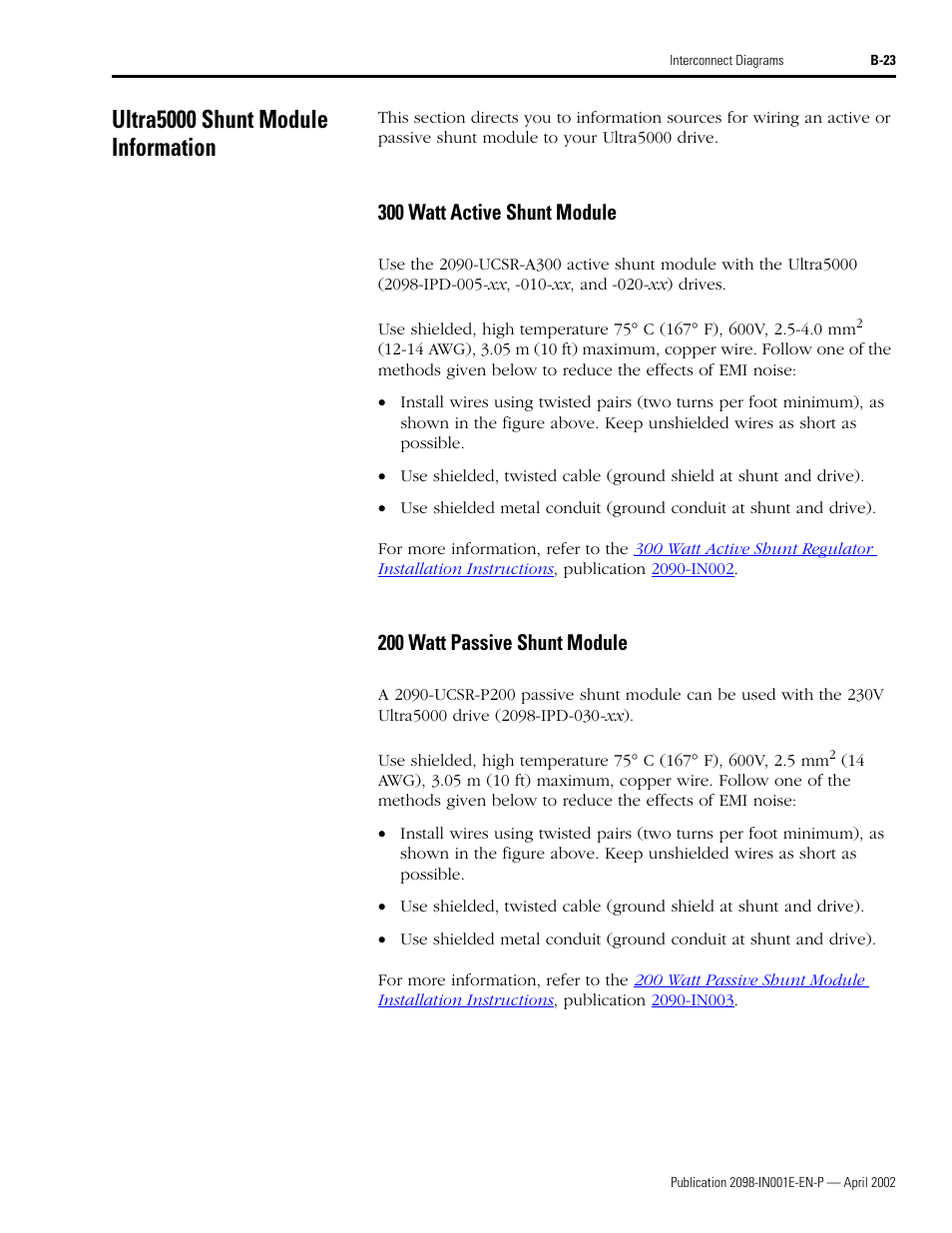

Page 135: 300 watt active, Shunt module
