Models FlexTest® IIm/GT/SE Controller Hardware
Model 493.02 Chassis
Introduction 26
Model 493.02 Chassis
FlexTest SE Controllers use the Model 493.02 Chassis. The Model 493.02
Chassis is a single-station, single-channel VMEbus chassis which, in a typical
configuration, houses three plug-in modules:
• A Series 498 Processor
• A Model 493.40 I/O Carrier module
• A Model 493.42 System I/O module
Model 493.02 Chassis
rear panel
Except for two front panel BNC connectors, all cabling is accessed through the
controller’s rear panel. It is not necessary to remove the chassis cover to access
jumpers or switches. The chassis can be rack mounted or used in a table-top
configuration.

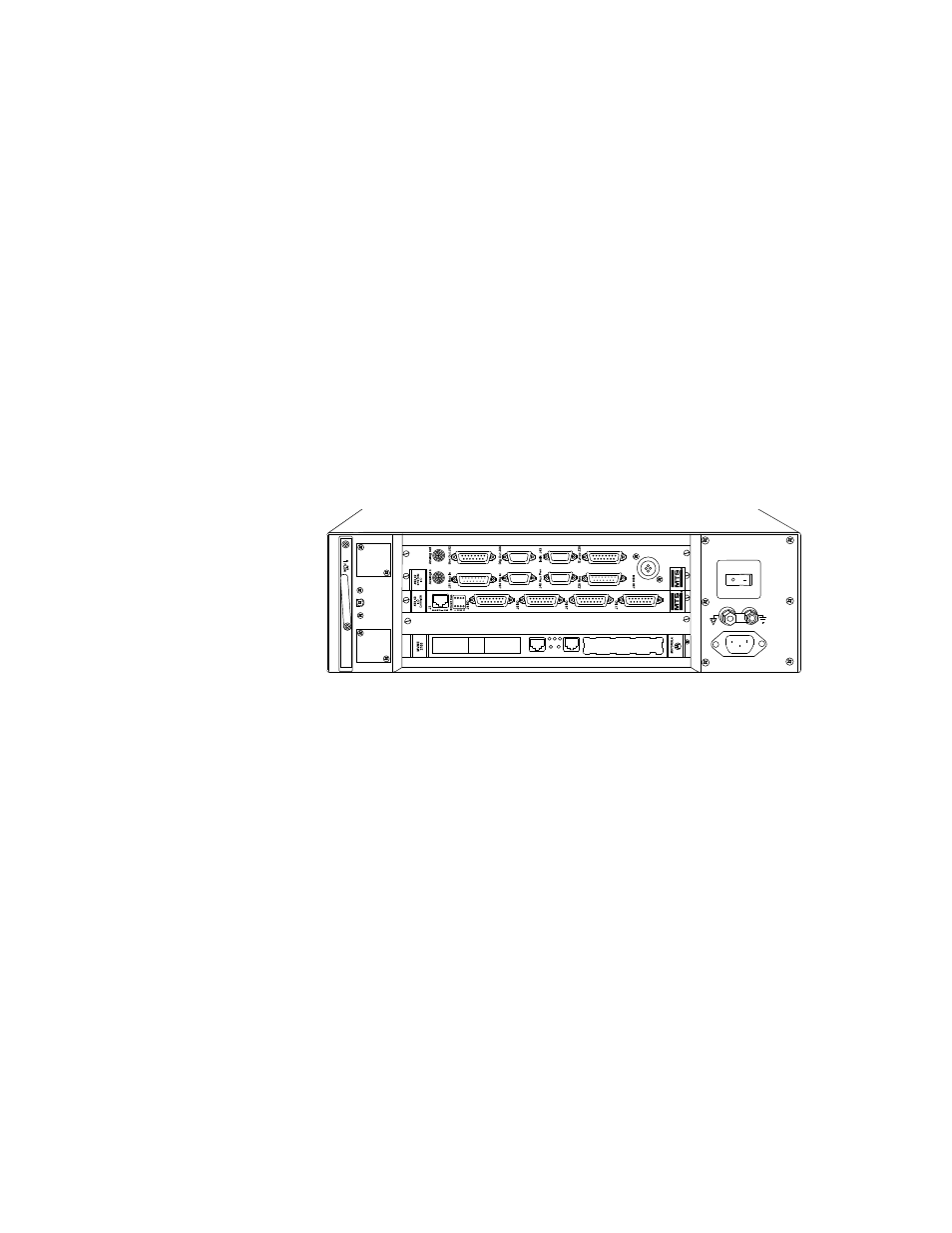

FlexTest SE Rear Panel
Hydraulic Control
The controller provides complete control of the test system hydraulics. It can be
used to control a hydraulic power unit and a hydraulic service manifold to apply
low and high hydraulic pressure to the test system. In multiple controller
configurations, the controller provides first-on/last-off control of the hydraulic
power unit in addition to control of a local hydraulic service manifold.
Interlocks
The controller provides interlocks for adjustable upper/lower limit, underpeak,
error detection for each sensor conditioner installed, and others. These interlocks
can be daisy-chained for multiple controller configurations.
TYPE E PC-MIP TYPE E PC-MIP
RUN 6TS BFL
ABT RST
DEBUG PCI MEZZANNE CARD
Power
100–240 VAC
50–60 Hz, 12–6A
TS-G435
