How to Program an External Controller
Models FlexTest® IIm/GT/SE Controller Hardware FlexTest IIm Controller Connections 205
2. If you will monitor sensor feedback for data acquisition or control feedback,
connect the external conditioner output to a Series 498 Input Filter
connector.
For conditioner output locations on various MTS devices, see “Sample
conditioner output connections” on page 207.
Do not interrupt FlexTest controller power when you are programming
another controller. A power interrupt may cause the external controller to
react to a zero command and move the actuator unexpectedly.
Ensure power cannot be removed accidently while a test is in progress.
Optional ADDA II
configuration
For the optional ADDA II configuration (using the Model 493.50 ADDA II
module), cable the analog inputs and outputs between the FlexTest controller and
the external controller as follows:
J11
(CH 1-4)
J12
(CH 5-8)
498
ANALOG
OUT
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8

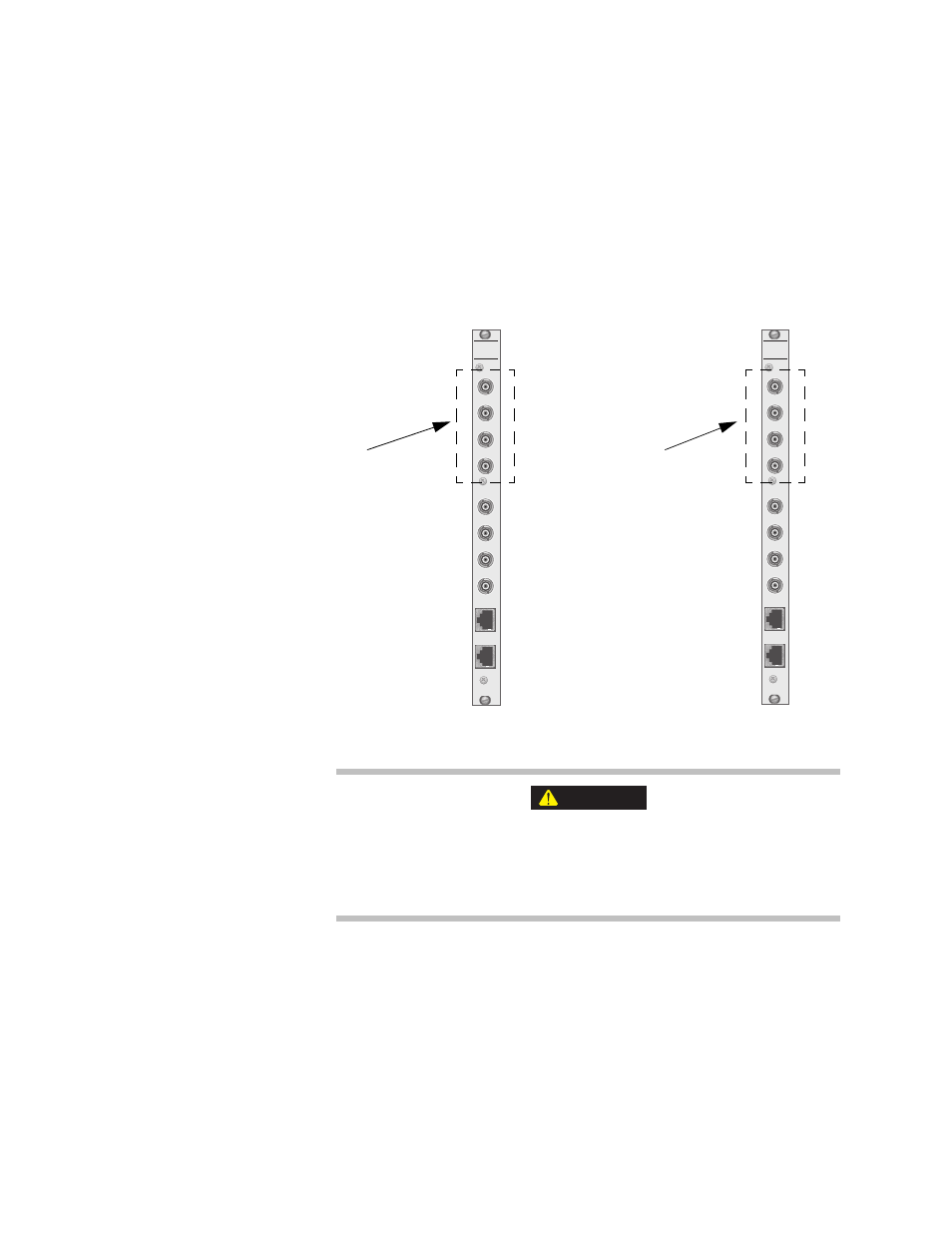

Transition modules on the back
of the Series 498 test processor
chassis are used for analog
inputs and outputs.
J11
(CH 1-4)
J12
(CH 5-8)
498
INPUT
FILTER
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
498 Input Filter
This module includes 8 BNC
connectors that provide
filtered analog inputs to the
498.65 ADDA module.
Four analog inputs are
available with the standard
ADDA module. The other
four inputs require a second
ADDA module. 498 Analog Out
This module includes 8 BNC
connectors that provide analog
outputs from the 498.65 ADDA
module.
Four analog outputs are
available with the standard
ADDA module. The other four
outputs require a second
ADDA module.
WARNING
