Models FlexTest® IIm/GT/SE Controller Hardware
Eurotherm Temperature Controller Connection
FlexTest SE Controller Connections 240
Cabling the
temperature controller

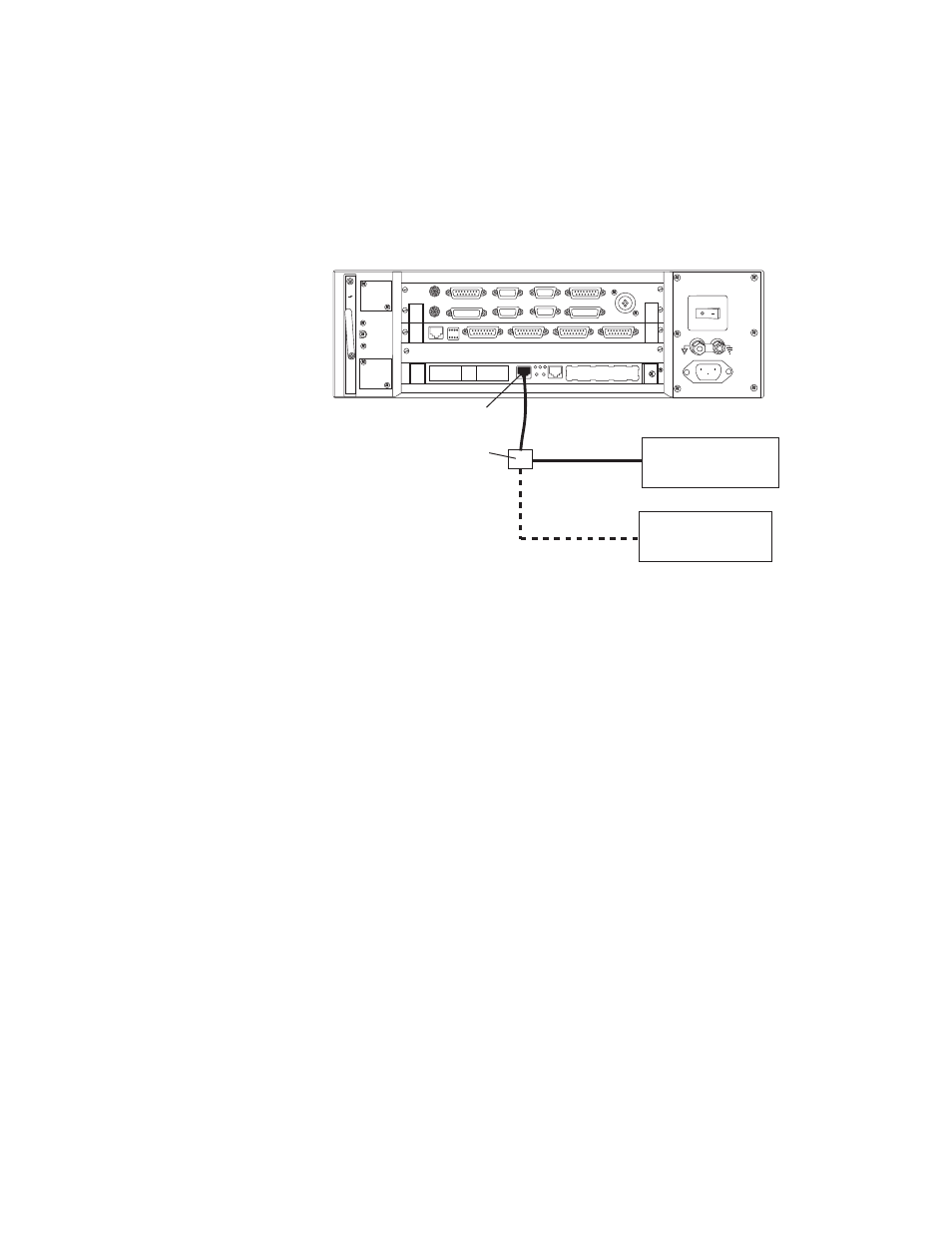

Two cables and an RS 232/RS 485 converter are required to connect the FlexTest
SE Controller to a temperature controller, as shown.
100-112-652
RS232/RS485
Converter
(100-112-820)
056-719-6xx
m
MVME 2100
493.40 I/O
CARRIER
493.42 SYSTEM I/O
MOT
OROLA
J28 HSM J25 Hpu
E-stop J29
J49 Aux Pwr
Intlk J43
J54 Dig In
Dig Out J55
J51 Box In
Box Out J52
Analog In
Analog out
J3 S E R V I C E SHUNT CAL 1 2 3 4 J4 I/O J5 I/O J6 I/O J7 I/O
TYPE E PC-MIP TYPE E PC-MIP
RUN 6TS BFL
ABT RST
DEBUG PCI MEZZANNE CARD
Power
100–240 VAC
50–60 Hz, 12–6A
AIR FLOW
m
Debug Serial Port
OR
056-719-7xx
Eurotherm Temperature
Controller
(651 Chamber)
409.83
Temperature
Controller
