Models FlexTest® IIm/GT/SE Controller Hardware
ADDA II Connections
FlexTest GT Controller Connections 128
ADDA II Universal

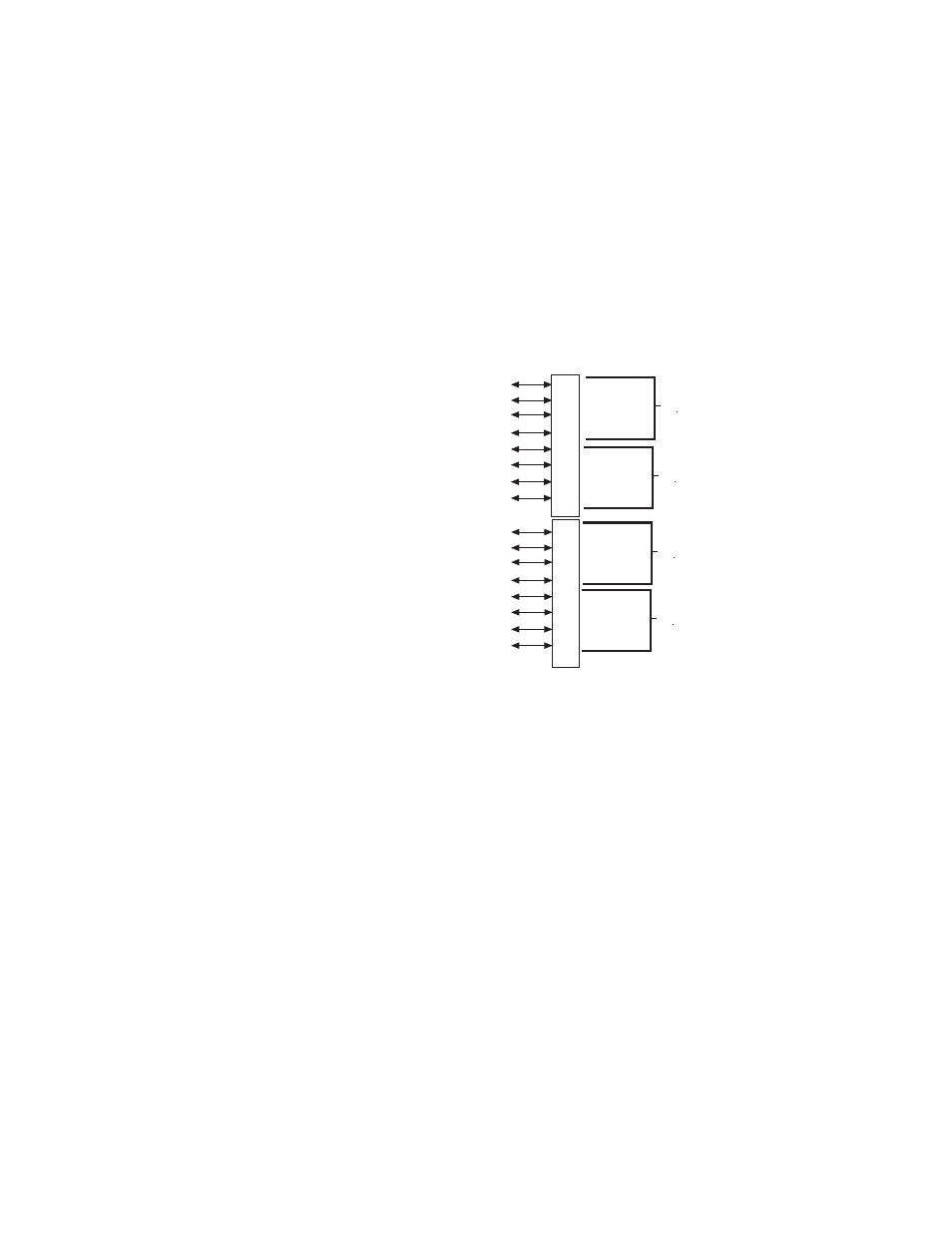

Encoder connections
Each encoder requires a Model 493.59 Universal Encoder mezzanine card
installed on the Model 493.50 ADDA II module.
Up to four encoders can be connected to the Model 493.80 ADDA II Encoder
Transition module when the Model 493.50 ADDA II module is fully populated
with Universal Encoder cards.
J 1 1 , J 1 3
J 1 5 , J 1 7
J 1 2 , J 1 4
J 1 6 , J 1 8
Input 4
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 3
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 2
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 1
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
To/From
Encoder Transition
Module
1
2
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
