Connecting interlock signals to 407 controllers, Connecting interlock, Signals to 407 controllers – MTS Model FlexTest SE User Manual

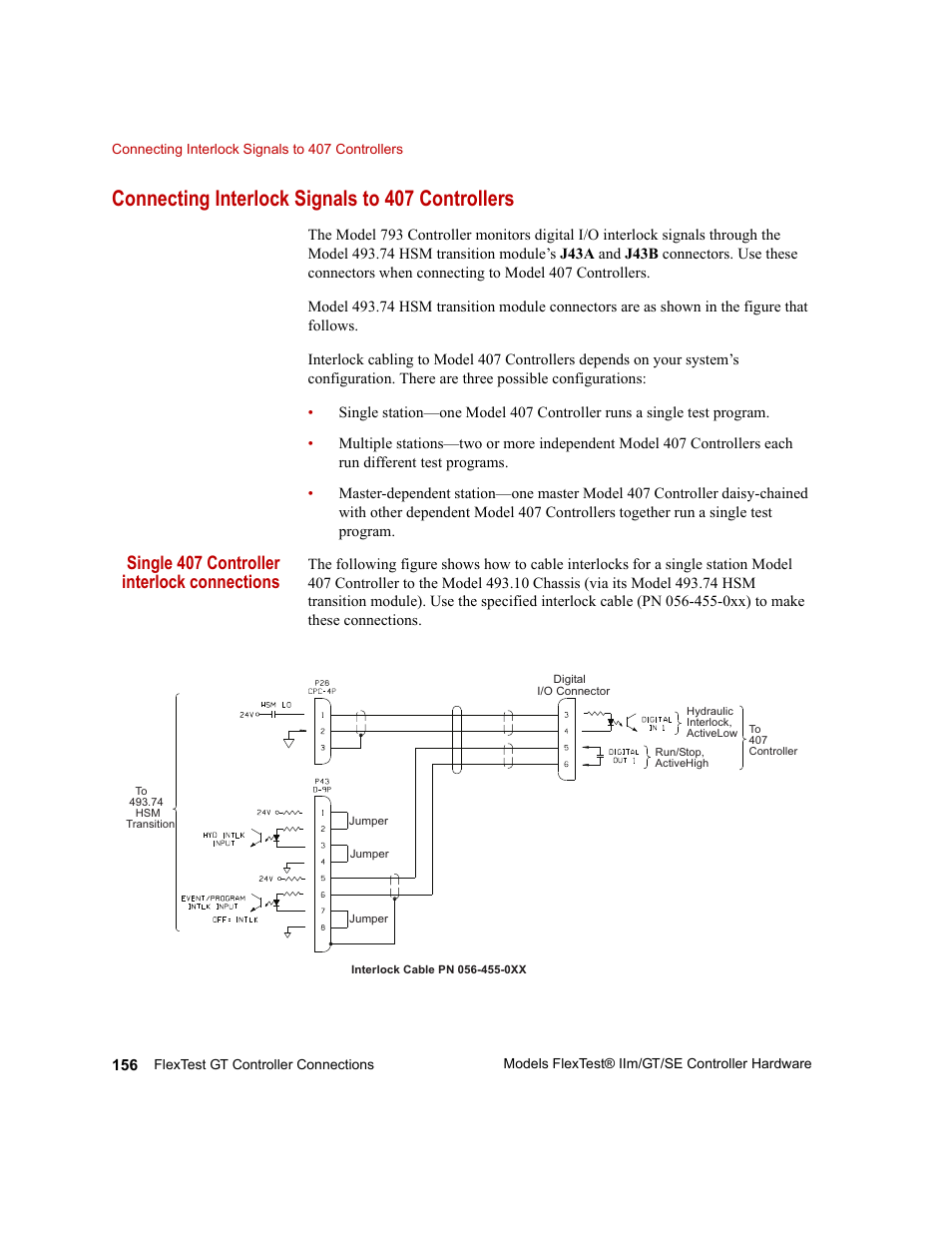

Page 156: Single 407 controller interlock connections
