Spare parts for system cables
Encoder cables
14
l
853 EDSYPFLD EN 8.0

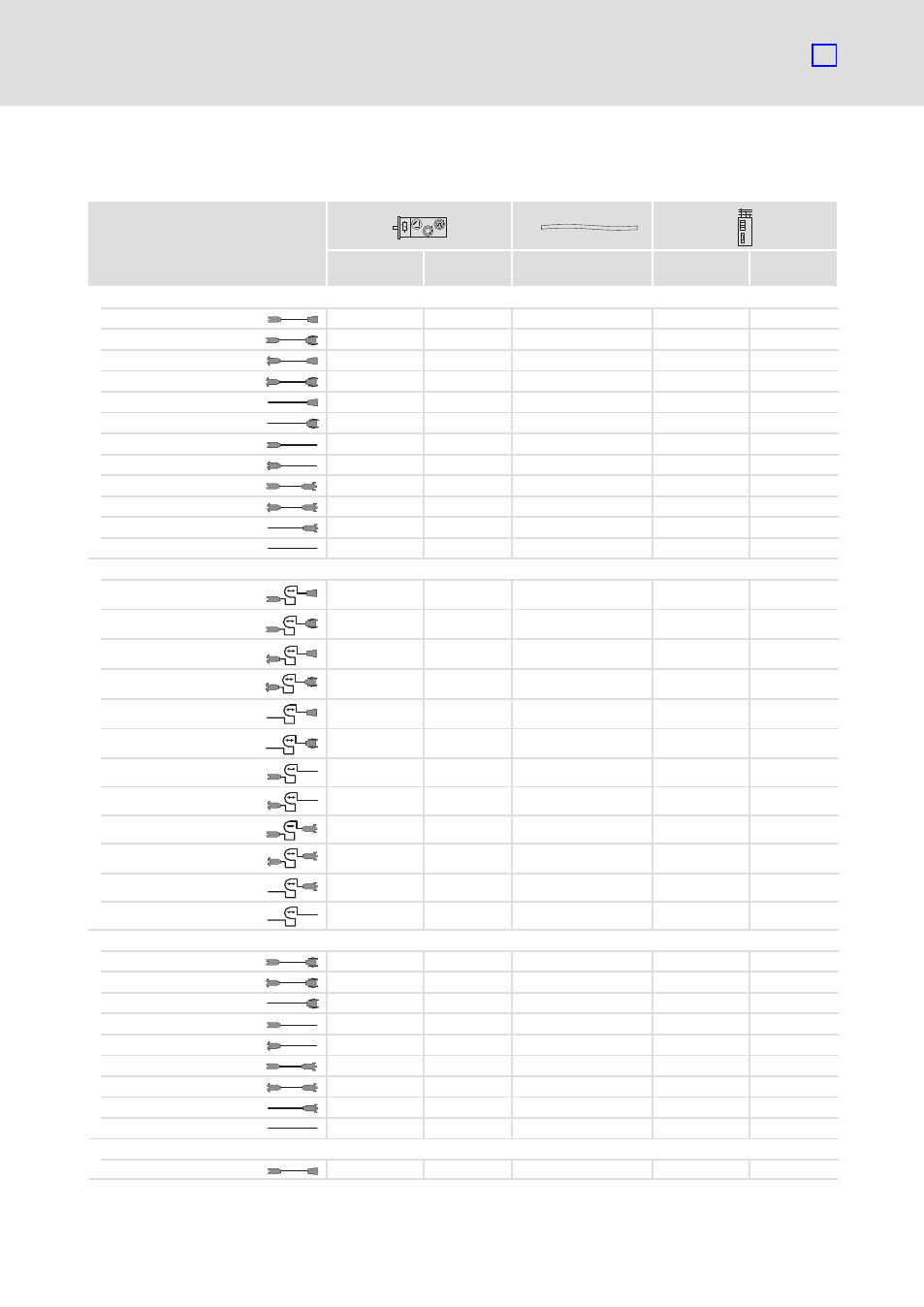

14.4 Encoder cables
System cable
Plug−in
connector
Spare contact System cable
Plug−in
connector
Spare contact
EYF0018...
EYF0018AxxxxF02W02 EWS0010 EWZ0053 EYF0018YxxxxA00A00 EWZ0049 –
EYF0018AxxxxF02S03 EWS0010 EWZ0053 EYF0018YxxxxA00A00 EWZ0048 –
EYF0018AxxxxF06W02 EWS1010 EWZ0053 EYF0018YxxxxA00A00 EWZ0049 –
EYF0018AxxxxF06S03 EWS1010 EWZ0053 EYF0018YxxxxA00A00 EWZ0048 –
EYF0018AxxxxA00W02 – – EYF0018YxxxxA00A00 EWZ0049 –
EYF0018AxxxxA00S03 – – EYF0018YxxxxA00A00 EWZ0048 –
EYF0018AxxxxF02A00 EWS0010 EWZ0053 EYF0018YxxxxA00A00 – –
EYF0018AxxxxF06A00 EWS1010 EWZ0053 EYF0018YxxxxA00A00 – –
EYF0018VxxxxF02G07 EWS0010 EWZ0053 EYF0018YxxxxA00A00 EWS1011 EWZ0058
EYF0018VxxxxF06G07 EWS1010 EWZ0053 EYF0018YxxxxA00A00 EWS1011 EWZ0058
EYF0018VxxxxA00G07 – – EYF0018YxxxxA00A00 EWS1011 EWZ0058
EYF0018YxxxxA00A00 – – EYF0018YxxxxA00A00 – –
EYF0019...
EYF0019AxxxxF02W04 EWS0010 EWZ0053 EYF0019YxxxxA00A00 EWZ0070 –
EYF0019AxxxxF02S03 EWS0010 EWZ0053 EYF0019YxxxxA00A00 EWZ0048 –
EYF0019AxxxxF06W04 EWS1010 EWZ0053 EYF0019YxxxxA00A00 EWZ0070 –
EYF0019AxxxxF06S03 EWS1010 EWZ0053 EYF0019YxxxxA00A00 EWZ0048 –
EYF0019AxxxxA00W04 – – EYF0019YxxxxA00A00 EWZ0070 –
EYF0019AxxxxA00S03 – – EYF0019YxxxxA00A00 EWZ0048 –
EYF0019AxxxxF02A00 EWS0010 EWZ0053 EYF0019YxxxxA00A00 – –
EYF0019AxxxxF06A00 EWS1010 EWZ0053 EYF0019YxxxxA00A00 – –
EYF0019VxxxxF02G07 EWS0010 EWZ0053 EYF0019YxxxxA00A00 EWS1011 EWZ0058
EYF0019VxxxxF06G07 EWS1010 EWZ0053 EYF0019YxxxxA00A00 EWS1011 EWZ0058
EYF0019VxxxxA00G07 – – EYF0019YxxxxA00A00 EWS1011 EWZ0058
EYF0019YxxxxA00A00 – – EYF0019YxxxxA00A00 – –
EYF0021...
EYF0021AxxxxF03S03 EWS0017 EWZ0053 EYF0021YxxxxA00A00 EWZ0048 –
EYF0021AxxxxF07S03 EWS1017 EWZ0053 EYF0021YxxxxA00A00 EWZ0048 –
EYF0021AxxxxA00S03 – – EYF0021YxxxxA00A00 EWZ0048 –
EYF0021AxxxxF03A00 EWS0017 EWZ0053 EYF0021YxxxxA00A00 – –
EYF0021AxxxxF07A00 EWS1017 EWZ0053 EYF0021YxxxxA00A00 – –
EYF0021VxxxxF03G08 EWS0017 EWZ0053 EYF0021YxxxxA00A00 EWS1018 EWZ0058
EYF0021VxxxxF07G08 EWS1017 EWZ0053 EYF0021YxxxxA00A00 EWS1018 EWZ0058
EYF0021VxxxxA00G08 – – EYF0021YxxxxA00A00 EWS1018 EWZ0058
EYF0021YxxxxA00A00 – – EYF0021YxxxxA00A00 – –
EYF0023...
EYF0023AxxxxF04S06 EWS0023 EWZ0053 EYF0023YxxxxA00A00 EWZ0063 –
