How to select your system cable
Motor cables
Extension cable
4
l
62 EDSYPFLD EN 8.0
4.1.4 Extension cable

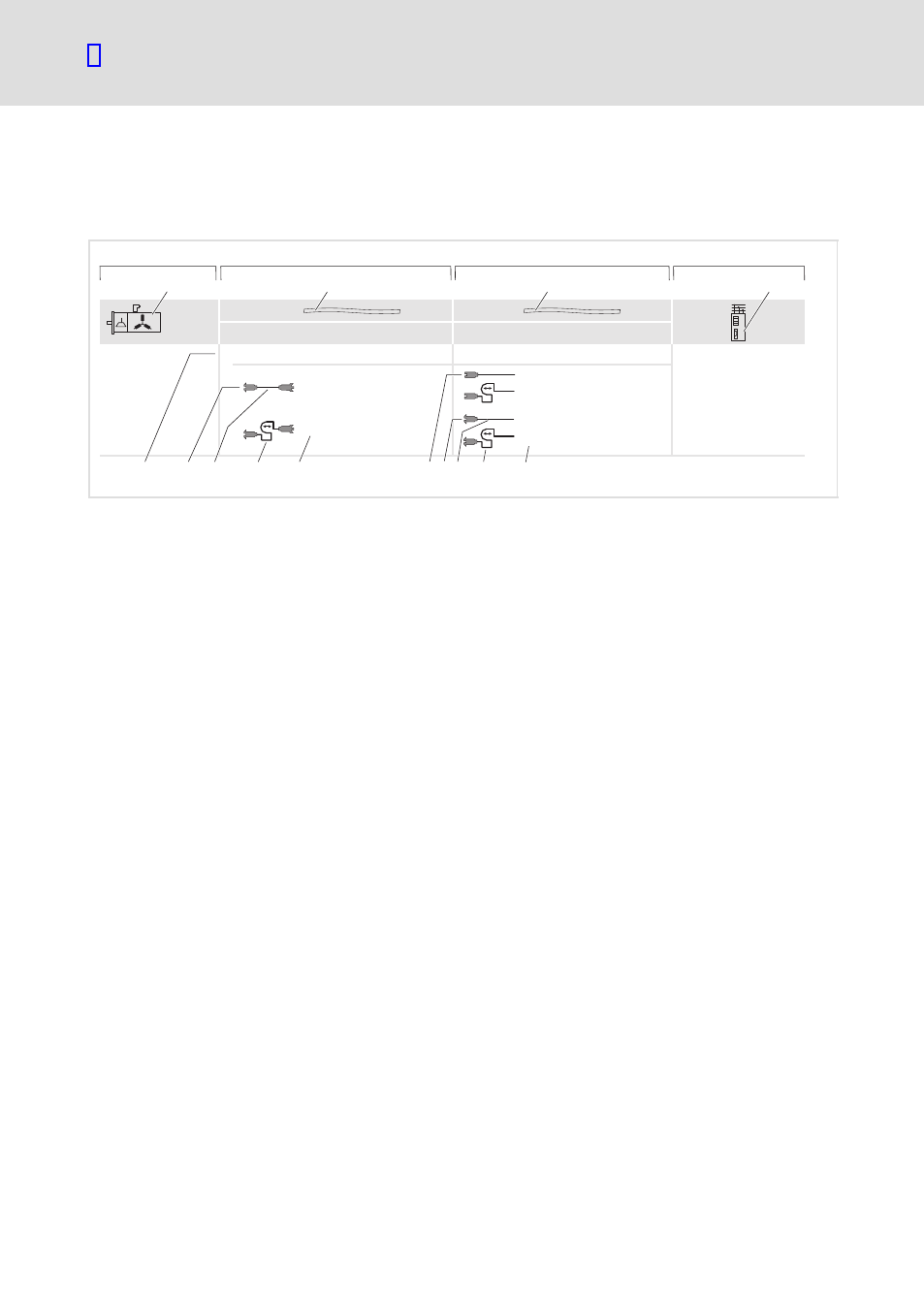

The table describes how to connect the motor to the controller using a combination of
extension/connection cables.
EYP0003AxxxxM01A00
(4 x 1.0 + (2 x 0.5))
Extension cable Connecting cable
EYP0003VxxxxM04P04
EYP0003AxxxxM04A00
EYP0010AxxxxM01A00
EYP0010VxxxxM04P04
EYP0010AxxxxM04A00
U
V
W

1 0 2 3
4 5 6 7 8 9
‚ „ ƒ
:; < =
hb_tab_03
0 Self−ventilated motor with plug
1 Extension cable
2 Connection cable
3 Controller
4 Structure and cross−section of the extension/connection cable
5 Extension cable with SpeedTec
6 Extension cable for fixed installation
7 Extension cable as a trailing cable
8 Product key of the extension cable
9 Connection cable with screw plug
: Connection cable with SpeedTec
; Connection cable for fixed installation
< Connection cable as trailing cable
= Product key of the connection cable
ƒ The
 column contains the motor symbol which represents the consistent ’motor −
motor cables − controller’ system.
– The symbol may represent a motor with a plug or a terminal box.
ƒ The
‚ column gives more detailed information about the extension cable:
– Structure and cross−section; this also holds for the connection cable
– Trailing cable design or for fixed installation
– Plug on the motor side or open cable end
– Always a plug on the controller side
– The product key must be specified when you make your order.
ƒ The
ƒ column gives more detailed information about the connection cable:
– Trailing cable design or for fixed installation
– Always a plug on the motor side
– The cable end on the motor side is always open
– The product key must be specified when you make your order.
