Lenze EY System cables and system connectors - Manual (Page 244)

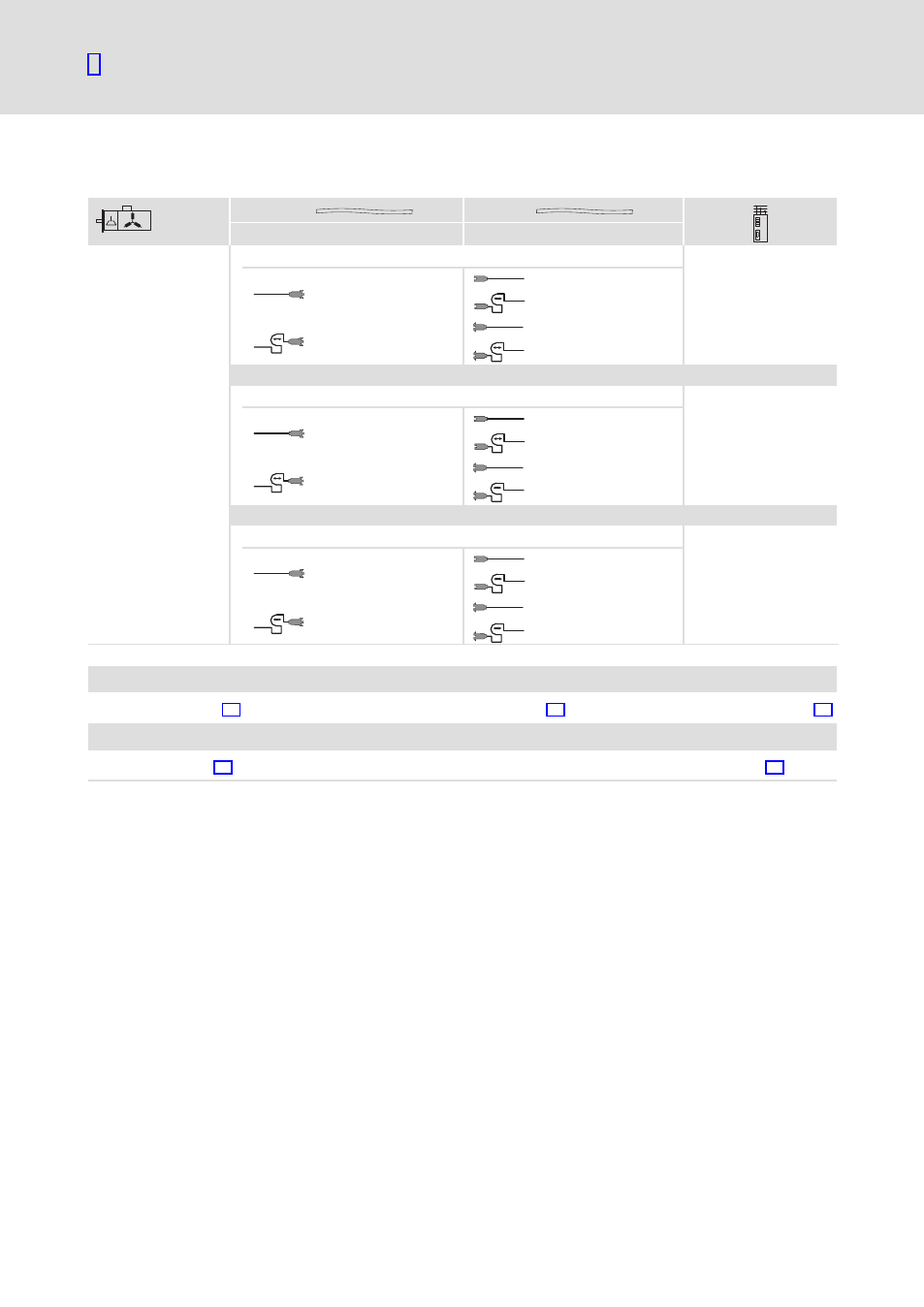

Servo motors: Motor cable selection
MCS motor
MCS12L17
5
l
244 EDSYPFLD EN 8.0
Extension cable
U
V
W
Extension cable Connection cable
(4 Ч 1.0 + (2 Ч 0.5))
EYP0003VxxxxA00P04
EYP0003AxxxxM01A00 E94AS
E94AM
EVS93
ECS
E84AVT
EYP0010AxxxxM01A00
EYP0010VxxxxA00P04
EYP0003AxxxxM04A00
EYP0010AxxxxM04A00
(4 Ч 1.5 + (2 Ч 0.5))
EYP0004VxxxxA00P04
EYP0004AxxxxM01A00 E94AS
E94AM
EVS93
ECS
E84AVT
EYP0011AxxxxM01A00
EYP0011VxxxxA00P04
EYP0004AxxxxM04A00
EYP0011AxxxxM04A00
(4 Ч 2.5 + (2 Ч 0.5))
EYP0005VxxxxA00P04
EYP0005AxxxxM01A00 E94AS
E94AM
EVS93
ECS
E84AVT
EYP0012AxxxxM01A00
EYP0012VxxxxA00P04
EYP0005AxxxxM04A00
EYP0012AxxxxM04A00
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27 For the dimensioning: ^ 24 et seqq.
