Lenze EY System cables and system connectors - Manual (Page 37)

Product description
Overview of possible configurations
Ten−core motor cables
2
l
37 EDSYPFLD EN 8.0

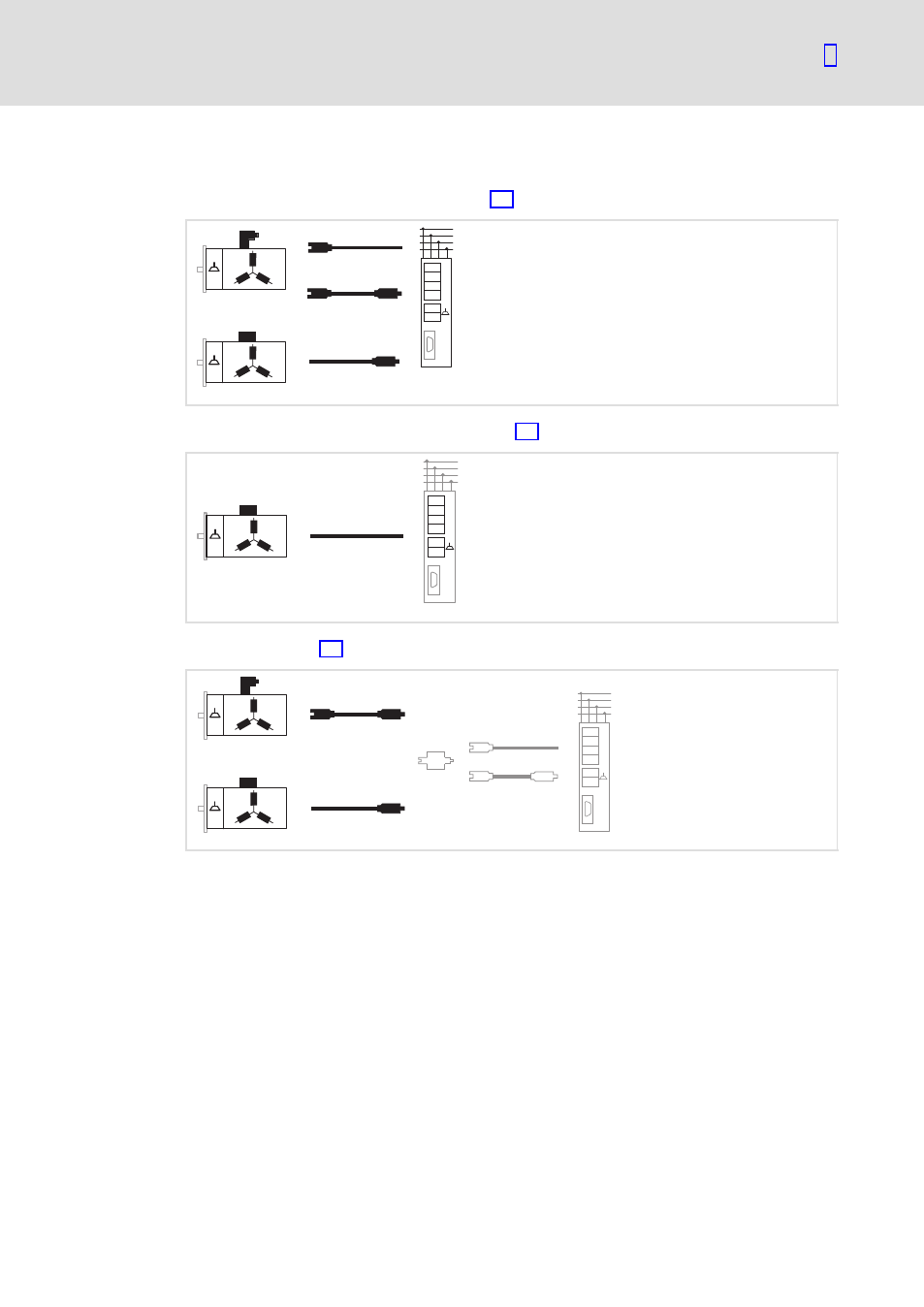

2.3.3 Ten−core motor cables
Connection cable with connector, see (
¶ 38)
U
U
V
V
W
W
EYP xxxx A xxxx H0x A00
EYP xxxx A xxxx H0x Q0x
U
V
PE
W
EYP xxxx A xxxx A00 Q0x
hb_motor_06
Connection cable without connector, see ( ¶ 39)
U
V
W
U
V
PE
W EYP xxxx Y xxxx A00 A00
hb_motor_03
Extension, see (
¶ 38)
EYP xxxx A xxxx H0x Q0x
EYP xxxx A xxxx H0x A00 EWZ0064
EWZ0065
EYP xxxx A xxxx H0x Q0x
EYP xxxx A xxxx A00 Q0x
U
V
PE
W
U
U
V
V
W
W
hb_motor_08
I
Tip!
Plug−in connectors EWZ0064 and EWZ0065 can be used to extend and
combine the ten−core connection cables with other connection cables.
