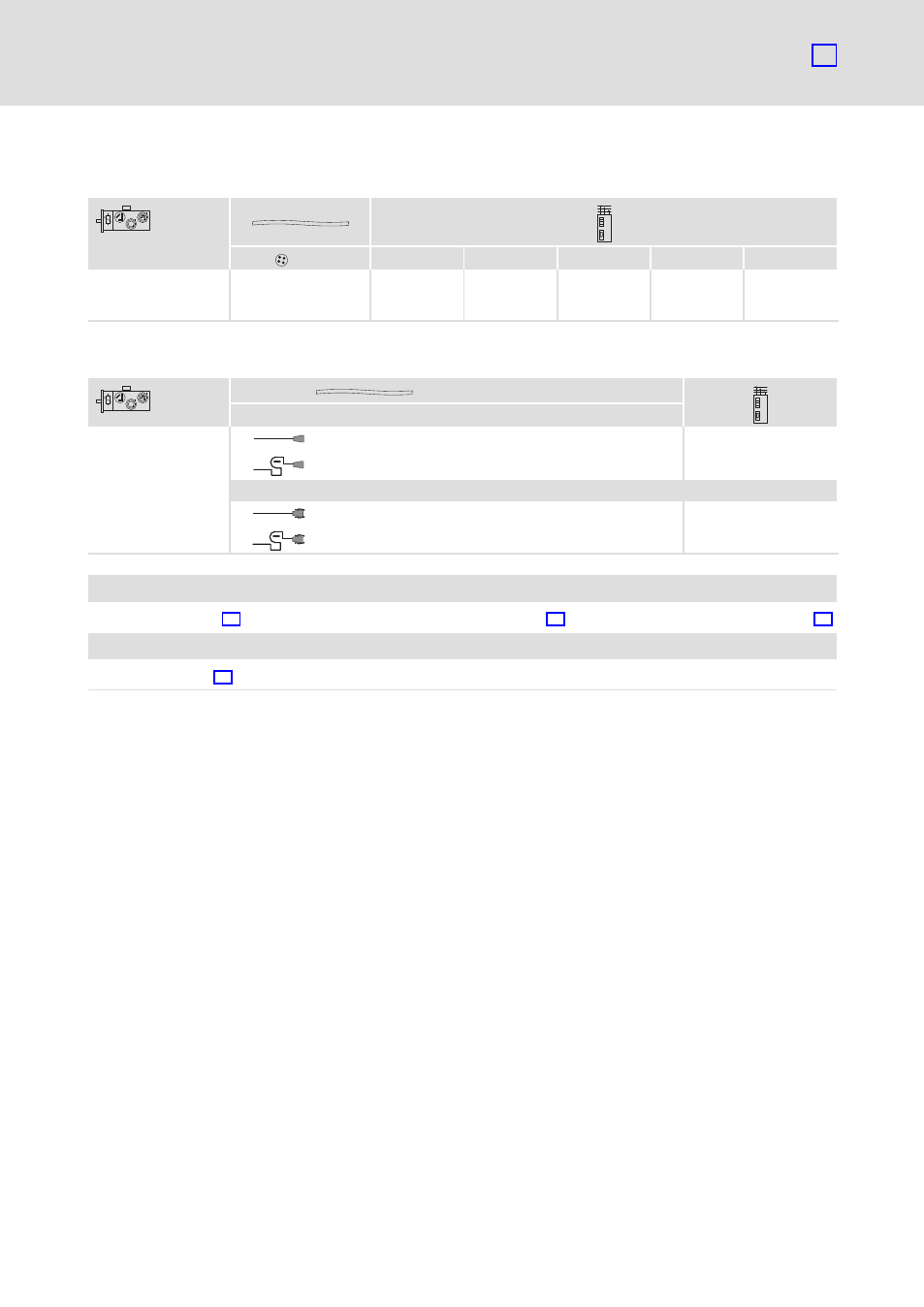

Feedback cable selection
Encoder cables
AM1024−8V−H, Ax4096−8V−H (SinCos absolute value encoder − Hiperface)
11
l
827 EDSYPFLD EN 8.0
Feedbacks with terminal boxes
[mm 2 ] E94Ax EVS93 ECS 931E E84AVT
AM1024−8V−H
AS4096−8V−H
AM4096−8V−H
4 (2 Ч 0.14) + (2 Ч 1.0) X8 X8 X8 X8 X8
Connection cable
Connection cable
EYF0018AxxxxA00W02 EVS93
ECS
931E
EYF0019AxxxxA00W04
EYF0018AxxxxA00S03 E94AS
E94AM
E84AVT
EYF0019AxxxxA00S03
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27
