How to select your system cable
Feedback cables
Connection cable
l
71
EDSYPFLD EN 8.0
4.3.3
Connection cable

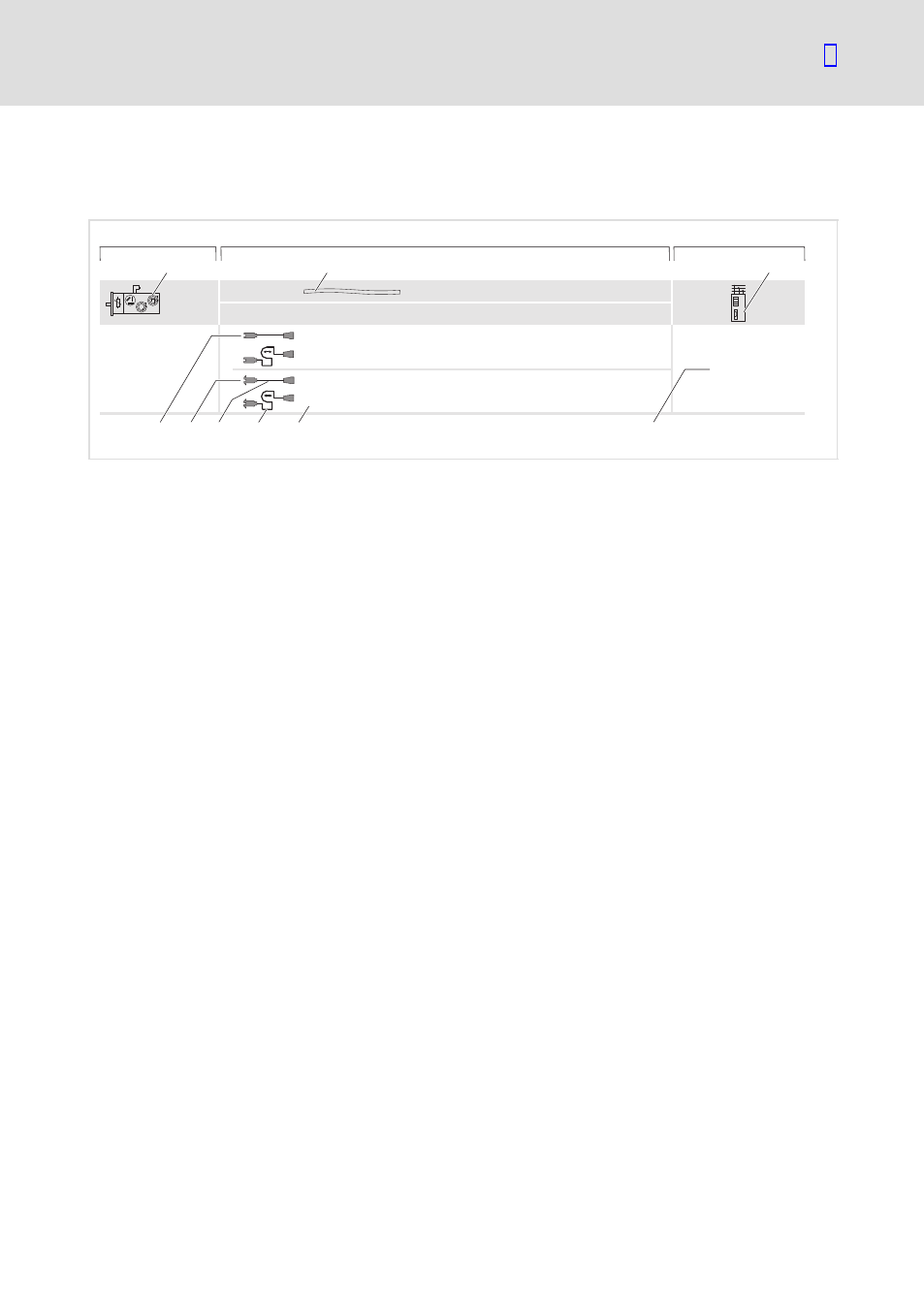

The table describes how to directly connect the feedback to a controller.
EYF0017AxxxxF01S01
9300, ECS
Connecting cable
EYF0017AxxxxF05S01
EYF0020AxxxxF01S04
EYF0020AxxxxF05S04
1
2
3 4 5 6
7
8
0
hb_tab_08
0 Feedback with plug
1 Connection cable
2 Controller
3 Connection cable with screw plug
4 Connection cable with SpeedTec
5 Connection cable for fixed installation
6 Connection cable as trailing cable
7 Product key of the connection cable
8 Controller types
ƒ
The
column contains the feedback symbol which represents the consistent
’feedback − feedback cable − controller’ system.
– The symbol may represent a feedback with a plug or a terminal box.
ƒ
The
column gives more detailed information about the connection cable:
– Trailing cable design or for fixed installation
– Plug on the feedback side or open cable end
– Plug on the controller side or open cable end
– The product key must be specified when you make your order.
ƒ
The
column contains the controller symbol which represents the consistent
’feedback − feedback cable − controller’ system.
– The feedback cable can be connected to the controller types specified.
