Lenze EY System cables and system connectors - Manual (Page 551)

Three−phase asynchronous motors MDxMA: Motor cable selection
MDxMAxx112−32
Star connection − plug, 6−core system cable
6
l
551 EDSYPFLD EN 8.0

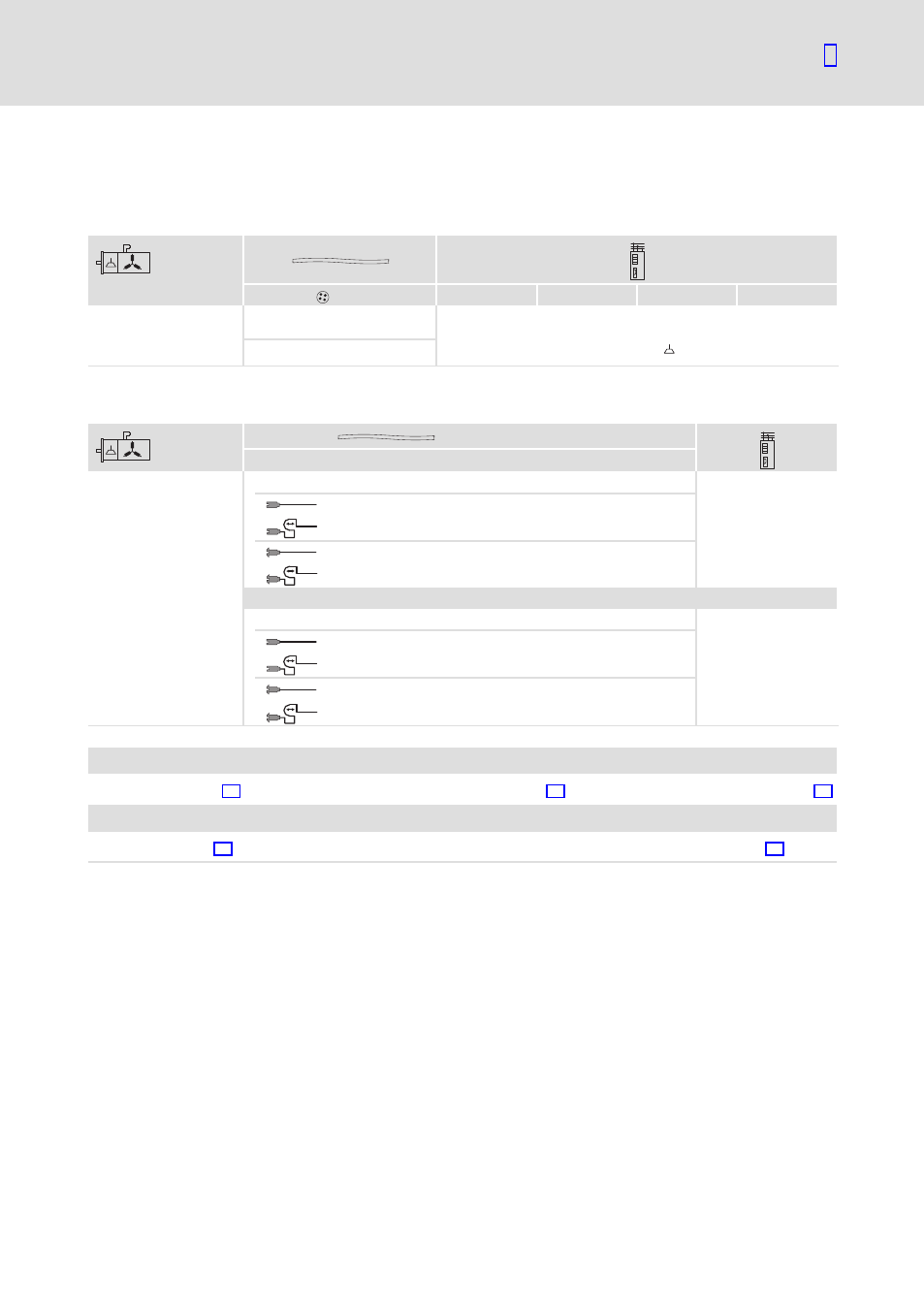

6.8 MDxMAxx112−32
6.8.1 Star connection − plug, 6−core system cable
U
V
W
[mm 2 ] E94Ax EVF93 E82xV E84AV
MDxMAxx112−32, *
(4 Ч 1.5 + (2 Ч 0.5))
U, V, W, PE, J
[U, V, W, PE, ] (4 Ч 2.5 + (2 Ч 0.5))
Connection cable
U
V
W
Connection cable
(4 Ч 1.5 + (2 Ч 0.5))
EYP0004AxxxxM01A00 E94Ax
EVF93
E82xV
E84AV
EYP0011AxxxxM01A00
EYP0004AxxxxM04A00
EYP0011AxxxxM04A00
(4 Ч 2.5 + (2 Ч 0.5))
EYP0005AxxxxM01A00 E94Ax
EVF93
E82xV
E84AV
EYP0012AxxxxM01A00
EYP0005AxxxxM04A00
EYP0012AxxxxM04A00
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27 For the dimensioning: ^ 24 et seqq.
