4.3.4 Extension cable

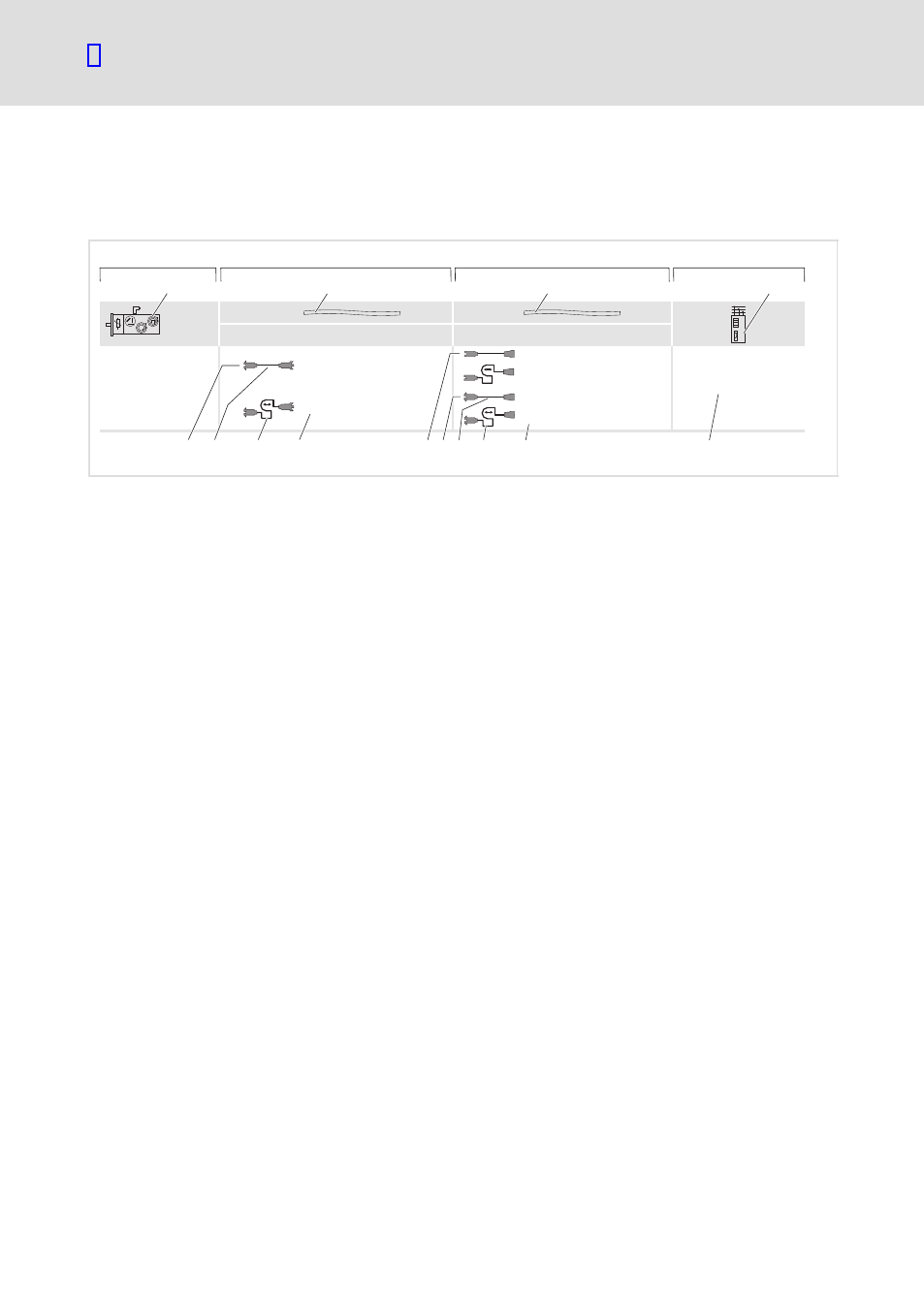

The table describes how to connect the feedback to the controller using a combination of
extension/connection cables.
EYF0017AxxxxF01S01
EYF0017AxxxxF05S01
9300, ECS
Extension cable Connecting cable
EYF0017VxxxxF05G06
EYF0020AxxxxF01S04
EYF0020AxxxxF05S04
EYF0020VxxxxF05G06
1 2 3
4 5 6 7 89: ; < =
0
 ‚ „ ƒ
hb_tab_09
0 Feedback with plug
1 Extension cable
2 Connection cable
3 Controller
4 Extension cable with SpeedTec
5 Extension cable for fixed installation
6 Extension cable as a trailing cable
7 Product key of the extension cable
8 Connection cable with screw plug
9 Connection cable with SpeedTec
: Connection cable for fixed installation
; Connection cable as trailing cable
< Product key of the connection cable
= Controller types
ƒ The  column contains the feedback symbol which represents the consistent
’feedback − feedback cables − controller’ system.
– The symbol may represent a feedback with a plug or a terminal box.
ƒ The
‚ column gives more detailed information about the extension cable:
– Trailing cable design or for fixed installation
– Plug on the feedback side or open cable end
– Always a plug on the controller side
– The product key must be specified when you make your order.
ƒ The
ƒ column gives more detailed information about the connection cable:
– Trailing cable design or for fixed installation
– Always a plug on the feedback side
– Plug on the controller side or open cable end
– The product key must be specified when you make your order.
