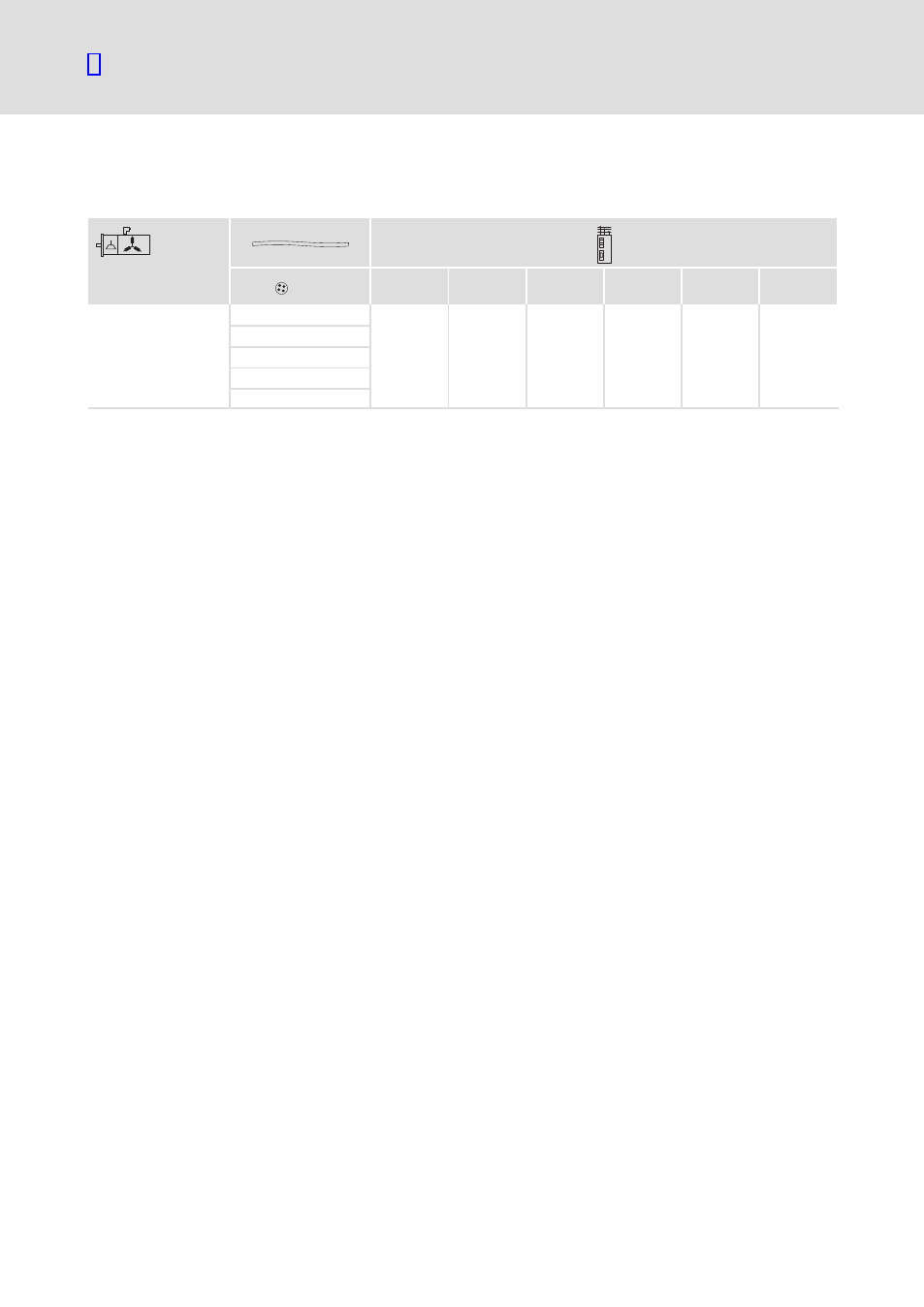

Lenze EY System cables and system connectors - Manual (Page 324)

Servo motors: Motor cable selection
MCS motor
MCS19F29, MCS19F30
5
l
324 EDSYPFLD EN 8.0
5.2.39 MCS19F29, MCS19F30
Motors with plug connections
U
V
W
[mm 2 ]
EVS93
E84AVT
E94AS
E94AM
ECS
MCS19F29−...Fxx
MCS19F30−...S00
(4 Ч 2.5 + (2 Ч 0.5))
U, V, W, PE X105, X107 X24, X25
(4 Ч 4.0 + (2 Ч 1.0))
(4 Ч 6.0 + (2 Ч 1.0))
(4 Ч 10.0 + (2 Ч 1.0))
(4 Ч 16.0 + (2 Ч 1.0))
