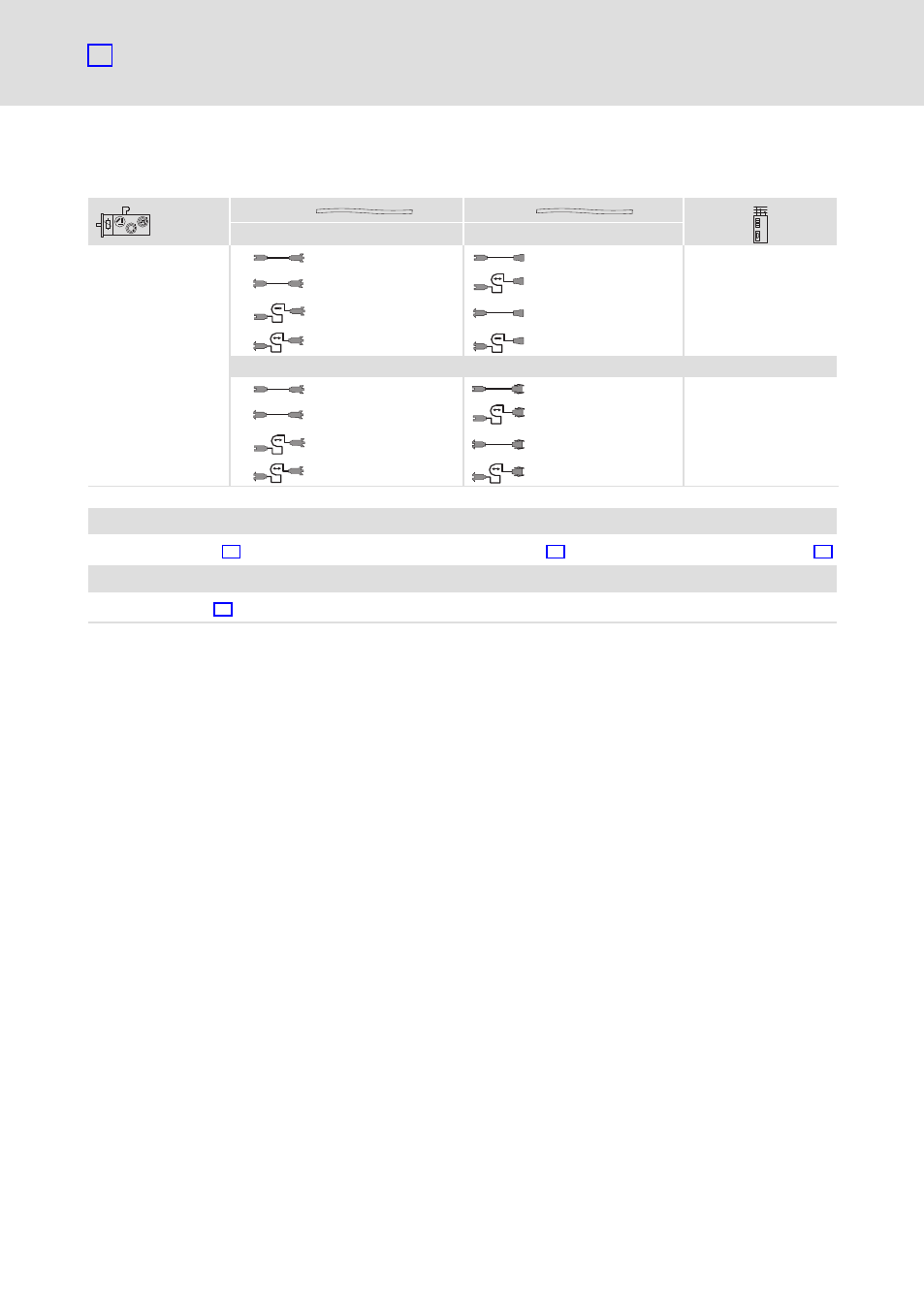

Feedback cable selection
Encoder cables
AM1024−8V−H, Ax4096−8V−H (SinCos absolute value encoder − Hiperface)
11
l
826 EDSYPFLD EN 8.0
Extension cable
Extension cable Connection cable
EYF0018VxxxxF02G07 EYF0018AxxxxF02W02
EVS93 ,
ECS ,
931E
EYF0018VxxxxF06G07 EYF0019AxxxxF02W04
EYF0019VxxxxF02G07 EYF0018AxxxxF06W02
EYF0019VxxxxF06G07 EYF0019AxxxxF06W04
EYF0018VxxxxF02G07 EYF0018AxxxxF02S03
E94AS
E94AM
E84AVT
EYF0018VxxxxF06G07 EYF0019AxxxxF02S03
EYF0019VxxxxF02G07 EYF0018AxxxxF06S03
EYF0019VxxxxF06G07 EYF0019AxxxxF06S03
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27
