How to select your system cable
Blower cables
Blower type
4
l
65 EDSYPFLD EN 8.0
4.2.2 Blower type

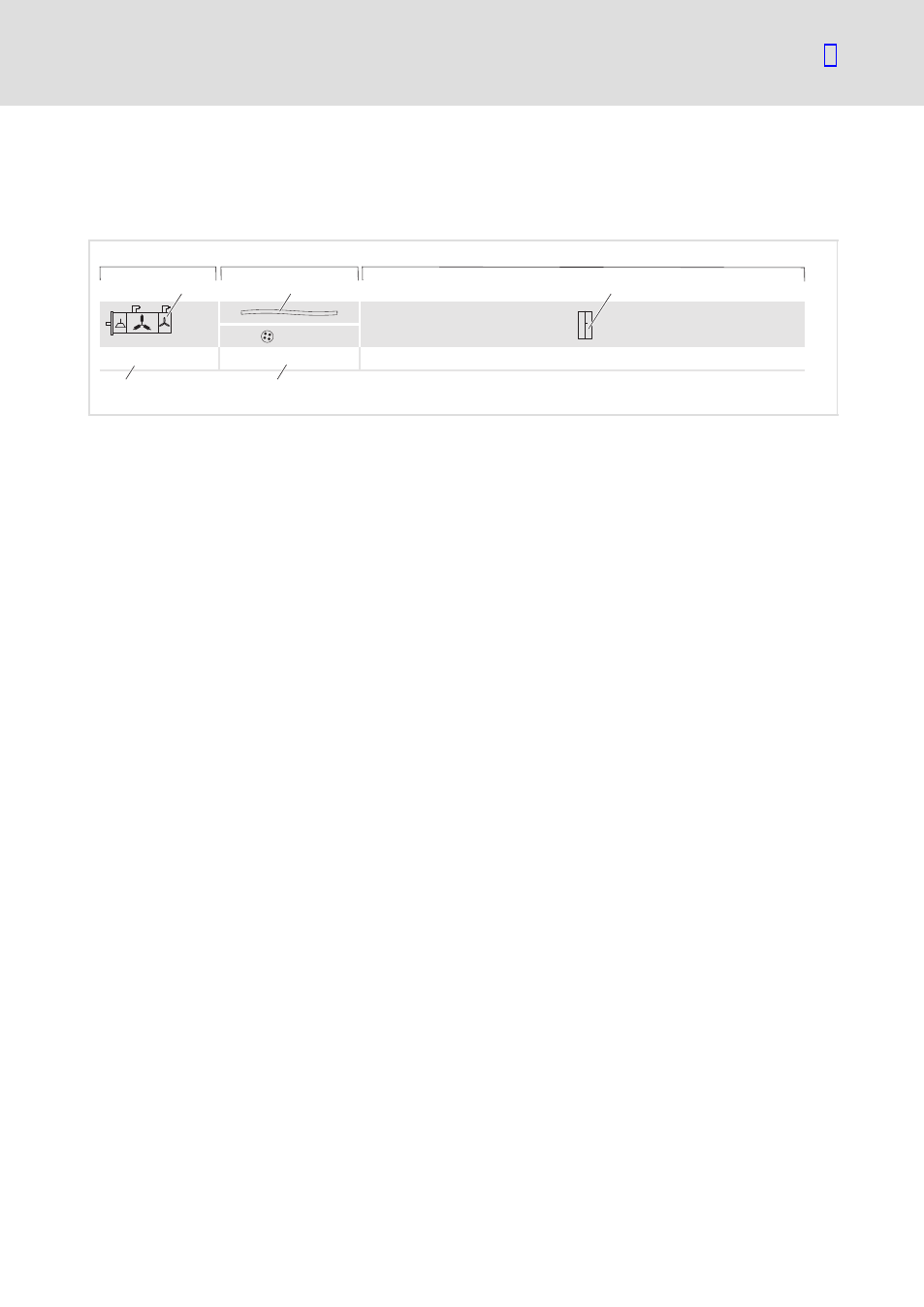

The table gives more detailed information about the blower, the structure and
cross−section of the blower cable, and the connectionto the control cabinet.
MCS...Fx0 5 x 1.0
[mm ] 2
1
3 4
U
V
W
0 2
 ‚ ƒ
hb_tab_04
0 Forced−ventilated motor with plug
1 Blower cable
2 Control cabinet
3 Forced−ventilated motor type
4 Structure and cross−section of the blower cable
ƒ The
 column describes the ’motor with blower’ type.
– The symbol may represent a blower with a plug or a terminal box.
ƒ The ‚ column gives more detailed information about the blower cable:
– Here, the symbol stands for the extension/connection cables. The exact product
key of these blower cables can be seen from the following two tables.
– The blower cables are five−core cables with a cross−section of 1 mm 2 .
ƒ The
ƒ column specifies that the blower is applied in the control cabinet.
