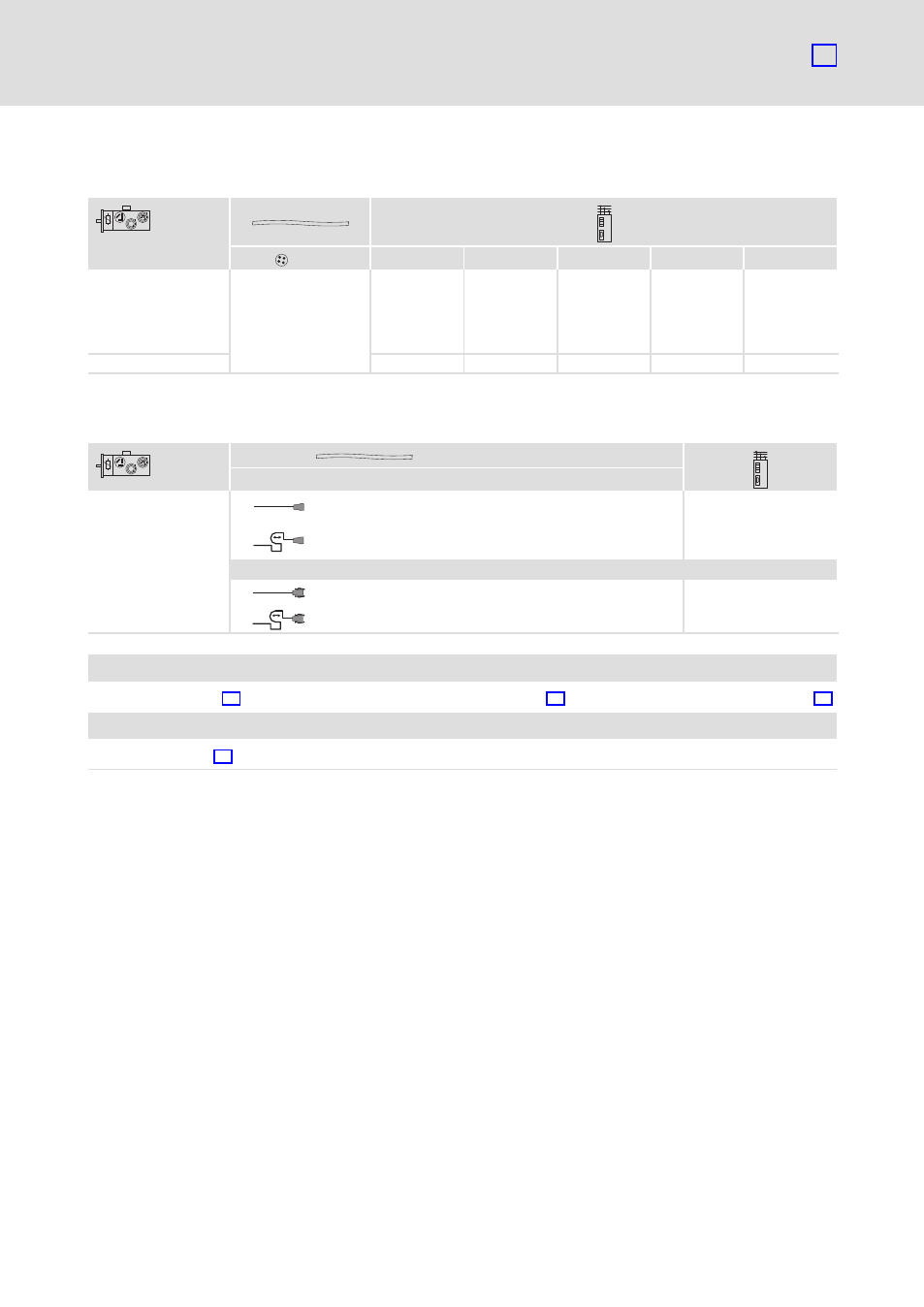

Feedback cable selection
Encoder cables
IG512−5V−T, IGxxxx−5V−T, IG2048−5V−S, IG1024−5V−V (TTL, SinCos and Safety)
11
l
813 EDSYPFLD EN 8.0
Feedbacks with terminal boxes
[mm 2 ] E94Ax EVS93 ECS EVF93 E84AVT
IG512−5V−T
IG1024−5V−T
IG2048−5V−T
IG4096−5V−T
IG2048−5V−S
4 (2 Ч 0.14) + (2 Ч 1.0)
X8
X9 1)
X8 X8 X8 X8
IG1024−5V−V X8 ˘ ˘ ˘ ˘
1) Connection via E94AYFLF module.
Connection cable
Connection cable
EYF0018AxxxxA00W02 E94AYFLF (X9)
EVS93 ,
ECS ,
EVF93
EYF0019AxxxxA00W04
EYF0018AxxxxA00S03 E94AS (X8)
E94AM (X8)
E84AVT
EYF0019AxxxxA00S03
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27
