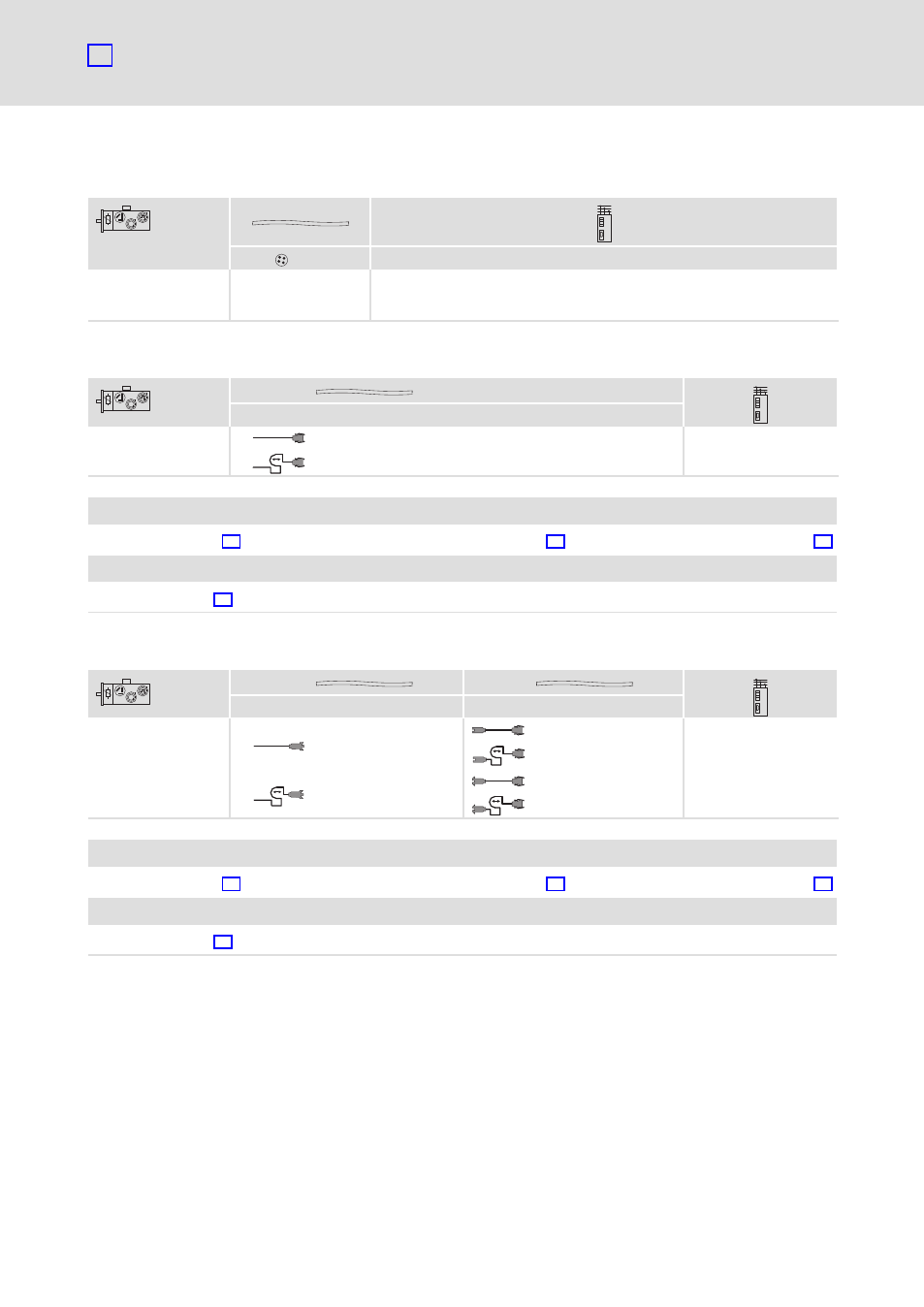

Feedback cable selection
Encoder cables
Ax2048−5V−E, AM32−5V−E (SinCos absolute value encoder − EnDat)
11
l
830 EDSYPFLD EN 8.0
Feedbacks with terminal boxes
[mm 2 ] E94Ax
AS2048−5V−E
AM2048−5V−E
AM32−5V−E
3 (2 Ч 0.14) + (4 Ч 0.14)
+ 2 (2 Ч 0.5)
X8
Connection cable
Connection cable
EYF0021AxxxxA00S03
E94AS
E94AM –
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27
Extension cable
Extension cable Connection cable
EYF0021VxxxxA00G08
EYF0021AxxxxF03S03
E94AS
E94AM
–
EYF0024VxxxxA00G08
EYF0021AxxxxF07S03
–
Cable properties
Mechanical/design: ^ 53 Electrical/temperature range: ^ 54 Chemical: ^ 55
Important notes
For trailing cables: ^ 27
