How to select your system cable
Motor cables
Connection cable
4
l
61 EDSYPFLD EN 8.0
4.1.3 Connection cable

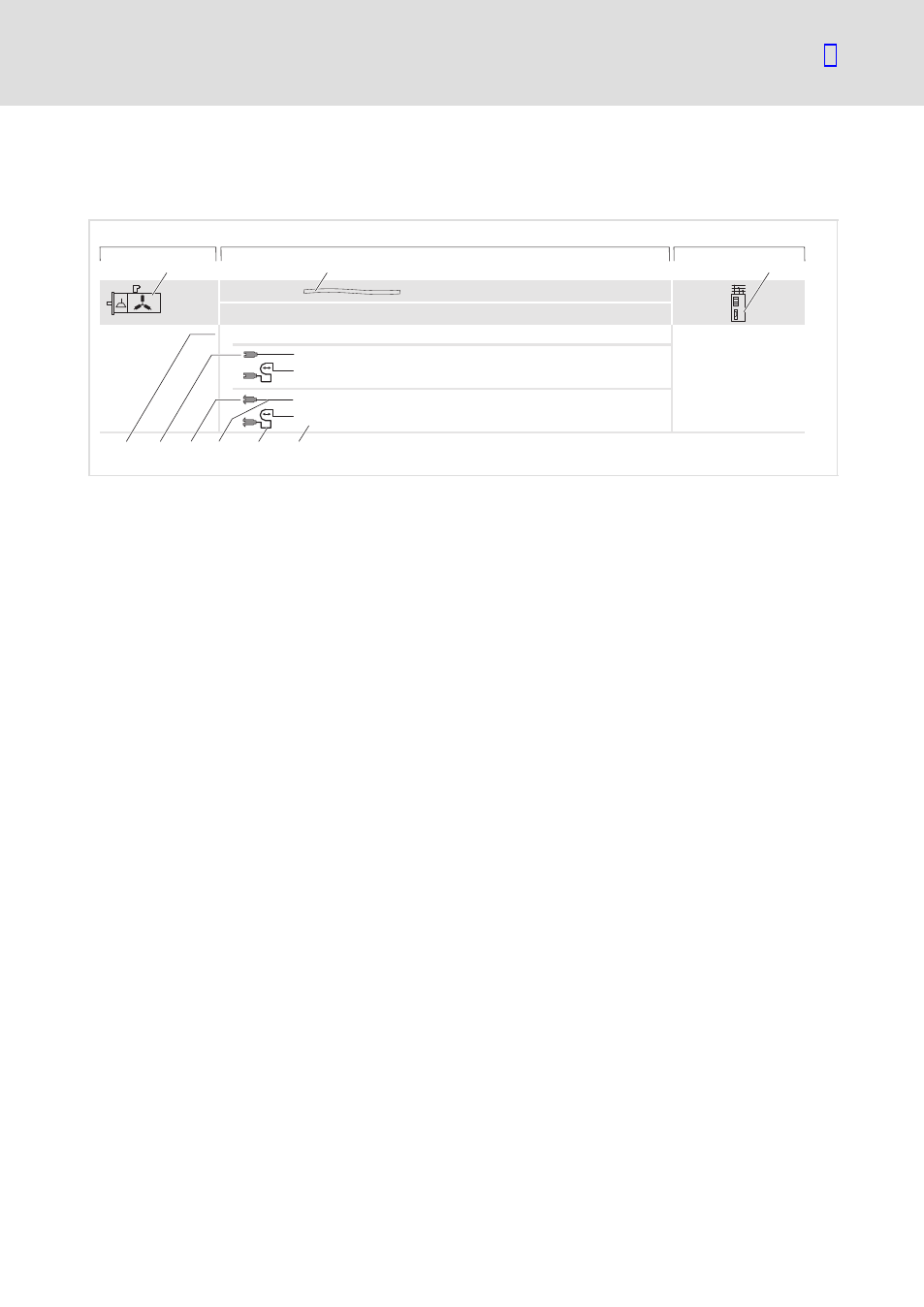

The table describes how to directly connect the motor to a controller.
EYP0003AxxxxM01A00
(4 x 1.0 + (2 x 0.5))
Connecting cable
EYP0003AxxxxM04A00
EYP0010AxxxxM01A00
EYP0010AxxxxM04A00
U
V
W

1 0 2
3 4 5 6 7 8
‚ ƒ
hb_tab_02
0 Self−ventilated motor with plug
1 Connection cable
2 Controller
3 Structure and cross−section of the connection cable
4 Connection cable with screw plug
5 Connection cable with SpeedTec
6 Connection cable for fixed installation
7 Connection cable as trailing cable
8 Product key of the connection cable
ƒ The
 column contains the motor symbol which represents the consistent ’motor −
motor cable − controller’ system.
– The symbol may represent a motor with a plug or a terminal box.
ƒ The
‚ column gives more detailed information about the connection cable:
– Structure and cross−section
– Trailing cable design or for fixed installation
– Plug on the motor side or open cable end
– The cable end on the motor side is always open
– The product key must be specified when you make your order.
ƒ The ƒ column contains the controller symbol which represents the consistent
’motor − motor cable − controller’ system.
