How to select your system cable
Blower cables
Connection cable
4
l
66 EDSYPFLD EN 8.0
4.2.3 Connection cable

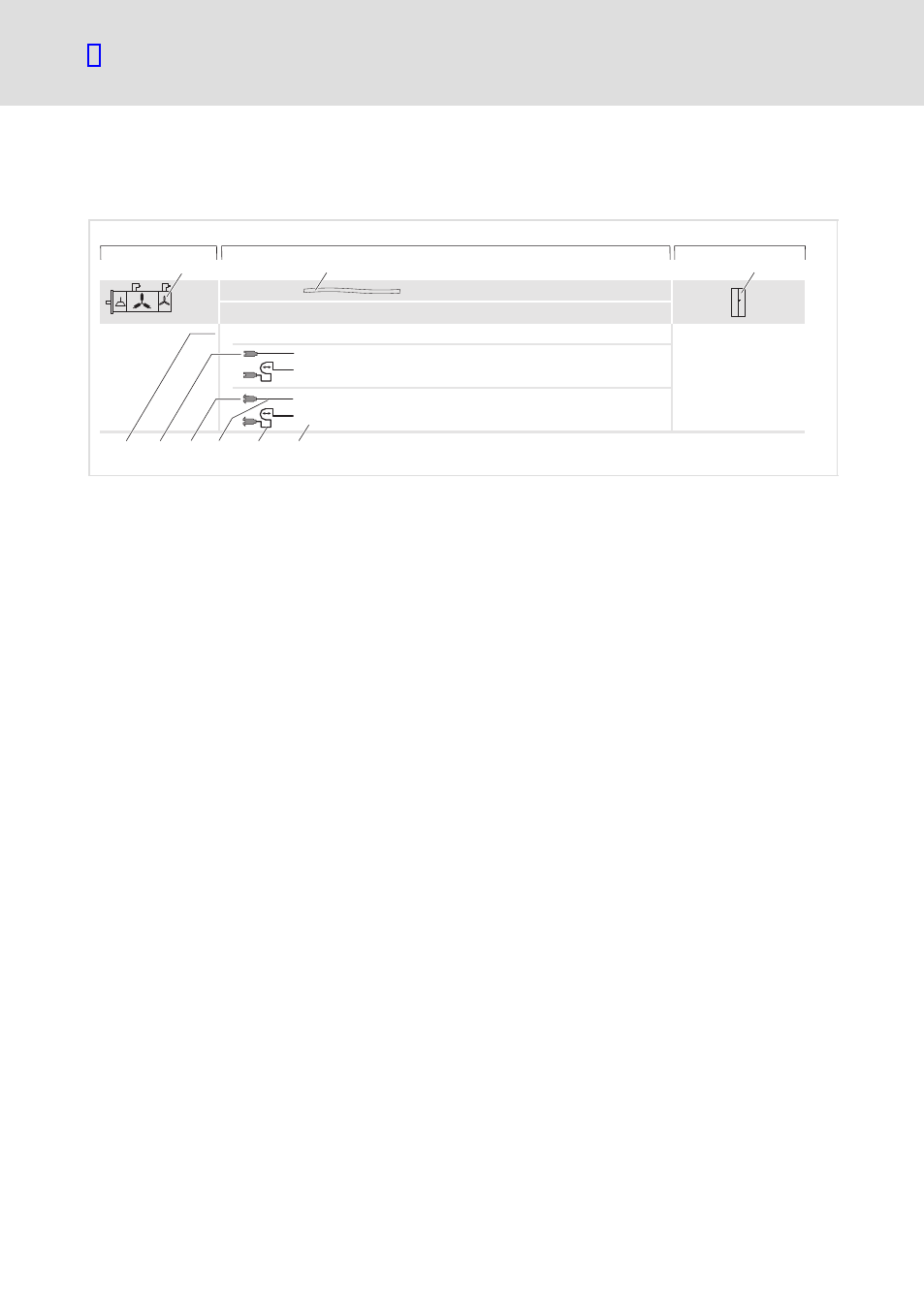

The table describes how to directly connect the blower to the control cabinet.
EYL0001AxxxxL02A00
5 x 1.0
Connecting cable
EYL0001AxxxxL04A00
EYL0002AxxxxL02A00
EYL0002AxxxxL04A00
1
3 4 5 6 7 8
U
V
W
0 2
 ‚ ƒ
hb_tab_05
0 Forced−ventilated motor with plug
1 Connection cable
2 Control cabinet
3 Structure and cross−section of the connection cable
4 Connection cable with screw plug
5 Connection cable with SpeedTec
6 Connection cable for fixed installation
7 Connection cable as trailing cable
8 Product key of the connection cable
ƒ The
 column contains the ’motor with blower’ symbol which represents the
consistent ’motor with blower − blower cable − control cabinet’ system.
– The symbol may represent a blower with a plug or a terminal box.
ƒ The
‚ column gives more detailed information about the connection cable:
– Structure and cross−section
– Trailing cable design or for fixed installation
– Plug on the blower side or open cable end
– The cable end on the control cabinet side is always open
– The product key must be specified when you make your order.
ƒ The ƒ column contains the control cabinet symbol which represents the consistent
’motor with blower − blower cable − control cabinet’ system.
