XTC/C - XTC/2 Operating Manual
NOTE: Do not turn the unit off while in the Communications Program Mode,
otherwise the new parameter values will not be saved properly.
To set up the communication interface for the XTC/C, see the configuration
switch setup (
section 2.6.2 on page 2-19 ) and review the communication
command section 3.8.5 on page 3-26 . The cables used between the XTC and
the host computer must be wired as depicted in the cable diagram in section
2.6.7 on page 2-26 .

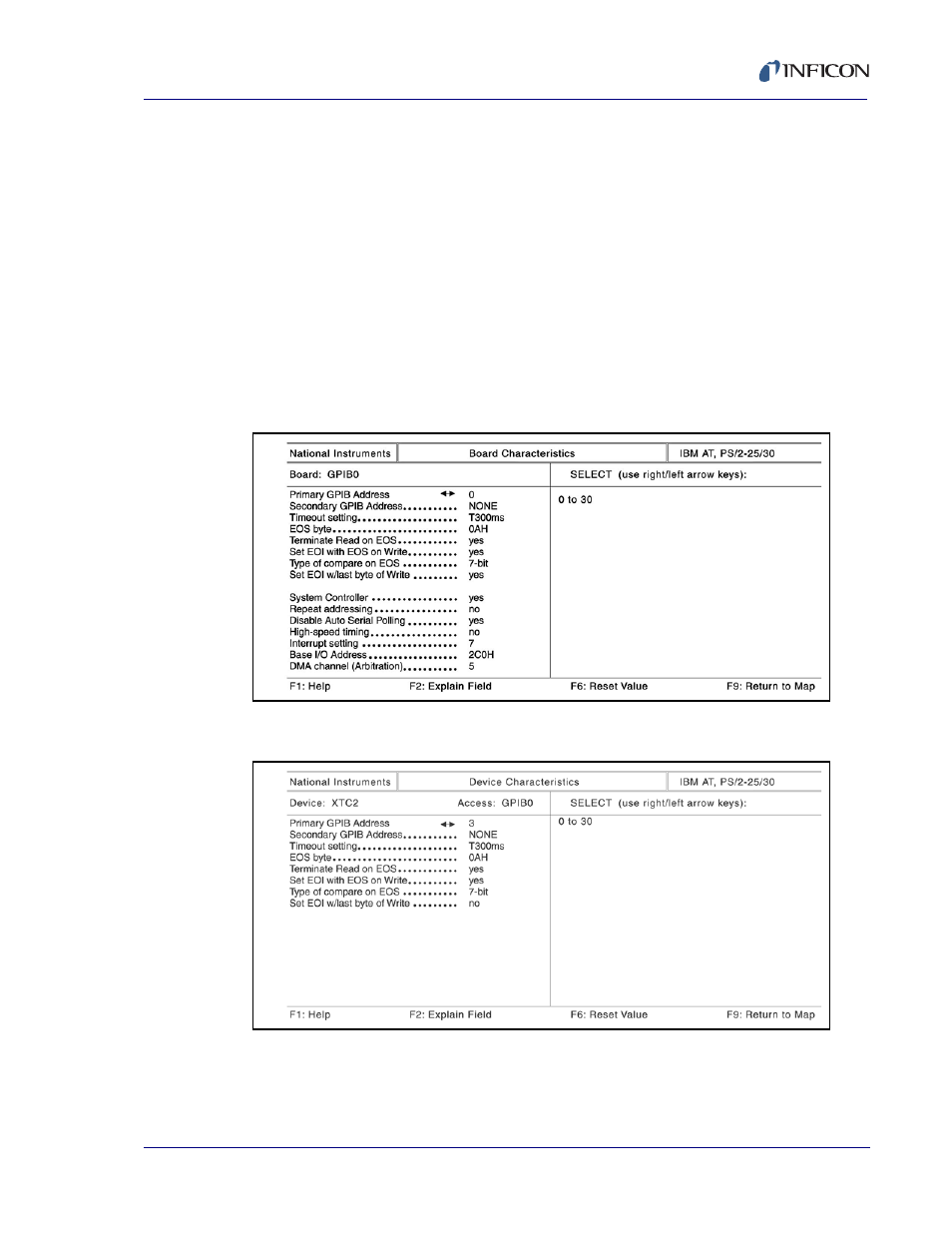

3.8.1.1 IEEE Settings for a National Instruments IEEE-GPIB Board
When establishing IEEE communications the following settings are found to
work using a National Instruments IEEE-GPIB board. These values are set
using the IBCONF.EXE file provided by National Instruments.
Figure 3-6 Board Characteristics
Figure 3-7 Device Characteristics
