2.4 XTC/2 Front Panel Description

The description of the XTC/2 front panel is divided into two sections, the display
area and the front control panel.

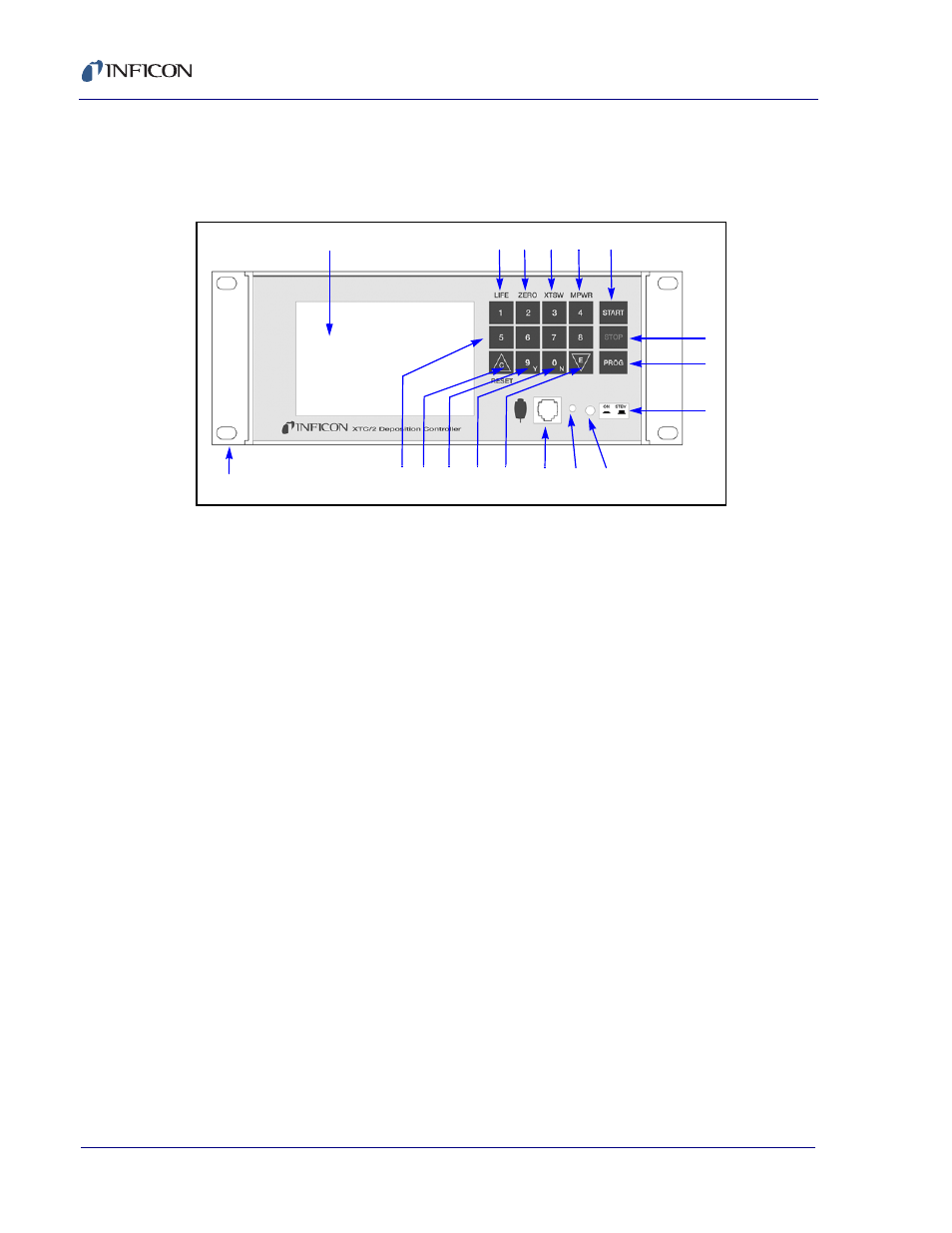

Figure 2-6 Front Panel XTC/2

2.4.1 XTC/2 Front Control Panel Description

1— LCD DISPLAY

Highly visible display of current information. See

section 2.4.2 on page

2-12

for details.

2— LIFE

Pressing the 1 key momentarily switches the display to percent of crystal
life used, software version, crystal frequency, and S and Q values, when
the display is in the operate mode.

3— ZERO

Pressing the 2 key zeros the displayed thickness when the display is in the
operate mode.

4— XTSW

Crystal Switch. Pressing the 3 key advances the CrystalSix to the next
available crystal or changes the active crystal of the dual head when the
display is in the operate mode. (See

section 4.15.1 on page 4-25

5— MPWR

Manual. Pressing the 4 key places the unit in manual power control or rate
control mode when the display is in the operate mode.

6— START

Initiates action. (Starts State Sequencing, see

Figure 4-2 on page 4-2

and

Figure 4-3 on page 4-3

7— STOP

Halts State Sequencing, see

Figure 4-2 on page 4-2

and
