INFICON XTC/C Thin Film Deposition Controller User Manual
Page 35
2 - 7
IP
N 07
4-
18
3X
XTC/C - XTC/2 Operating Manual

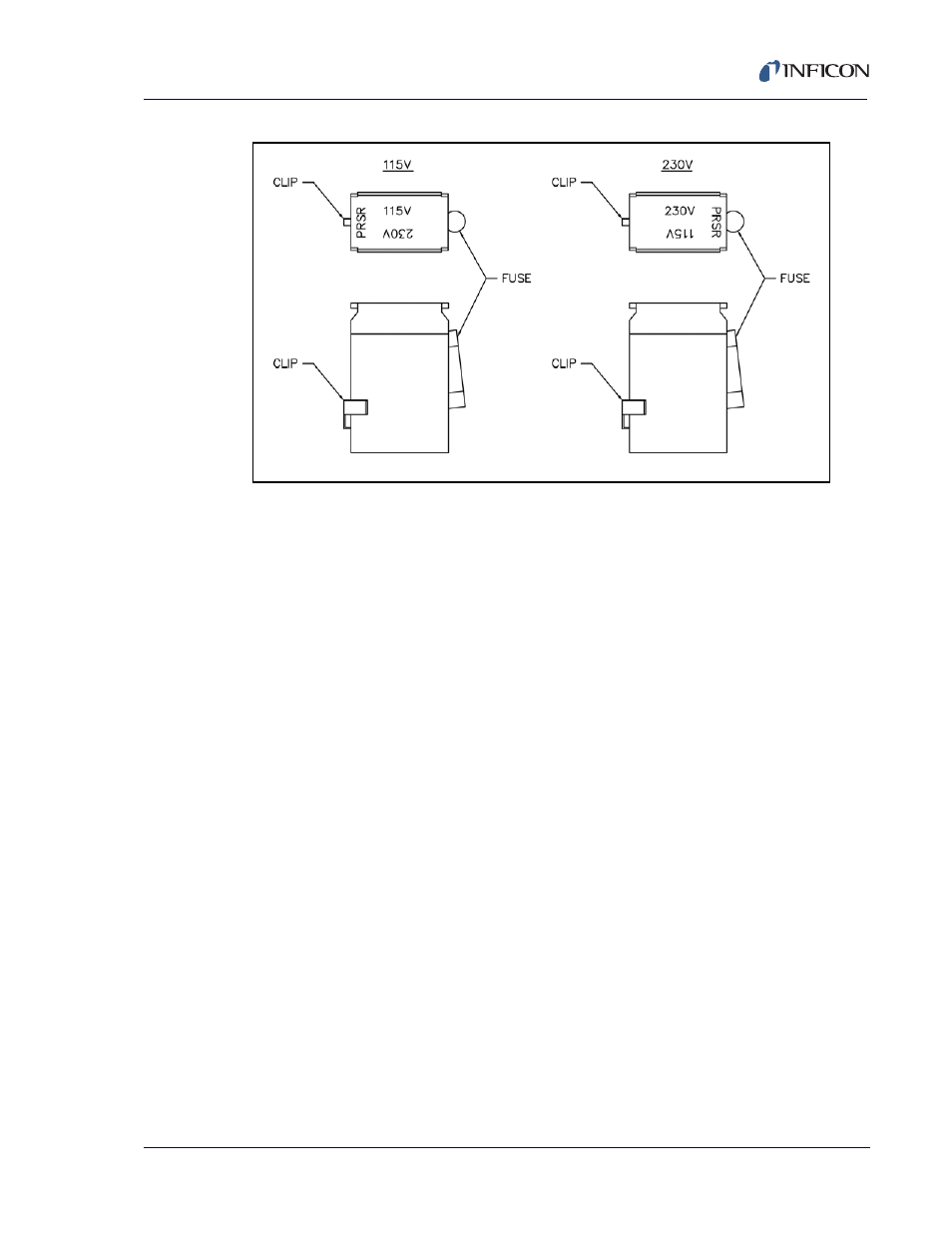

Figure 2-4 Proper Clip and Fuse Location
Once the fuse and clip have been configured, the fuse holder is inserted into
the power entry module housing with the fuse towards the bottom of the
instrument (and the clip towards the top) with the desired voltage showing
through the hole into the cover.
