XTC/C - XTC/2 Operating Manual
2.6.6 Sensor 1, Sensor 2
High density 15-pin female "D" type. Input connectors for intelligent oscillators
1, 2 (IPN 757-302 G1). These oscillators are normally supplied with 15 foot (4.5
meter) cables as IPN 757-305-G15. These are specifiable as 30 foot and 100
foot by changing the group (G-xx) designation to 30 or 100, respectively. The
crucible select outputs are open collector BCD encoded only on Sensor 1.

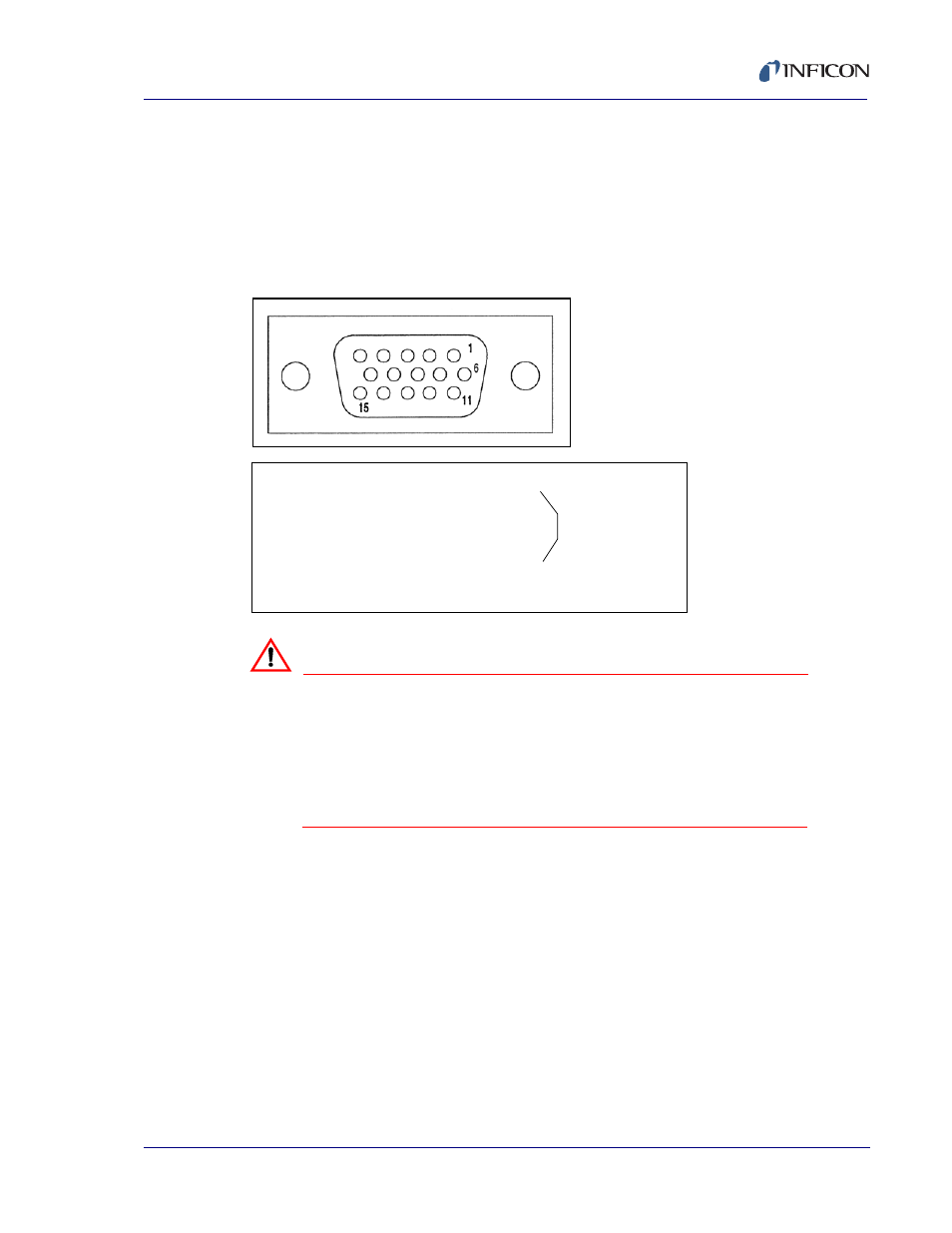

Figure 2-15 15-Pin Type "D" Female Connector
CAUTION
Only connect to pins 11-15, inclusive. Ignoring this
warning will effect crystal and instrument
performance.
Be sure to follow the best wiring and grounding
practice possible see
section 3.2.3 on page 3-3 .
Pin # Description
11 Crucible Select (LSB)
12 Crucible Select
13 Crucible Select (MSB)
14 Ground
15 Ground
BCD encoding
