Cygnus Operating Manual

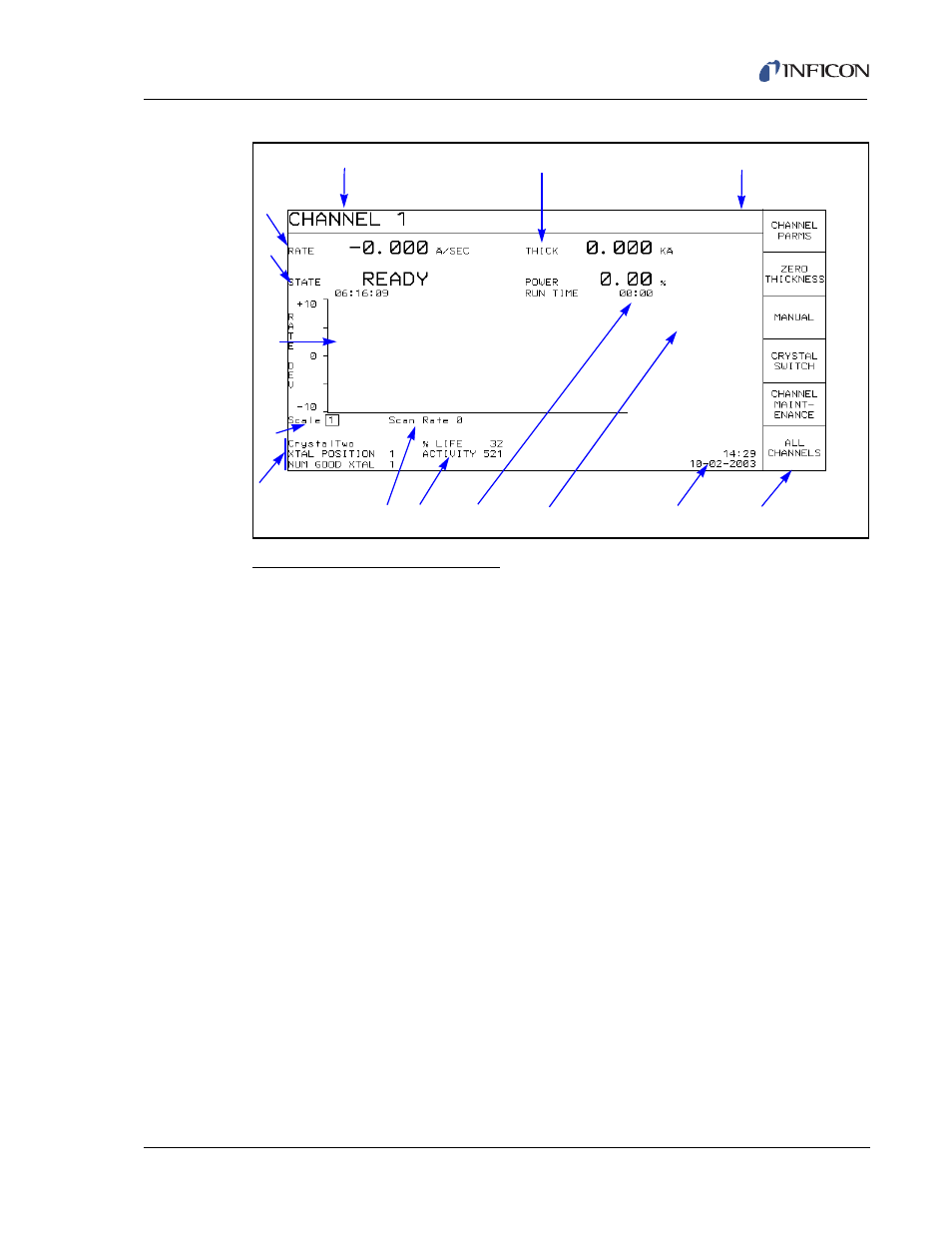

Figure 2-8 CHANNEL Display
CHANNEL Display Description
1 Identifies the channel number associated with the displayed information.
2 Accumulated Channel thickness
3 General instrument information message area
4 Function key definitions
5 Date and Time
6 Status area
Displays channel specific status information
7 Run time
This timer represents the elapsed time since the last READY state.
8 Crystal life and activity values (see section 2.4 on page 2-21 )
9 Scan rate 0 / 1 / 2 / 3
This parameter determines the horizontal axis for the channel graphic display.
Permissible values are 0, 1, 2 and 3. A 0 places the scan rate into the Auto
mode. A 3 sets the scale to three measurements per horizontal pixel, a 2 sets
the scale to 10 measurements per horizontal pixel, while a 1 sets the scale to
40 measurements per horizontal pixel. The default value is zero. When the plot
reaches the right edge it will wrap and erase the plot from the left edge. Auto
mode starts plotting at 3, then compresses and plots at 2, then compresses and
plots at 1’s rate.
