2.3.1.1 GENERAL PARAMETERS Display

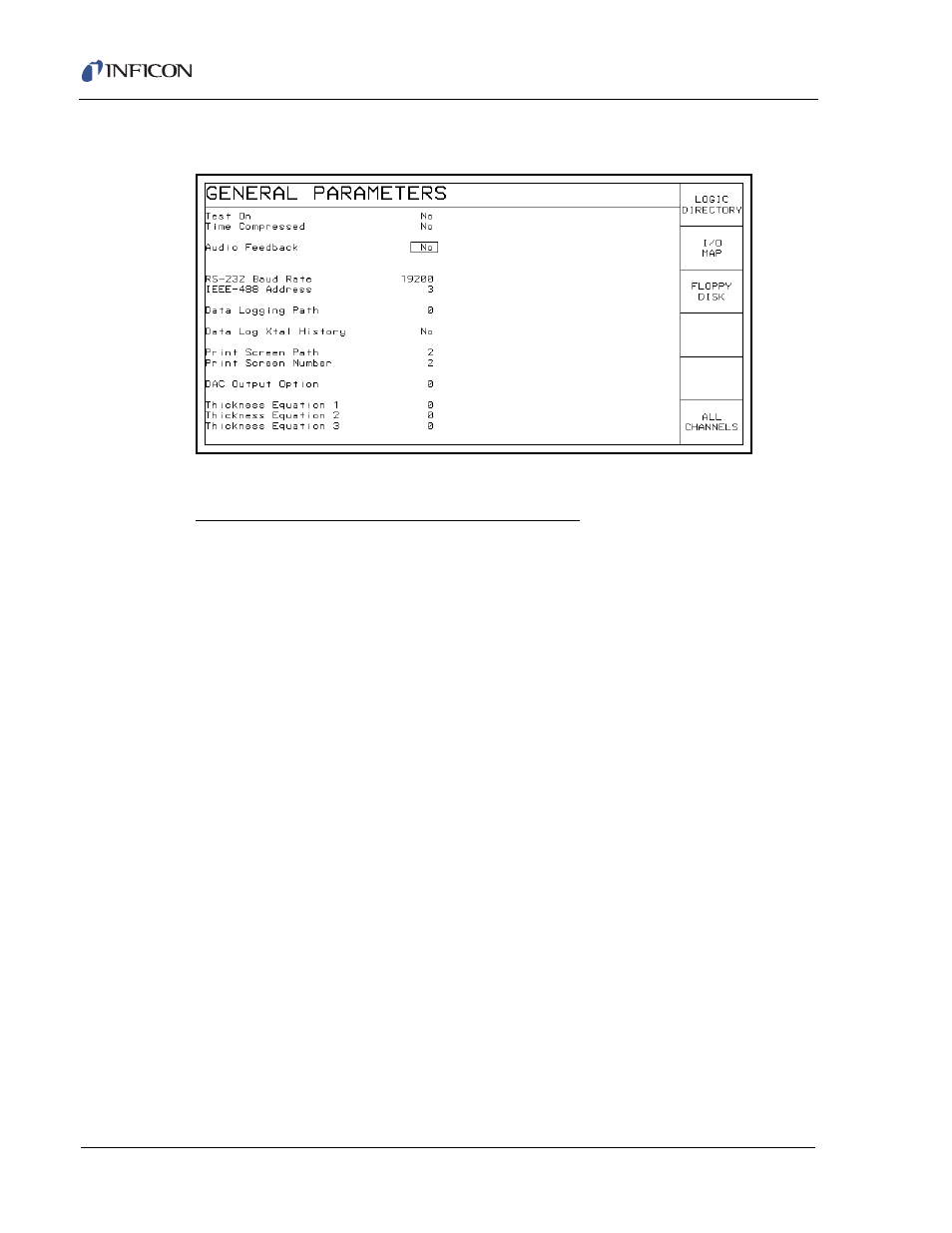

Figure 2-5 GENERAL PARMATERS Display
See Chapter 4 for a detailed description for programming the General Parameters.
GENERAL PARAMETER Display Function Keys
F1 LOGIC DIRECTORY
For a display that facilitates selection of Logic Statements for editing, press
function key F1.
F2 I/O MAP
To view the I/O MAP display, press function key F2. Provides access to a
display where inputs or outputs may be assigned names and where the output
type may be designated as normally open or normally closed.
F3 FLOPPY DISK
To view the files currently stored on the floppy disk, press function key F3.
Saves or retrieves parameters to or from floppy disk.
F6 ALL CHANNELS
To return to the ALL CHANNELS display, press function key F6.
