Cygnus Operating Manual
4.7 Floppy Disk

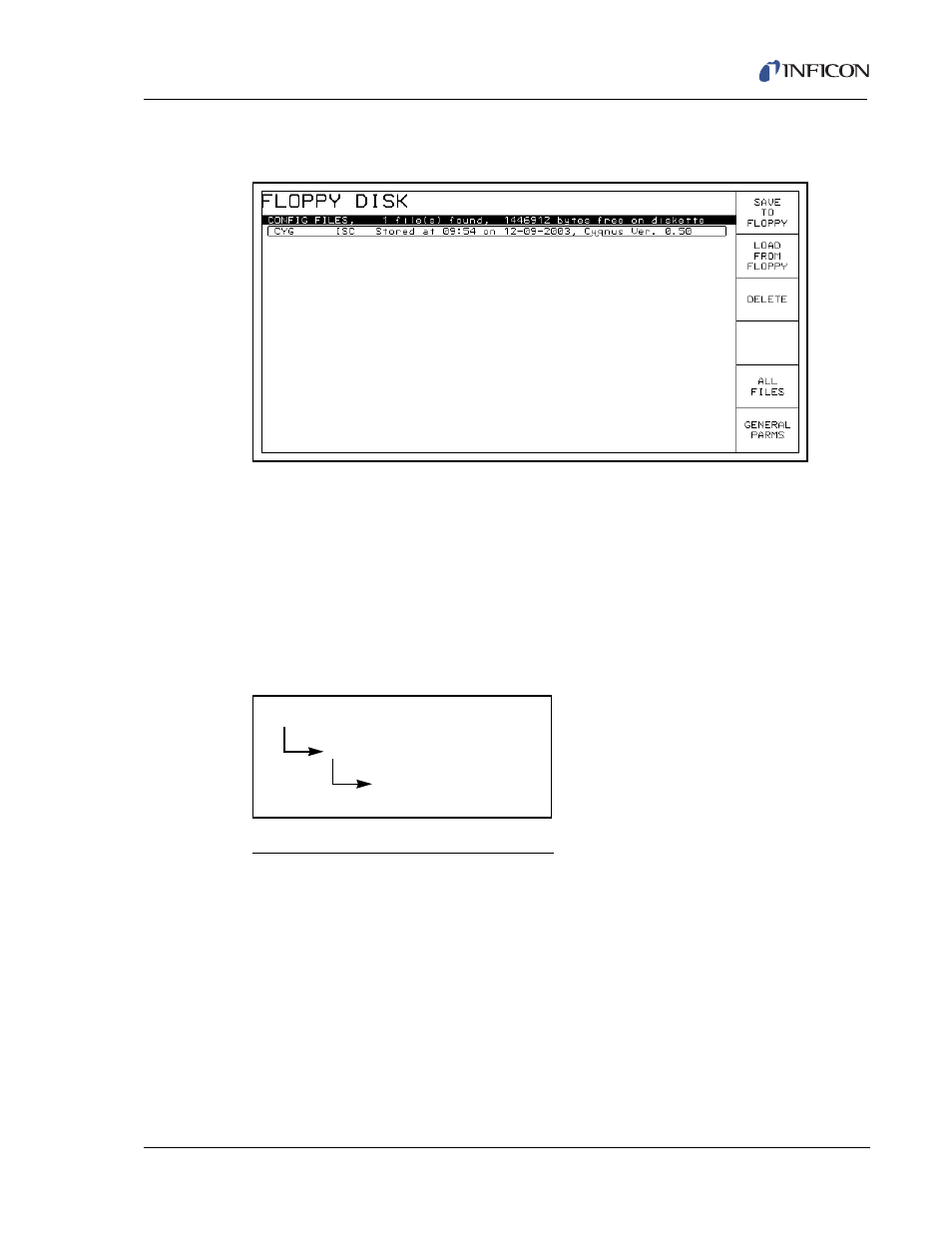

Figure 4-13 Floppy Disk Display
Parameters can be saved to and loaded from the diskette by going to the FLOPPY
DISK display. This screen is reached by going from the General Parameters
display to the Floppy Disk display (F3).
Upon entering this display a directory of all the Cygnus configuration files contained
on the diskette is displayed and the following key selections are available. The box
cursor can be positioned around any of the Configuration Files by moving the
cursor arrows. Left and Right correspond to Page Up and Page Down. The Up and
Down arrows will move the box cursor one position.
Figure 4-14 Display Tree for the Floppy Disk Display
FLOPPY DISK Display Function Keys
F1 SAVE TO FLOPPY
Pressing this key will select the Configuration File contained within the box
cursor and prompt the user to “Save the file FILENAME.ISC?”. At this time the
filename may be changed. The filename is changed using the Up and Down
arrow keys to scroll through the Alphanumeric listing A through Z, 0 through 9,
and the characters: _, !, #, +, -, %, & and . at the reverse video box cursor
position or using the Right and Left arrow keys to position the reverse video box
cursor.
ALL CHANNELS
GENERAL PARAMETERS
FLOPPY DISK
