Allied Telesis AT-WL2411 - Manual (Page 89)

AT-WL2411 Version 1.80 Installation and User’s Guide
89
Configuring
Global RF
Parameters
Use global RF parameters to set various parameters on the access points.
If you are configuring the root access point and you set the Set Globally
parameter to Enabled, the value for that parameter is set globally for all
access points and wireless end devices in the network. If you are
configuring the root access point and you set the Set Globally parameter
to Disabled or if you are not configuring the root access point, each
device uses its local setting.
To configure global RF parameters, perform the following procedure:
1. From the Main Menu, select Spanning Tree Settings then Global RF
Parameters. The Global RF Parameters screen as shown in Figure 31
is displayed.

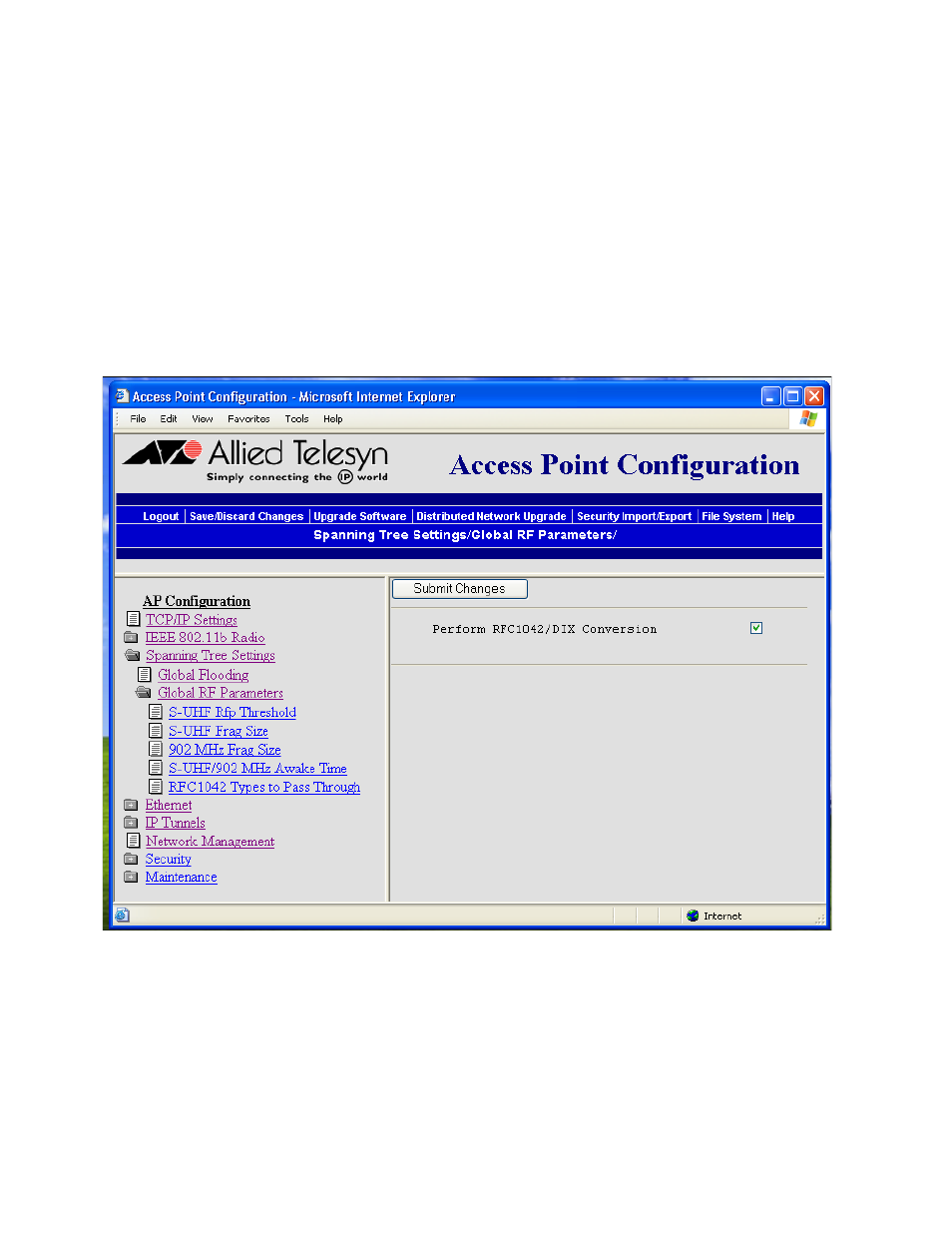

Figure 31 Global RF Parameters Screen
2. Configure the GLOBAL RF Parameters. Select the links in the Global RF
Parameters Menu to set more parameters. The parameters are
explained below.
