AT-WL2411 Version 1.80 Installation and User’s Guide
71
1. From the Main Menu, select Ethernet and then Customizable
Subtype Filters. The Customizable Subtype Filters screen as shown
in Figure 25 is displayed.

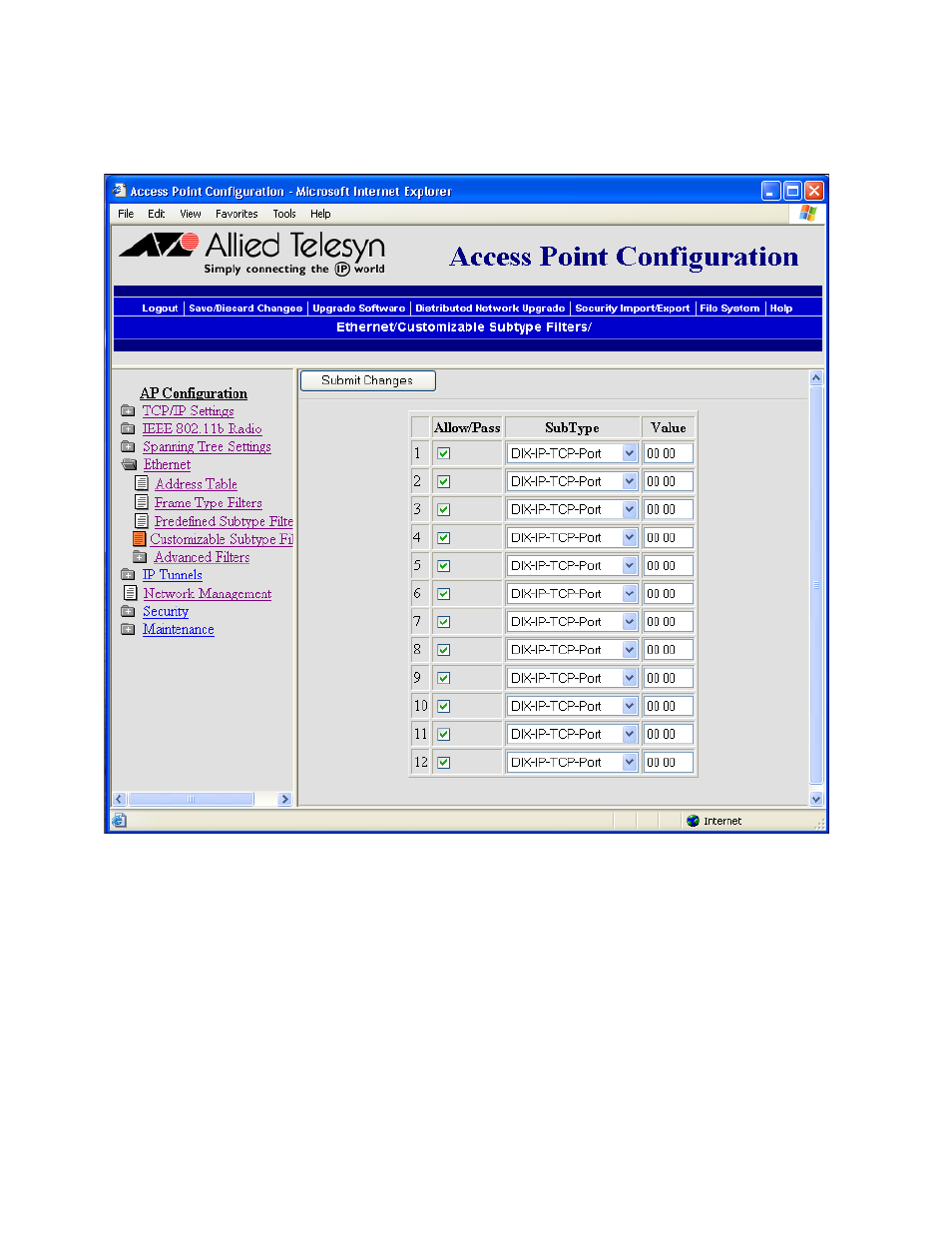

Figure 25 Customizable Subtype Filters Screen
2. Check or uncheck the boxes under the Allow/Pass field to choose
Allow or Pass.
3. Selet the down arrow on the right side of the SubType field and
choose the customizable frame subtype. The frame subtype filters
and their values are defined below.
DIX-IP-TCP-Port
Port value in hexadecimal.
