AT-WL2411 Version 1.80 Installation and User’s Guide

69

4. Select Submit Changes to save your changes. To activate your

changes, select Save/Discard Changes from the menu bar and then
Save Changes and Reboot. For help, see

Saving Your Configuration

Changes

on page 46.

Using

Predefined

Subtype Filters

You can configure the access point to pass or drop certain predefined
frame subtypes.

To configure predefined subtype filters, perform the following
procedure:

1. From the Main Menu, select Ethernet and then Predefined Subtype

Filters. The Predefined Subtype Filters screen as shown in Figure 24
is displayed.

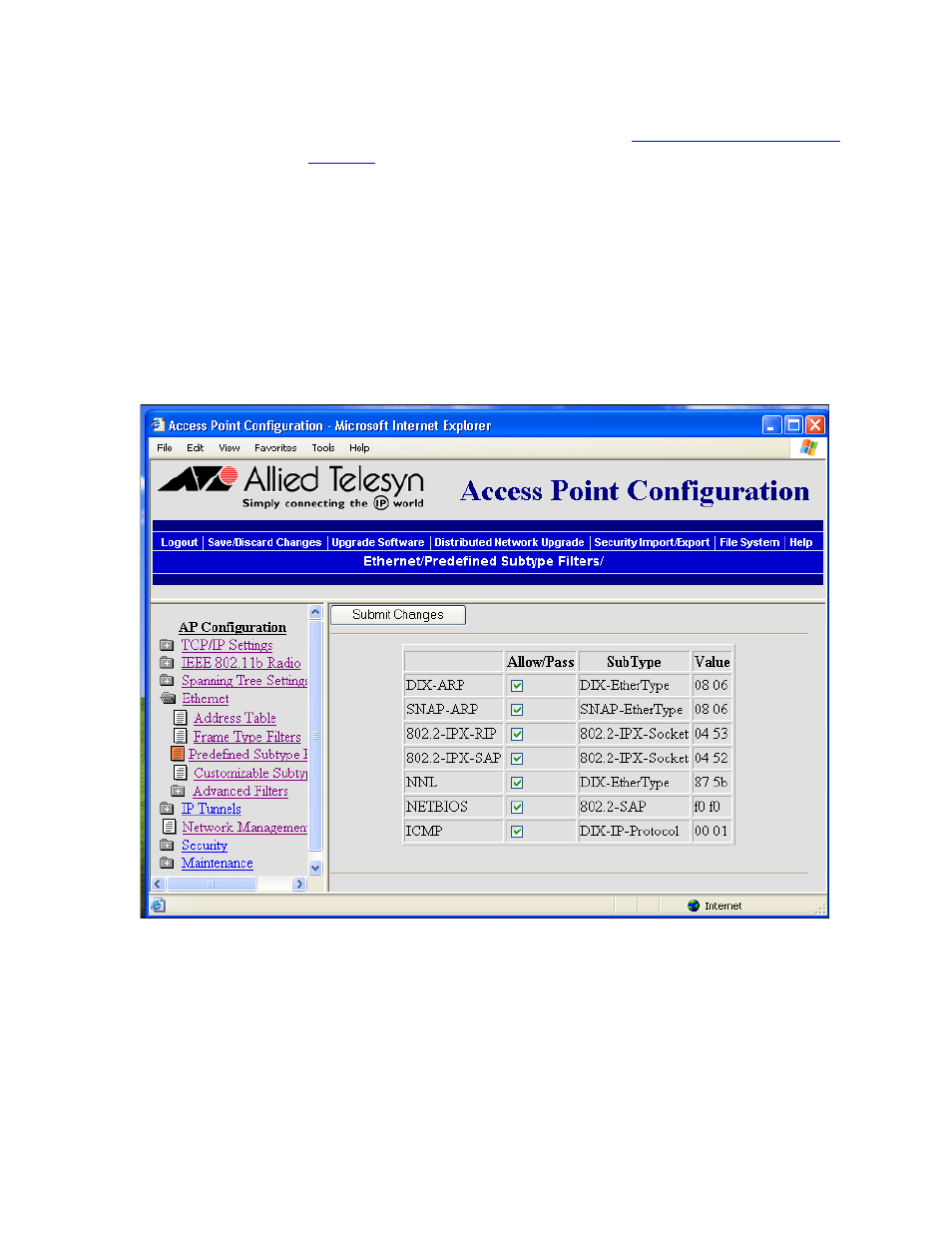

Figure 24 Predefined Subtype Filters Screen

2. In each Allow/Pass field, check or uncheck the boxes to choose Allow

or Pass.
