Allied Telesis AT-WL2411 - Manual (Page 170)

Access Point Maintenance
170
Using a Web
Browser
Interface
You can use a Web browser interface to upgrade the access point one at
a time. In other words, for each access point you want to upgrade, you
will need to establish a Web browser session with it, upgrade the
firmware, save the new configuration, and reboot it.
To upgrade the access point software, perform the following procedure:
1. Establish a Web browser session with the access point you want to
upgrade.

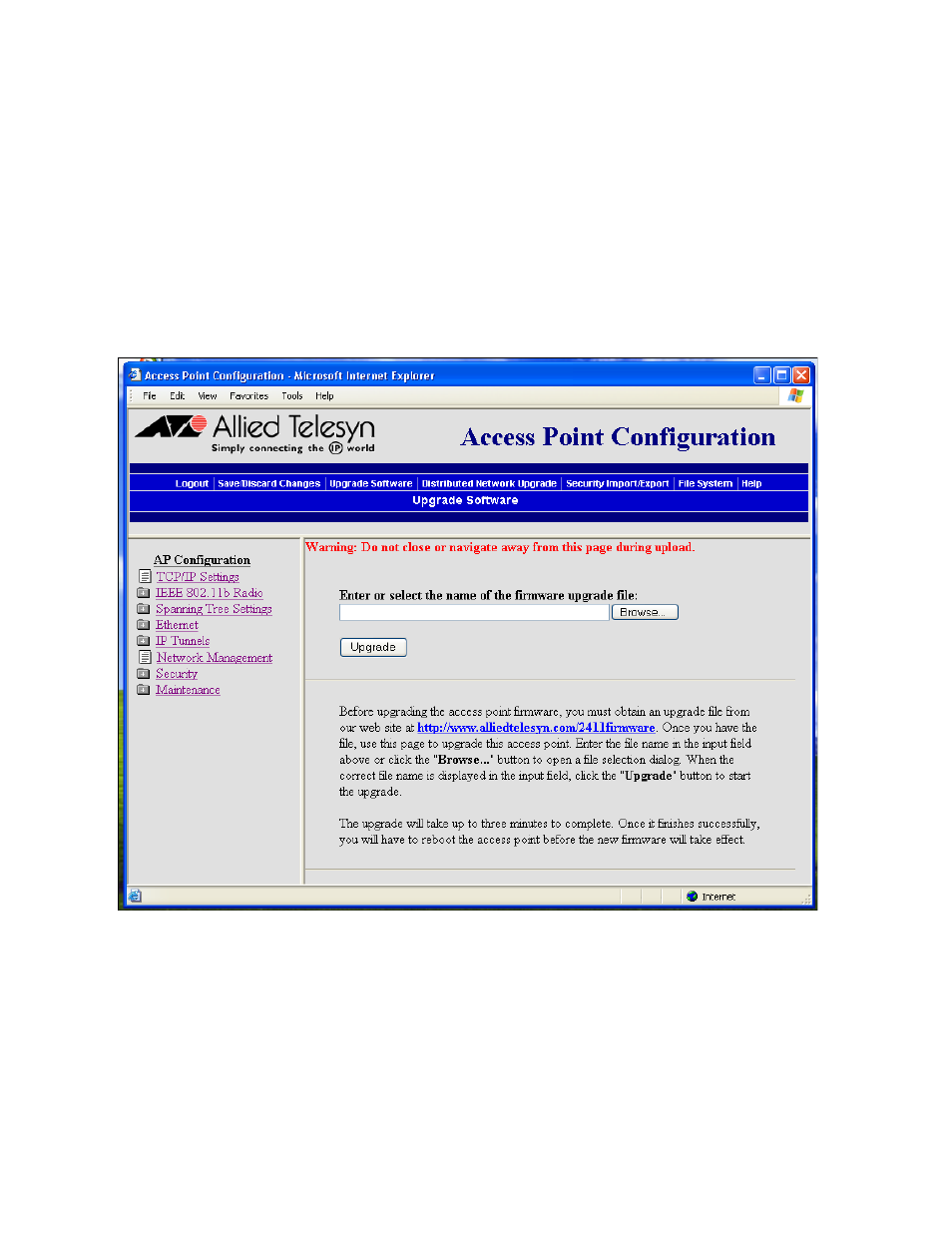

2. From the menu bar, select Upgrade Software. The Upgrade
Software screen, as shown in Figure 66 is displayed.
Figure 66 Upgrade Software Screen
3. Enter the path and firmware of the upgrade file (AP*WEB.BIN) or
click the Browse button to find the file on your PC.
4. Click Upgrade to start the upgrade. The upgrade may take up to
three minutes to complete.
