AT-S85 and AT-S97 Management Software Command Line Interface User’s Guide
37
Required Modules
To be part of a stack, the master chassis in the stack must have the
AT-MCF2000M Management Module installed. See Figure 5. In addition,
each member chassis in the stack must have the AT-MCF2000S Stacking
Module installed. See Figure 6.
Both modules are installed in the management module slot on the front
panel of the chassis. For installation instructions, see the AT-MCF2000M
Management Module Installation Guide and the AT-MCF2000S Stacking
Module Installation Guide.

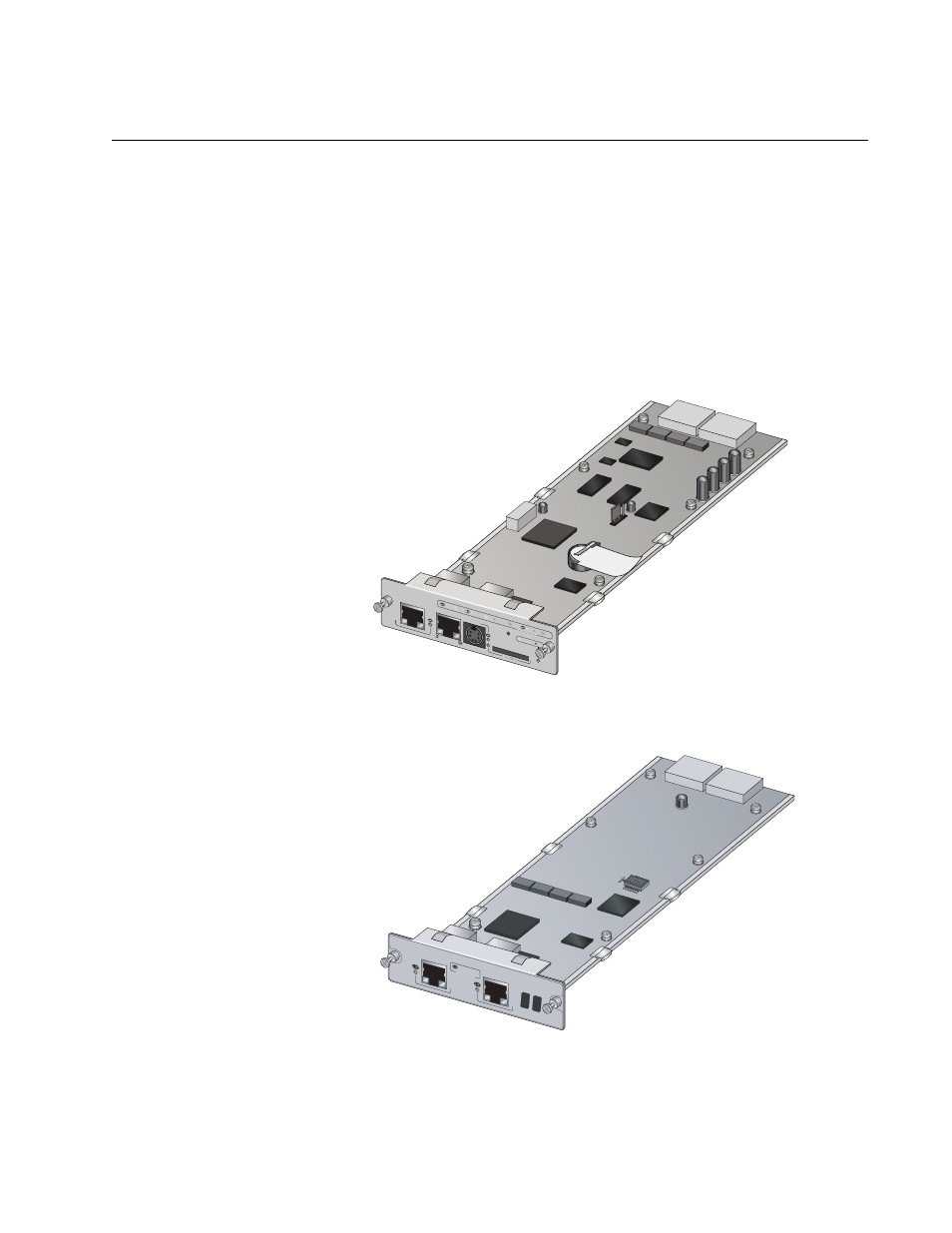

Figure 5. AT-MCF2000M Management Module
Figure 6. AT-MCF2000S Stacking Module
AT-MCF2
000M
STACK
MANAG EMENT
TERMIN AL
10/100/1 000BAS E-T
RS-232
RESET
SD
RDY BUSY MASTE R POWER
BOO T RDY FAULT
1000 LIN K ACT 10/1 00 LIN K ACT
FDX HDX COL
LINK ACT
PORT A CTIVIT Y
1198a
AT-MCF2000S
STACK 1
LINK
ACT POR T ACTIVITY STACK 2
CHAS SIS ID
1264
