Viewing System RCFC Ports
To view system Remote Copy over Fibre Channel (RCFC) port information:
1.
Access the Ports screen.
2.
In the Management Window, click the RCFC tab.

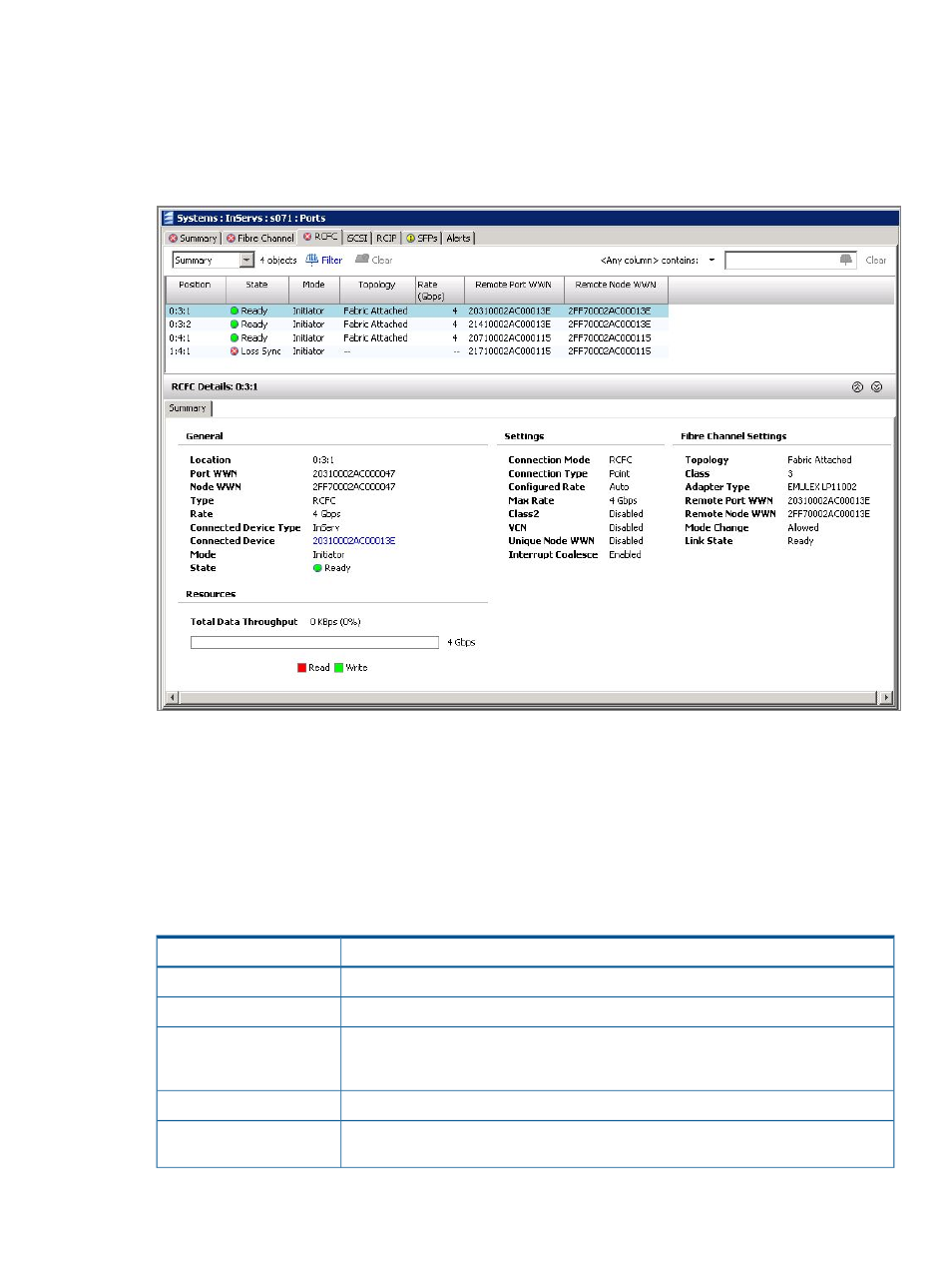

The RCFC tab appears as follows:
The RCFC tab is divided into an upper pane and a lower pane. The upper pane displays a summary
of all RCFC ports in the system. The lower pane displays detailed information about a single port
selected from the upper pane.
Upper Pane
The upper pane presents the following information:
Description
Column
The port location in node:slot:port format.
Position
The state of the port. See
“System and Component Status Icons” (page 41)
.
State
Port firmware mode setting. Ports in Initiator mode are connected to drive cages and
ports in Target mode export to hosts. Suspended mode is for target ports that have not
yet been initialized by the system (rare). Peer mode is for Ethernet ports.
Mode
Type of connection (Private Loop, Public Loop, or Point-Point).
Topology
Rate that data can be transferred over the port (1 Gbps, 2 Gbps or 4 Gbps). When
there is no specified value, no connection exists.
Rate
