20 Working with Drive Cages
“Viewing Drive Cages” (page 71)
“Editing Drive Cages” (page 83)
“Locating Drive Cages” (page 83)
“Editing Drive Cage Power Supplies” (page 84)
Viewing Drive Cages
The Drive Cages screen displays summary information about system drive cages and drive cage
components.
To access the Drive Cages screen:
1.
Click Systems in the Manager Pane.
2. In the Management Tree, select Drive Cages under the system whose drive cage information
you wish to view.
The Drive Cages screen provides four tabs, Summary, Power Supplies, SFPs, and Alerts. For
information about each, see:
“Viewing the Drive Cage Summary” (page 71)
“Viewing Drive Cage Power Supplies” (page 74)
“Viewing Drive Cage SFPs” (page 74)
“Viewing Drive Cage Alerts” (page 76)
Additionally, you can view drive cage details. See:
“Viewing Drive Cage Details” (page 77)
Viewing the Drive Cage Summary
To view the Drive Cage Summary screen:
1.
Access the Drive Cages screen.
2. In the upper pane, click the Summary tab.

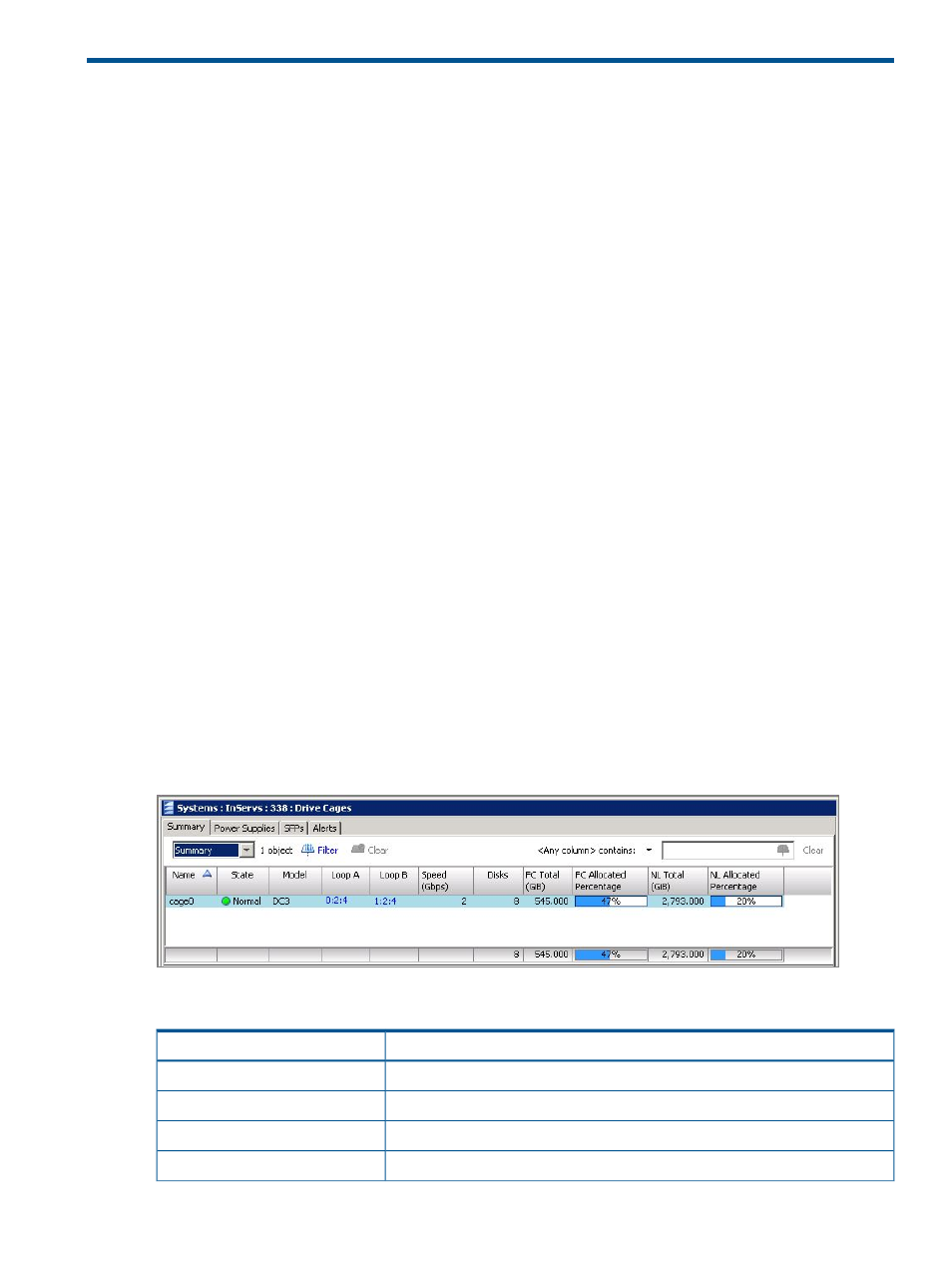

The Summary tab appears as follows:
The Summary tab provides the following information:
Description Column
The drive cage name. Name
The drive cage state. See “System and Component Status Icons” (page 41) . State
The drive cage model. Model
The port on the system to which the A loop is connected. Loop A
Viewing Drive Cages 71
