Description Column
Controller node initiator port connected to drive cage port A0. A0 Port
Controller node initiator port connected to drive cage port A1. A1 Port
Controller node initiator port connected to drive cage port A2. A2 Port (for DC3 drive cages)
Controller node initiator port connected to drive cage port A3. A3 Port
(for DC3 drive cages)
Controller node initiator port connected to drive cage port B0 . B0 Port
Controller node initiator port connected to drive cage port B1. B1 Port
Controller node initiator port connected to drive cage port B2. B2 Port (for DC3 drive cages)
Controller node initiator port connected to drive cage port B3. B3 Port
(for DC3 drive cages)
Indicates whether the drive cages are daisy chained. Daisy Chained
Viewing Drive Cage Capacity
To view drive cage capacity information, select Capacity from the filter list.

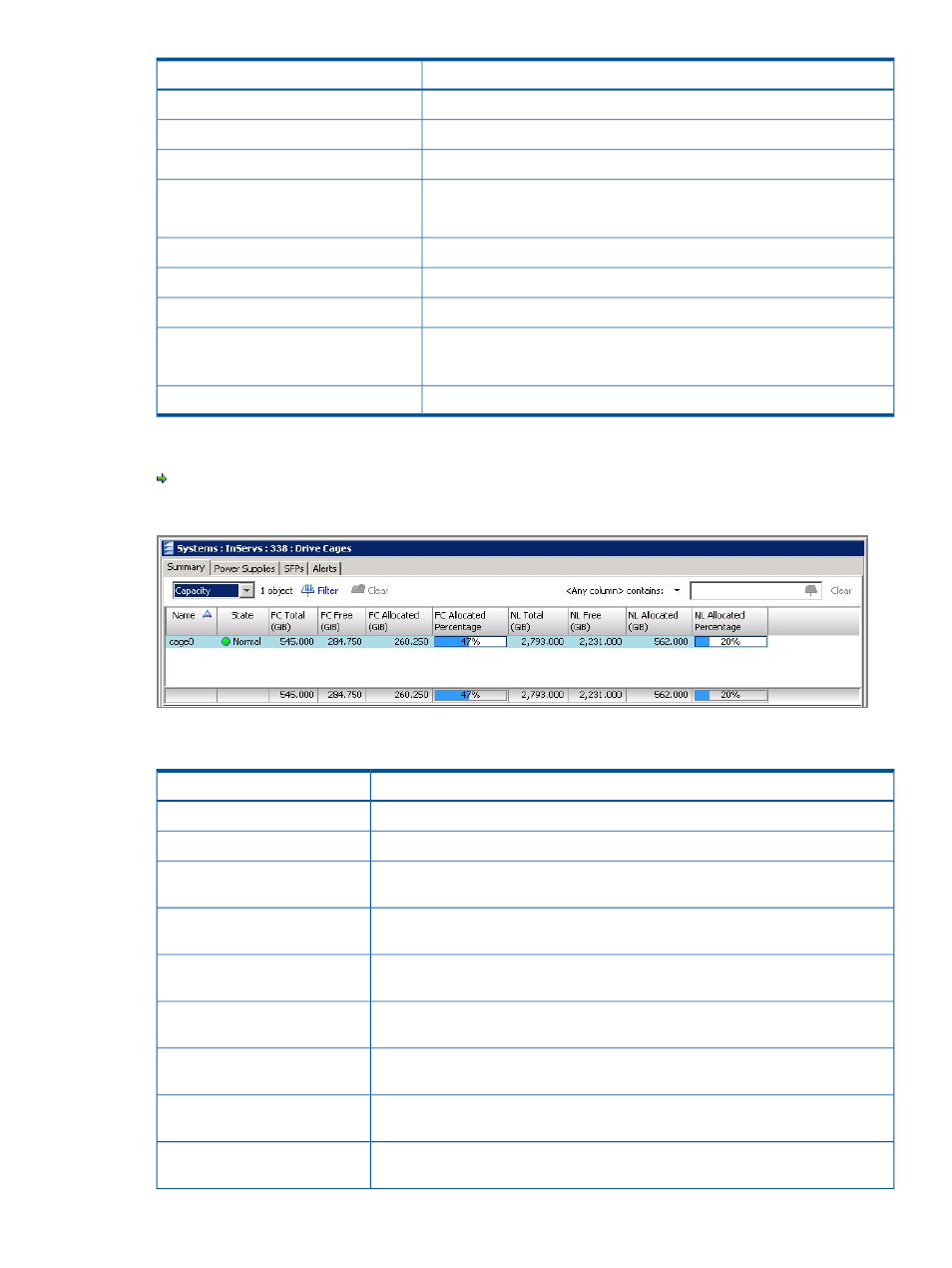

The Capacity summary appears as follows:
The following information is provided:
Description Column
The drive cage name. Name
The drive cage state. See “System and Component Status Icons” (page 41) . State
The total Fibre Channel capacity in GiB. The bottom of the FC Total column displays
total FC capacity. FC Total
The amount of free Fibre Channel space in GiB. The bottom of the FC Free column
displays total free FC capacity. FC Free
The amount of allocated Fibre Channel space in GiB. The bottom of the FC Allocated
column displays total allocated FC capacity. FC Allocated
The percentage of used Fibre Channel capacity. The bottom of the FC Allocated
Percentage column displays the total used percentage. FC Allocated Percentage
The total SSD capacity in GiB. The bottom of the SSD Total column displays total
SSD capacity. SSD Total
The amount of free SSD space in GiB. The bottom of the SSD Free column displays
total free SSD capacity. SSD Free
The amount of allocated SSD space in GiB. The bottom of the SSD Allocated column
displays total allocated SSD capacity. SSD Allocated
