Management Tree
The Management Tree displays information relevant to the selected manager from the “Manager
Pane” (page 18) . At its most basic, the Management Tree displays which storage servers are
connected to the InForm Management Console. Additional icons displayed on the Management
Tree are specific to the manager selected. For example, in the figure below, the Management Tree
displays icons specific to the Systems manager. The Management Tree also has shortcut menus
that contain useful commands.

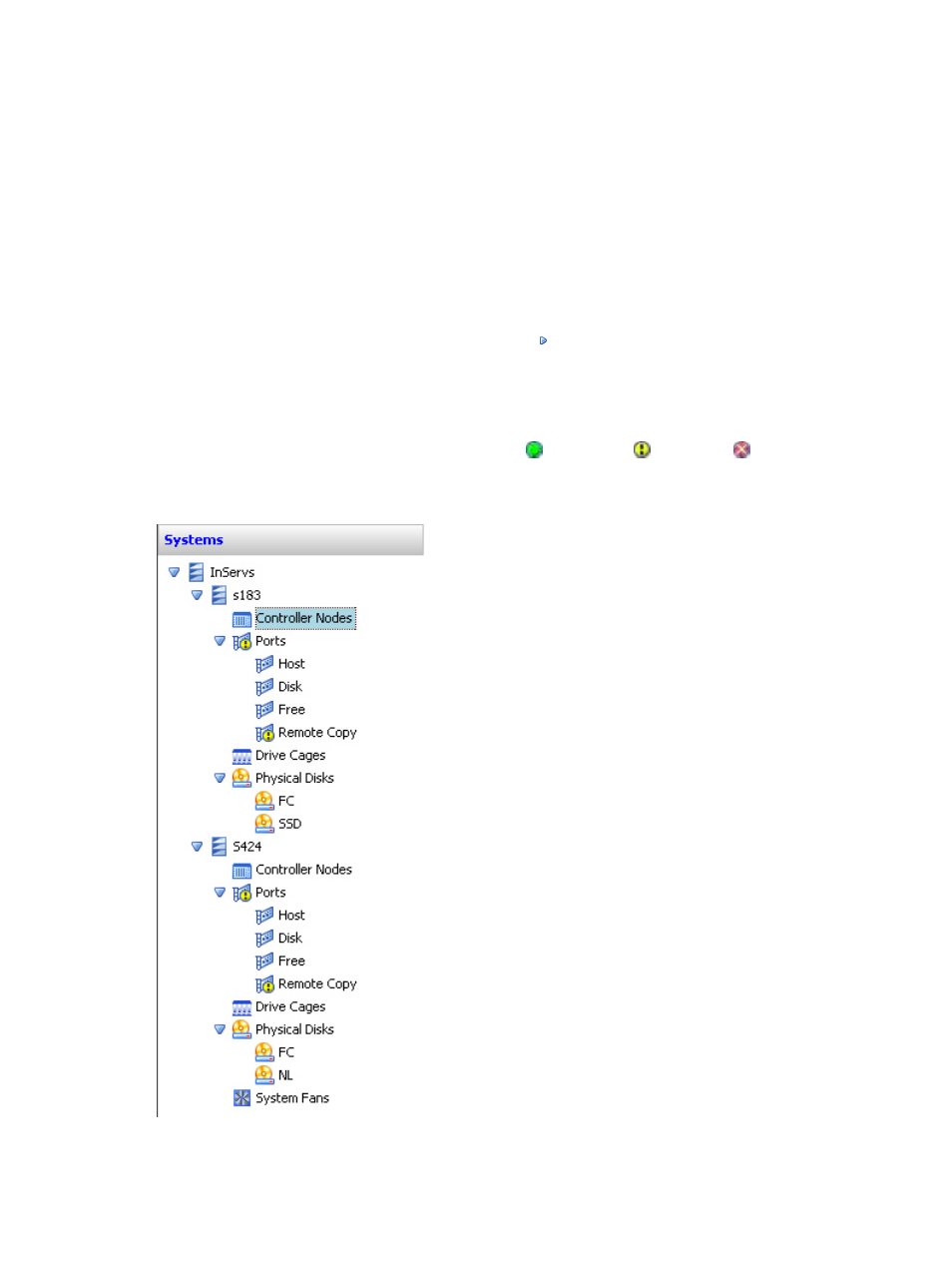

Management Tree Structure
When you click an icon on the Management Tree, the associated data is displayed in the
“Management Window” (page 24) . For example, if you click the Ports icon, information about a
system's ports is displayed.
Each icon displayed with an expandable triangle ( ) to its left is called a node. An expandable
triangle also indicates that that node can be expanded to display additional information. The
Management Tree nodes are displayed in a parent/child relationship. For example, in the figure
below the connected storage servers (s183 and S424) are displayed as child nodes of the InServs
parent node. Ports and Physical Disks are further displayed as child nodes of the connected servers.
Also included for quick visual reference, Normal , Degraded , or Failed status icons are
displayed in the tree to quickly identify systems or related system components that may require
attention.
Components of the Interface 17
