Description
Column
World Wide Name of the remote port.
Remote Port WWN
World Wide Name of the remote node.
Remote Node WWN
Lower Pane
The lower pane provides detail information about a selected RCFC port from the upper pane.
Information is presented on a Summary tab, and depending on your system setup, an SFP tab.
Each are discussed in detail in the following:
“RCFC Port Summary” (page 100)

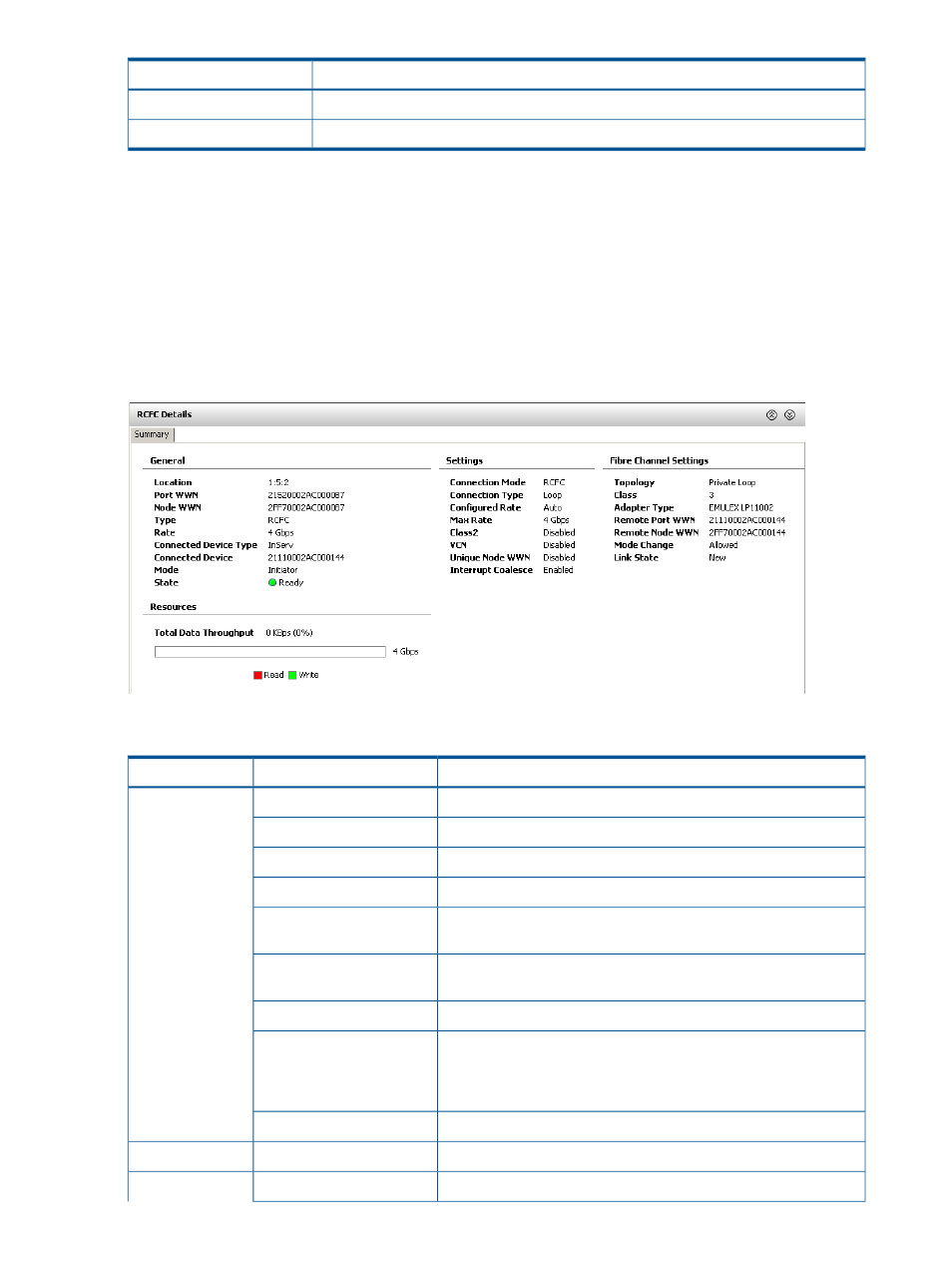

RCFC Port Summary
The RCFC port summary is displayed on the Summary tab.
The following information is provided:
Description
Field
Group
Port location.
Location
General
Port World Wide Name.
Port WWN
Node World Wide Name.
Node WWN
Indicates whether the port is FC, iSCSI, RCIP, or RCFC.
Type
Rate that data can be transferred over the port (1 Gbps, 2 Gbps or
4 Gbps). When there is no specified value, no connection exists.
Rate
Type of device that the port is connected to. Free, Disk, Host, Peer,
or InServ.
Connected Device Type
Name of device that the port is connected to, e.g. host1, cage0.
Connected Device
Port firmware mode setting. Ports in Initiator mode are connected to
drive cages and ports in Target mode export to hosts. Suspended
Mode
mode is for target ports that have not yet been initialized by the
system (rare). Peer mode is for Ethernet ports.
Current state of the port.
State
The throughput in KB/sec.
Total Data Throughput
Resources
The type of port connection.
Connection Mode
Settings
