Recommended Disk Array Configurations 79
T
opo
logy
and
Ar
ra
y
Pla
nnin
g
• Data Availability
– Not recommended for maximum high availability.
– Handles a single disk failure, single BCC failure, a single channel failure, or a single
controller failure
– Expansion requires powering down the disk array, removing terminators and/or
cables from the enclosures, and cabling additional disk enclosures.
• Disk Capacity
– Maximum capacity 730 GBytes
– Usable capacity 365 GBytes

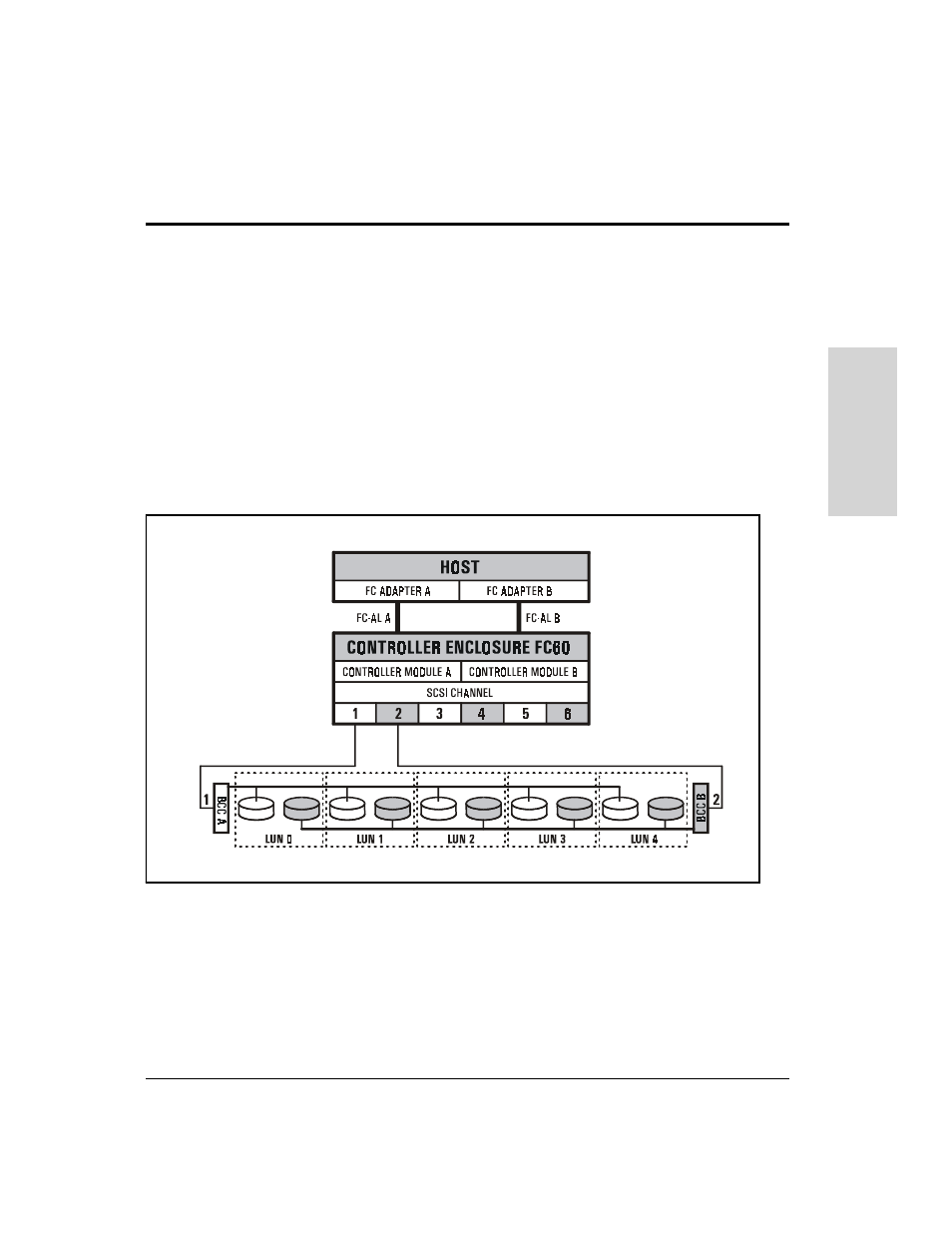

Figure 24 One Disk Enclosure Array Configuration
