HP Surestore Disk Array 12h and FC60 - Manual (Page 199)

Applying Power to the Disk Array 199
Inst
alla
tion

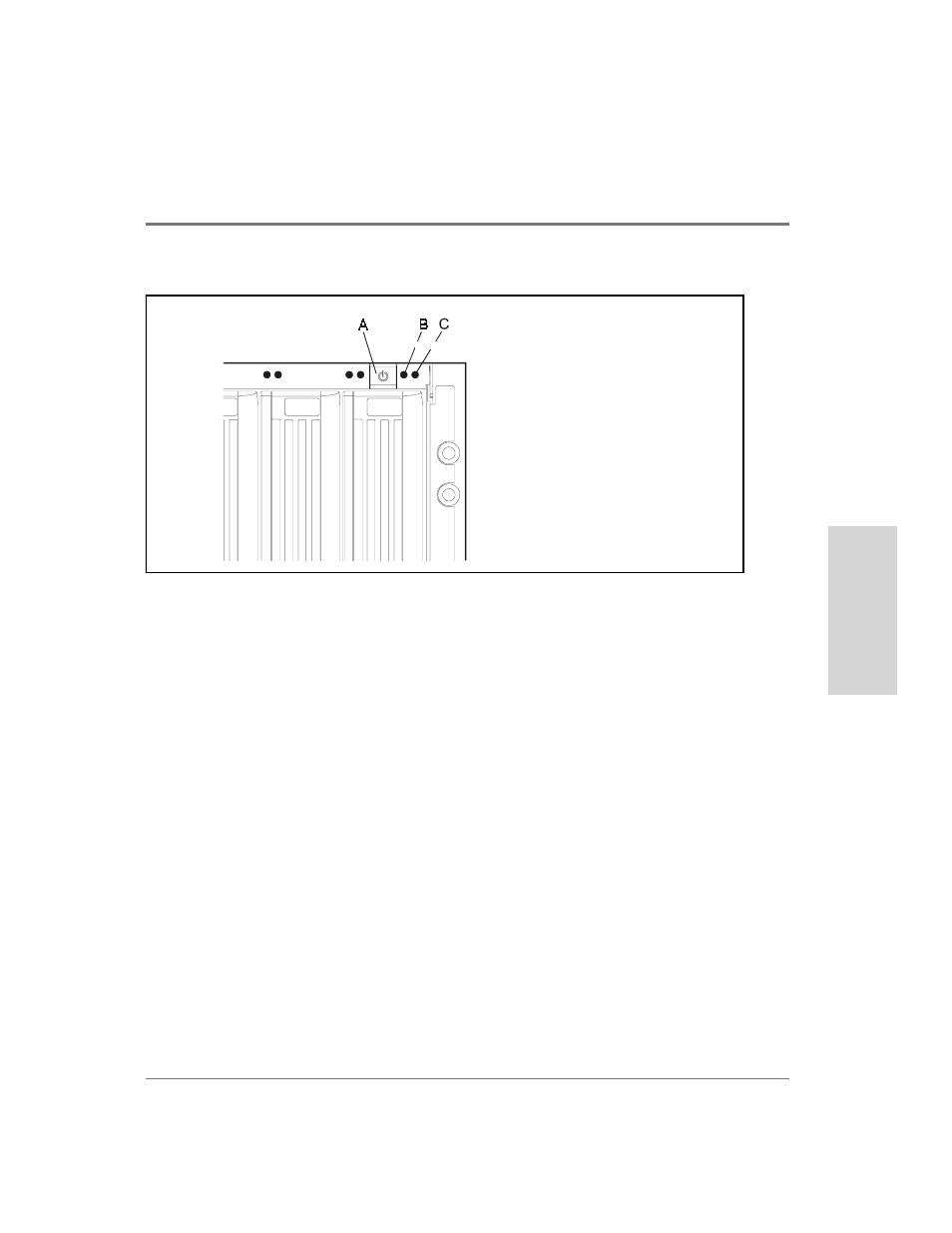

Figure 75 Disk Enclosure Power Switch and System LEDs
3. Check the LEDs on the front of the disk enclosures (see Figure 77 ). The System Power
LED (B in Figure 75 ) should be on and the Enclosure Fault LED (C) should be off.
It is normal for the Enclosure Fault LED (amber) to go on momentarily when the
enclosure is first powered on. However, if the Enclosure Fault LED remains on, it
indicates that a fault has been detected. Refer to
"Troubleshooting" on page 359 for
additional information.
4. Power up the controller enclosure using both power switches on the back of the
enclosure (see Figure 76 ).
