404 Controller Enclosure Modules

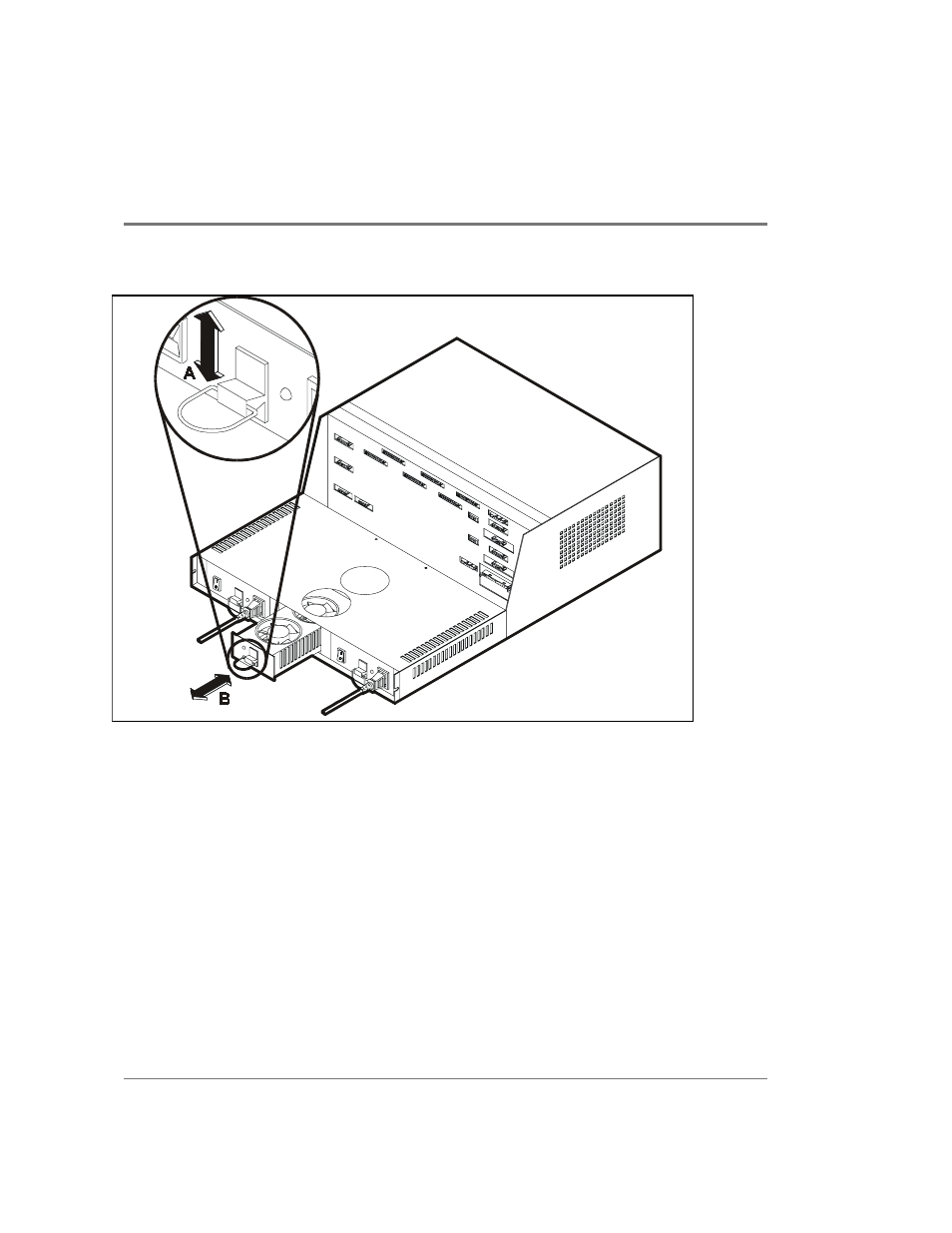

Figure 103 Power Supply Fan Module Removal and Replacement
Installing the Power Supply Fan Module
1. Slide the power supply fan module into the enclosure. The latch will snap down when
the module is seated properly. If the latch remains up, lift up on the ring/latch and push
in on the module until it snaps into place.
2. Check the module LEDs for the following behavior:
– The green Fan Power LED should be on and the amber Fan Fault LEDs should be off.
If the Power LED remains off or the Fault LED turns on, make sure the power supply
fan module is inserted all the way into the chassis and locked in place. If the Fault
LED remains on, the new power supply fan module may be malfunctioning, refer to
Chapter 6, Troubleshooting .
