406 Controller Enclosure Modules

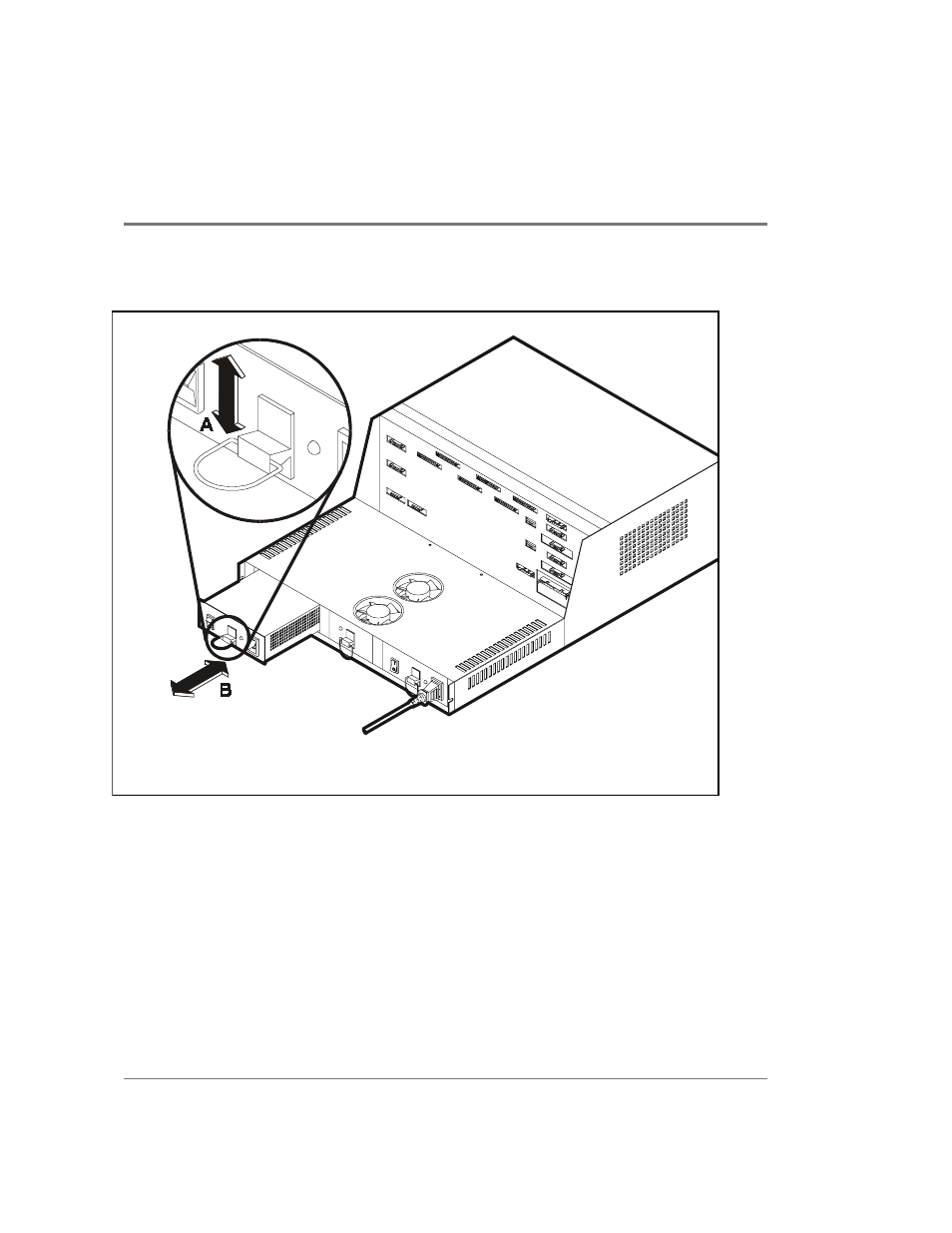

Figure 105

Power Supply Module Removal and Replacement

Installing the Power Supply Module

1. Slide the supply into the slot until it is fully seated and the latch snaps into place.

2. Plug in the power cord and turn on the power. See

Figure 104

.

3. Check the power supply module LED for the following behavior:

– The Power LED should go on. Once the power supply in installed and operating,

there may be a delay of up to several minutes before the Power Fault LED goes off.
