Installing the Disk Enclosures 167
Inst
alla
tion
1. Open the disk enclosure door.
2. Put on the ESD strap (provided with the accessories) and insert the end into the ESD
plug-in (D in Figure 60 ) near the upper left corner of the disk enclosure.
C AUTION
Disks are fragile. Handle them carefully.
3. Remove the bagged disk from the disk pack.
C AUTION
Do not touch exposed circuit board side of the disk module.
4. Remove the disk from the ESD bag, grasping the disk by its handle (B).
5. Using a pencil, mark an “X” on the Slot Location Map label (A in Figure 61 ), located on
the top of the disk module. This mark identifies the disk slot the disk module should be
installed in case it is removed. It is important to return a disk to its same location to
maintain disk module addressing used by some FC60 software applications.

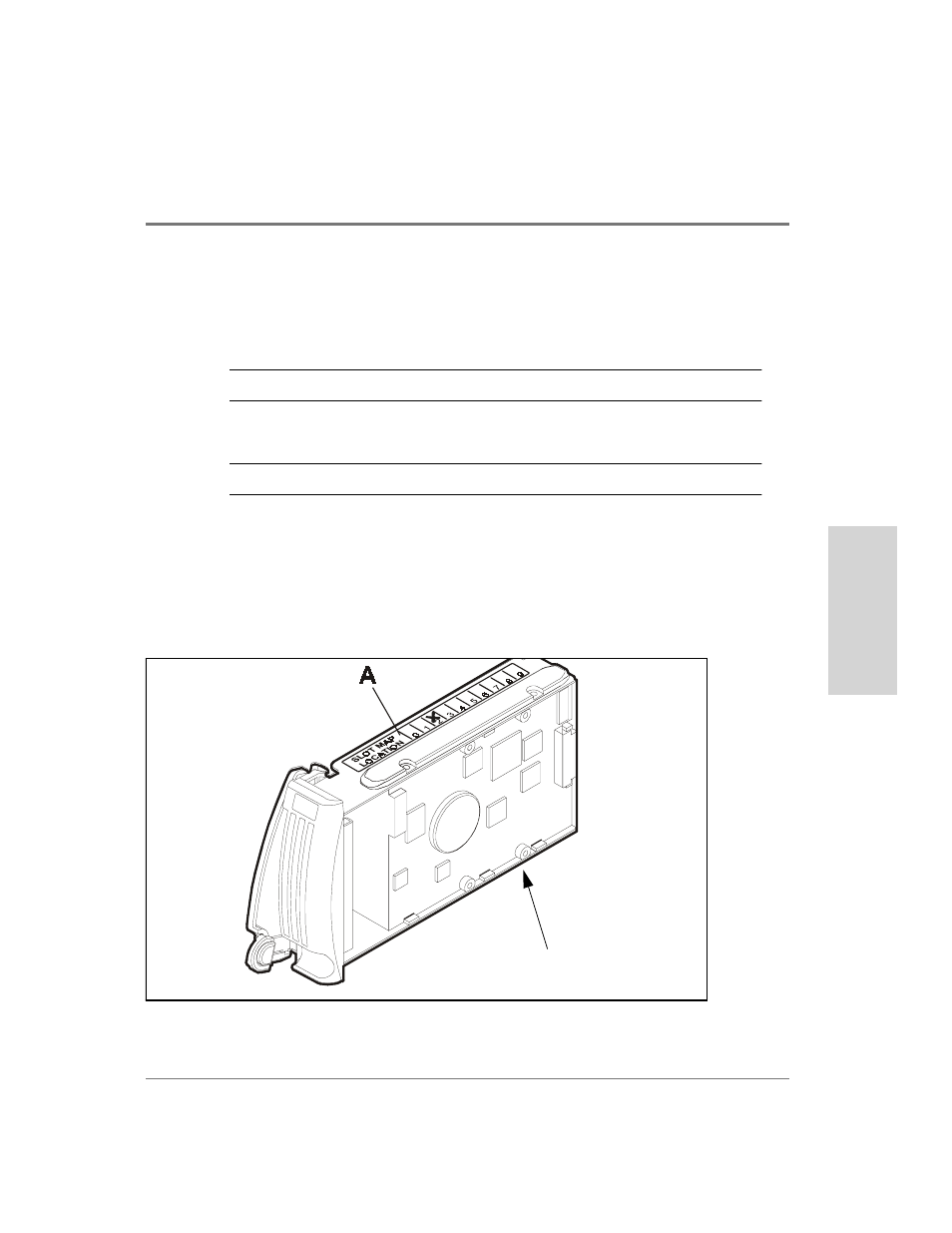

Figure 61 Disk Module Slot Location Map Label
Do Not Touch
