SureStore E Disk System SC10 Troubleshooting 377
T
roubl
esh
ooting

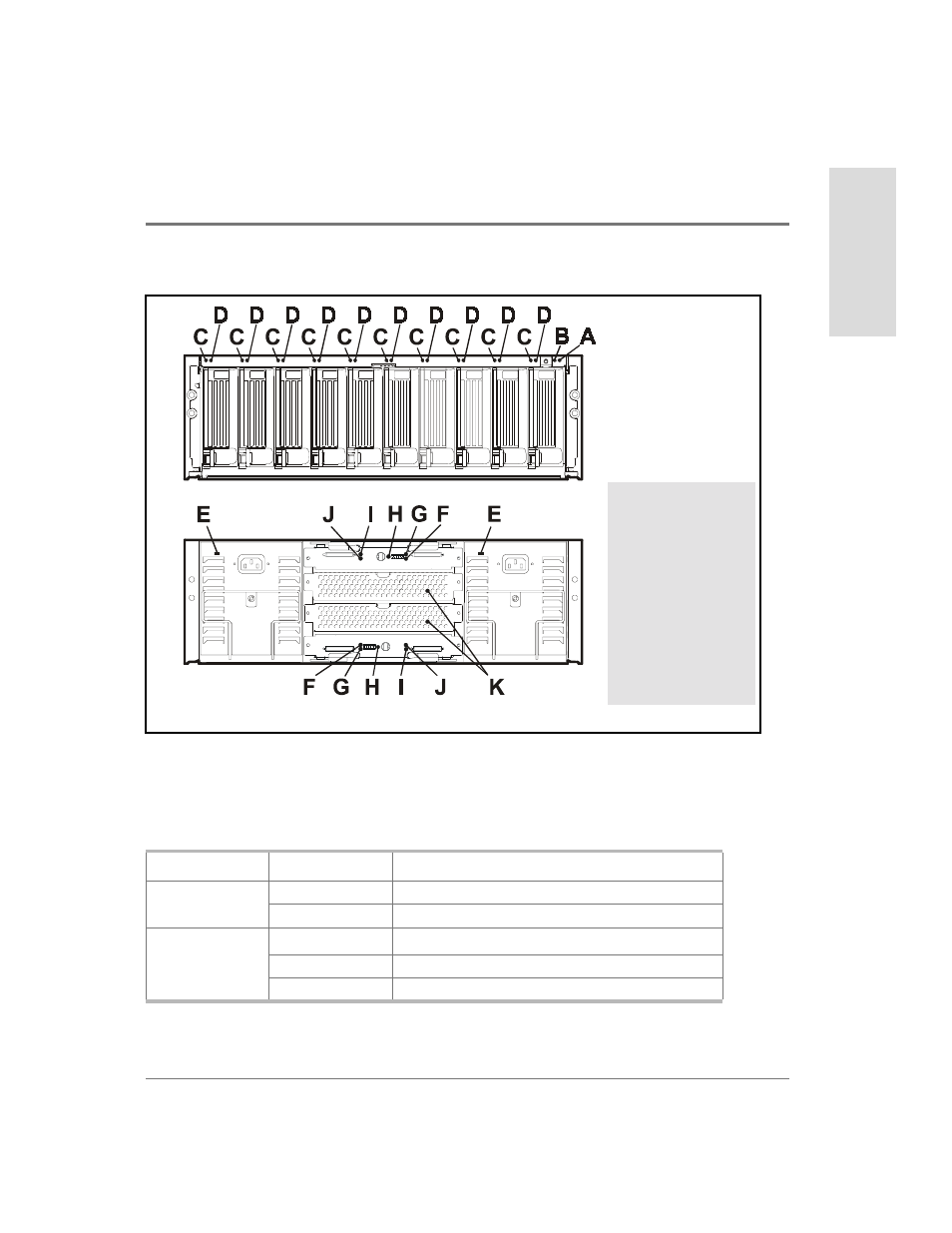

Figure 93 Disk Enclosure LEDs
Table 50 Disk Enclosure LED Functions
LED State Indication
System Power Green Power is on. Normal operation.
OFF Power is off
System Fault Amber
Self-test
1
/ Problem
2
OFF Normal operation
Flashing BCC A & B DIP switch settings do not match
A System fault LED
B System power LED
C Disk activity LED
D Disk fault LED
E Power On LED
F Term. Pwr. LED
G Full Bus LED
H BCC Fault LED
I Bus Active LED
J LVD LED
K Fan Fault LED
