2. HDLM Functions

15

2.6 Distributing a Load Using Load Balancing

When the system contains multiple paths to a single LU, HDLM can distribute the load

across the paths by using multiple paths to transfer the I/O data. This function is called

load balancing, and it prevents a single, heavily loaded path from affecting the

performance of the entire system.
Figure 2-5: Flow of I/O Data When the Load Balancing Function Is Not Used shows

the flow of I/O data when the load balancing function is not used. Figure 2-6: Flow

of I/O Data When the Load Balancing Function Is Used shows the flow of I/O data

when the load balancing function is used. Both figures show examples of I/O
operations being issued for the same LU by multiple applications.

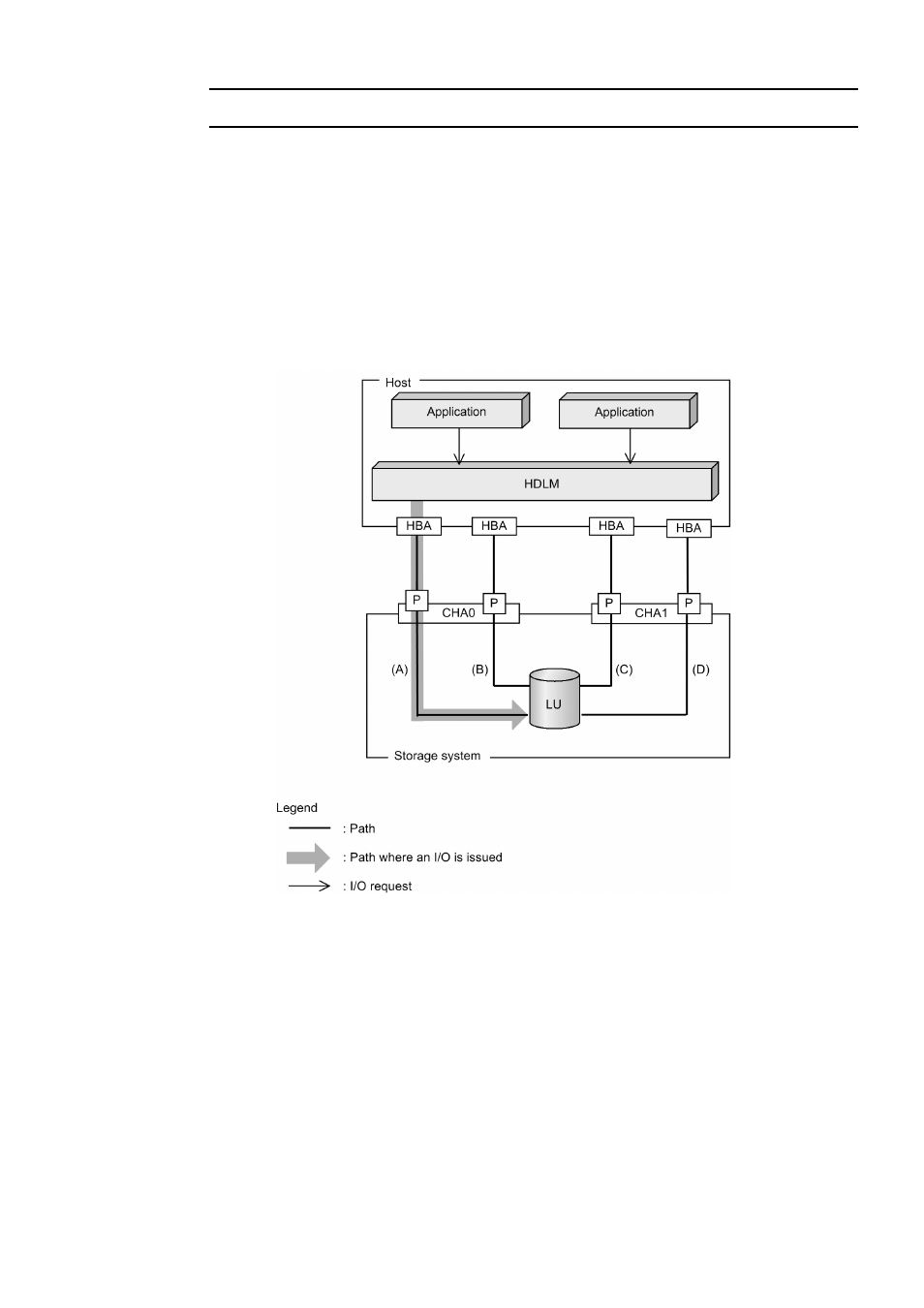

Figure 2-5: Flow of I/O Data When the Load Balancing Function Is Not Used
