2. HDLM Functions

10

2.3 LU Configuration

On a system using HDLM, the logical device file for the HDLM management-target

device is used to access the target LU.
An LU recognized by a host after HDLM installation, is called a host LU (HLU). The

areas in a host LU that correspond to the Dev in a storage system LU are called host

devices (HDev).
An LU in the storage system corresponds one-to-one with a host LU, a host device, or

an hdisk.
Figure 2-2: LU configuration of the host where HDLM is installed and

correspondence with an hdisk shows the LU configuration recognized by a host, after

the installation of HDLM.

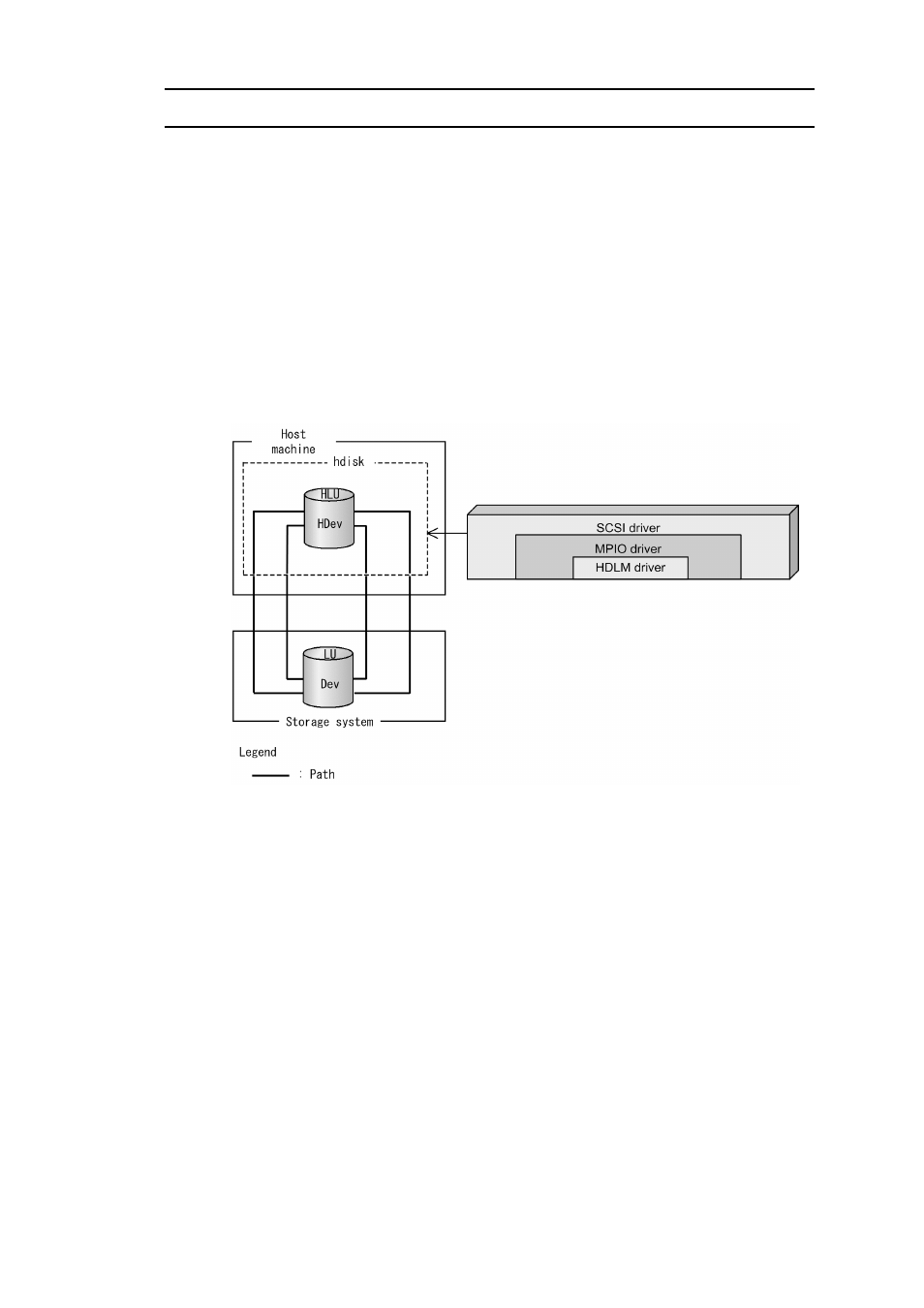

Figure 2-2: LU configuration of the host where HDLM is installed and

correspondence with an hdisk

Table 2-2: Components recognized by the host lists the components recognized by the

host.
