All Storage/My Storage Operations 99

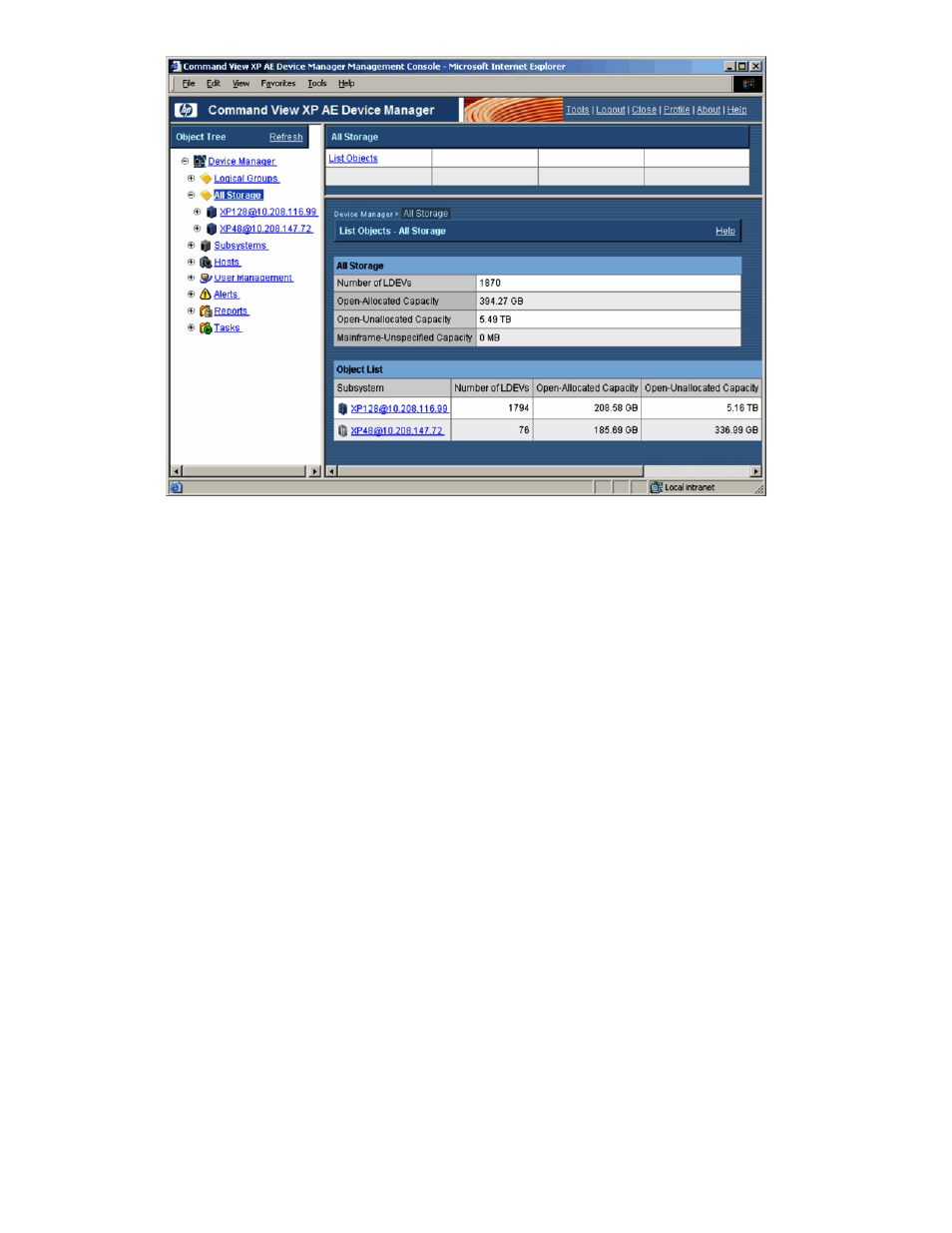

Figure 8-1 All Storage or My Storage
• Number of LDEVs = total number of LDEVs in the All Storage or My Storage group (including all storage
subsystems)
• Open-Allocated Capacity* = total capacity of the LDEVs in the All Storage/My Storage group with paths
set on open volumes
• Open-Unallocated Capacity* = total capacity of the LDEVs in the All Storage/My Storage group without
paths set on open volumes
• Mainframe-Unspecified Capacity* = total capacity of the mainframe volume in the All Storage/My Storage
group.
• The Object List lists the storage subsystems in the All Storage/My Storage group and displays the name,
number of LDEVs, open-allocated capacity, open-unallocated capacity and mainframe-unspecified
capacity for each storage subsystem.
When the All Storage/My Storage object is expanded, Device Manager displays a group for each storage
subsystem available to the logged-in user. When a storage subsystem group under the All Storage or My
Storage object is selected, the information frame displays the following information for the subsystem, as
shown in
Figure 8-2 .
• Name = name of the storage subsystem
• Number of LDEVs = total number of LDEVs/LUs in the storage subsystem
• Configured capacity* = total capacity of the LDEVs/LUs in the storage subsystem (allocated and
unallocated)
• The Object List lists the Open-Allocated and Open-Unallocated groups for the storage subsystem and
displays the number of LDEVs and capacity for each group. For StorageWorks XP Disk Array, information
is also displayed for the Mainframe-Unspecified group.
